In the plywood manufacturing process, stable and efficient heat delivery is essential for veneer drying, glue curing, and hot pressing. Finned tube thermal oil radiators are widely used as the primary heat exchange equipment in veneer dryers due to their high thermal efficiency, long service life, and compatibility with thermal oil heating systems.
Below is an overview of their design, performance advantages, and application benefits in plywood production lines.
What Are Finned Tube Thermal Oil Radiators?

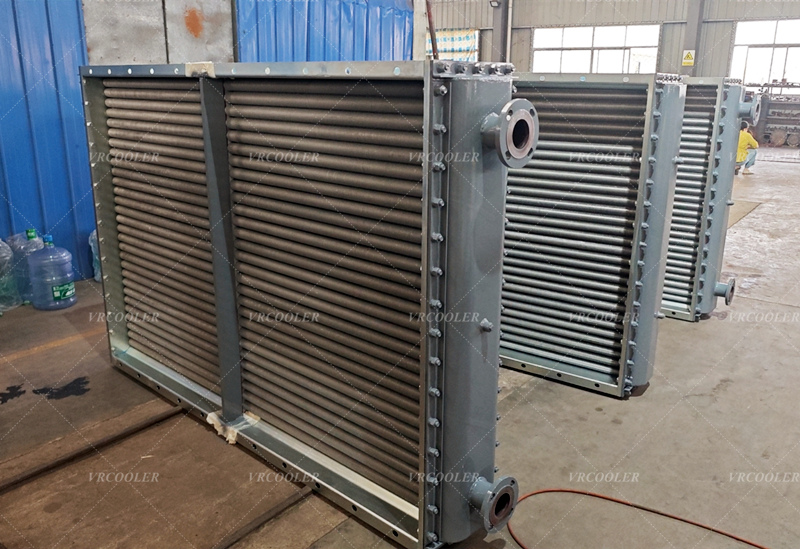

A finned tube thermal oil radiator is a heat exchanger consisting of high-strength steel tubes with helically wound fins. Hot thermal oil flows through the tubes while air is blown across the finned surface. The fins greatly increase heat transfer area, allowing the radiator to deliver high thermal energy efficiently into the dryer chamber.
These radiators are designed for high temperature, continuous operation, and dusty wood-processing environments.
Why Plywood Factories Use Thermal Oil Radiators
1. Stable and Uniform Drying Temperature
Plywood drying requires controlled airflow and precise temperature stability to avoid veneer defects such as cracking, blistering, or uneven moisture content.
Thermal oil radiators ensure:
Constant heat supply
Smooth temperature control from 120–250°C
No fluctuation during peak load
2. High Heat Transfer Efficiency
The finned tube design increases the effective heating surface by 5–10 times. This allows powerful heat exchange even in compact dryer chambers.
Benefits include:
Faster veneer drying
Improved dryer throughput
Lower energy consumption per cubic meter of plywood produced
3. Compatible with Thermal Oil Heating Systems
Plywood plants commonly use thermal oil boilers due to:
High-temperature capability
Low operating pressure
Safety and reliability
The radiators integrate easily into these heating loops.
4. Durable in Harsh Wood-Dust Environments
Finned tube thermal oil radiators are built for industrial reliability:
High-strength carbon steel or alloy steel tubes
Anti-corrosion coatings
Heavy-duty welded headers
Resistance to thermal expansion and vibration
They perform consistently even with continuous 24/7 operation.
Key Technical Features
Operating temperature: 120–300°C
Tube material: Carbon steel / Alloy steel / Stainless steel
Fin type: Spiral-wound steel fins or extruded aluminum fins
High thermal efficiency with compact footprint
Multiple passes, modular designs for various dryer sizes
Custom fin pitch, tube diameter, and header configuration
