Finned Tube Steam Heat Exchanger for Above Ground Storage Tanks

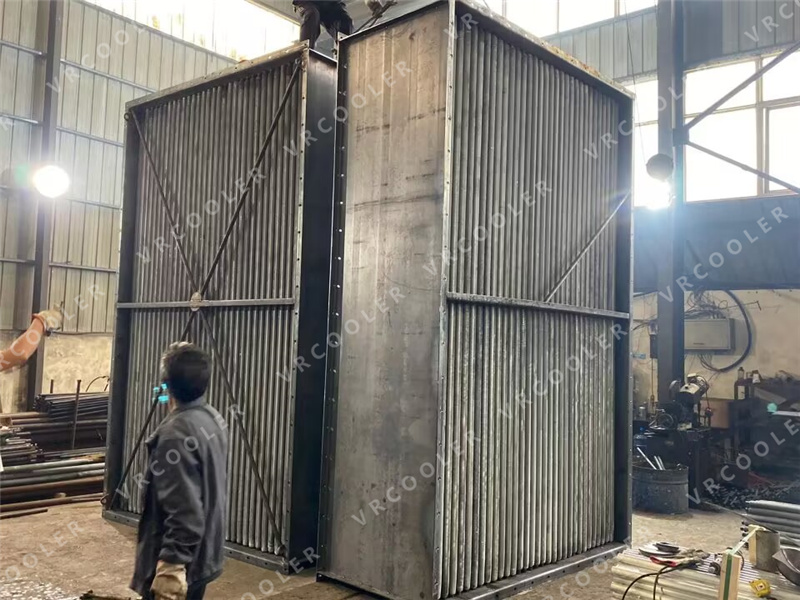

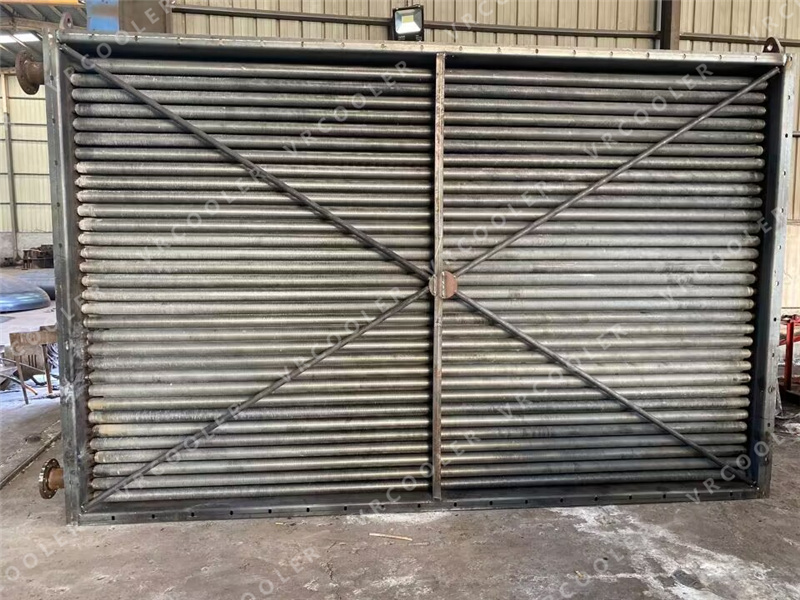

Vrcooler's Finned Tube Steam Heat Exchanger for Above Ground Storage Tanks for a US customer has been completed and is ready for shipment.

The Finned Tube Steam Heat Exchanger is a device used to transfer heat in industrial processes. Its design is based on the principle of finned tubes by transferring steam into them and then exchanging the heat with the surrounding air or other fluids. The following are the main features and working principles of finned tube steam heat exchangers:

Main components:

1. Finned Tubes: Finned tubes are the core component of this type of heat exchanger. They are usually made of metal tubes (e.g. copper or aluminium) with fins attached to them. These fins increase the surface area of the tubes and improve the heat exchange efficiency.

2. Steam inlet: Finned tube steam heat exchangers have a steam inlet to direct high temperature, high pressure steam into the pipework.

3. Heat exchange surface: Steam flows inside the finned tube and comes into contact with the fins, releasing heat energy.

4. Heat Exchange Fluid Outlet: After heat exchange, cooled vapour or liquid is directed to the next stage of the process or system through the outlet.

5. Auxiliary Equipment: Depending on the specific application, the finned tube steam heat exchanger may include auxiliary equipment such as control valves, temperature sensors, cooling fans, etc. to ensure efficient operation of the heat exchange process.

The working principle of a finned tube steam heat exchanger involves the following steps:

1. Steam Entry Piping: High temperature, high pressure steam enters the steam inlet of the finned tube steam heat exchanger from the system.

2. Heat exchange: Steam flows through the finned tube and exchanges heat with the fins. This process causes the steam to cool and at the same time warms the fins. This is due to the relatively large surface area of the finned tubes, which contributes to efficient heat transfer.

3. Cooling Fluid Effluent: The cooled vapour or liquid exits through the heat exchange surfaces and can be used or further processed in subsequent industrial processes.

4. Steam after heat exchange: Steam usually enters the heat exchanger at a high temperature and pressure. After heat exchange, its temperature is reduced and its pressure may be lowered, making it suitable for specific industrial applications.

Finned tube steam heat exchangers are designed to maximise thermal efficiency. By using the increased surface area of the finned tubes and by forcing convection, they are able to transfer heat efficiently, cooling the hot steam and providing the thermal energy needed for other industrial processes.

This type of heat exchanger has a wide range of uses in many industrial and manufacturing applications, including heating systems, refrigeration systems, electric power generation, and chemical processes. Depending on the specific industrial needs, finned tube steam heat exchangers are available in a variety of sizes and designs to meet the heat exchange requirements.
