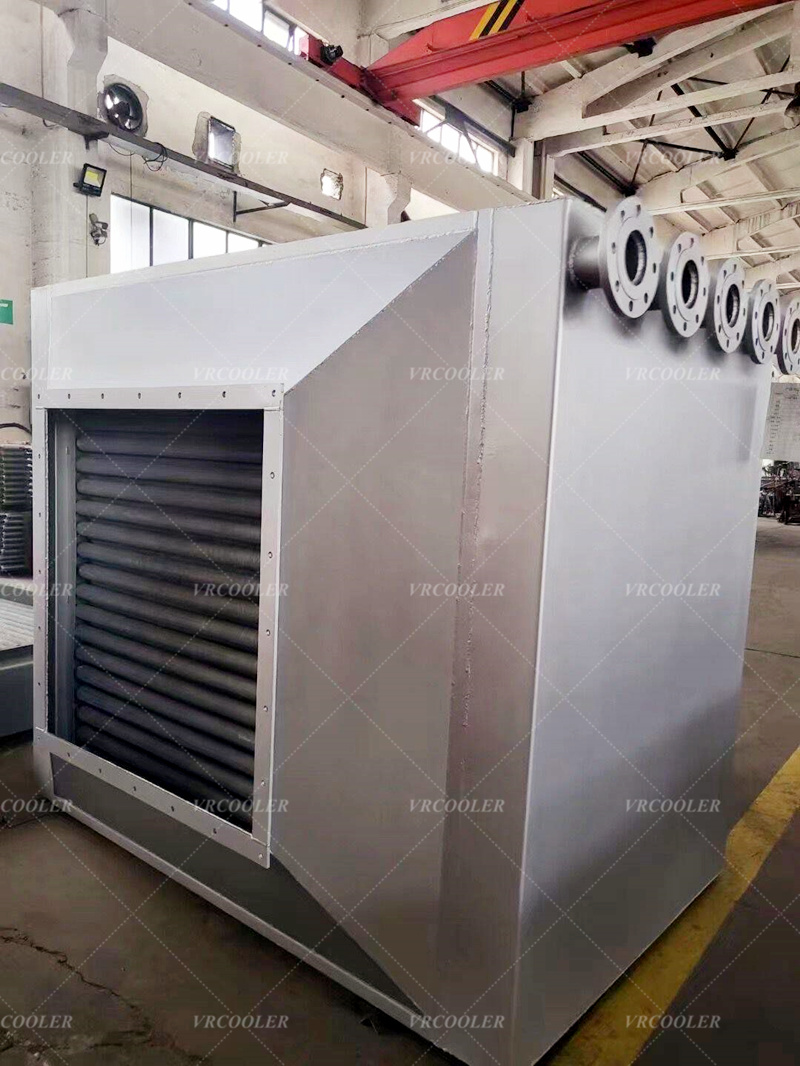

Finned Tube Heat Exchanger in Heat Recovery Systems

Finned Tube Heat Exchanger in Heat Recovery Systems

Finned tube heat exchangers are widely used in heat recovery systems to capture and reuse waste heat from various processes, thereby improving energy efficiency and reducing operational costs.

Here's a comprehensive overview of finned tube heat exchangers in heat recovery systems:

Design and Function

Components

Tubes:

Material: Typically made from metals with good thermal conductivity, such as copper, aluminum, or stainless steel.

Configuration: Tubes can be straight, U-shaped, or coiled depending on the application and space constraints.

Fins:

Material: Commonly made from aluminum or copper for high thermal conductivity.

Design: Fins can be plain, serrated, louvered, or wavy to increase surface area and enhance heat transfer by creating turbulence.

Tube-Fin Bonding:

Methods such as mechanical expansion, welding, or brazing are used to bond fins to the tubes, ensuring efficient heat transfer.

Operation

Heat Transfer: Waste heat from a hot fluid (gas or liquid) is transferred to a cooler fluid through the fins and tubes. The fins increase the surface area available for heat transfer, enhancing efficiency.

Fluid Flow: Typically, one fluid flows inside the tubes while the other flows over the fins and outside the tubes, either in a counterflow or crossflow configuration.

Applications

Industrial Processes

Boiler Flue Gas Recovery: Capturing waste heat from boiler flue gases to preheat combustion air or feedwater.

Exhaust Gas Recovery: Recovering heat from industrial exhaust gases in processes like metal smelting, chemical manufacturing, and food processing.

HVAC Systems

Ventilation Air Preheating: Using waste heat from exhaust air to preheat incoming fresh air in HVAC systems.

Heat Recovery Ventilators (HRVs): Transferring heat between exhaust and supply air streams to improve energy efficiency in building ventilation systems.

Power Generation

Combined Heat and Power (CHP): Recovering waste heat from power generation processes to produce additional electricity or provide heating.

Renewable Energy

Solar Thermal Systems: Enhancing the efficiency of solar thermal collectors by using finned tubes to capture and transfer solar energy more effectively.
