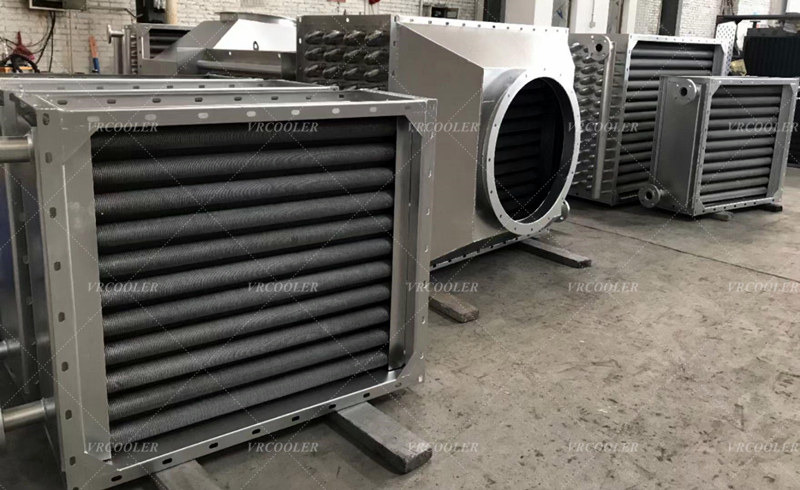

Finned Tube Heat Exchanger For A Flue Boiler
finned tube heat exchanger for a flue boilerA finned tube heat exchanger is an excellent choice for enhancing heat transfer in applications like flue gas recovery from boilers.
Overview of Finned Tube Heat Exchanger
Finned Tube Design:
Fins: Attached to the tubes to increase surface area for heat transfer. They help in transferring heat from the flue gas to the fluid inside the tubes (e.g., water or oil).
Tubes: Typically made of materials like copper, aluminum, or stainless steel, chosen for their thermal conductivity and corrosion resistance.
Key Components
Finned Tubes:
Designed to optimize heat transfer efficiency.
Various fin designs (e.g., plain, serrated, or spiral) can be used based on application needs.
Shell:
The outer casing that contains the finned tubes.
Must be robust enough to handle the pressure and temperature of the flue gas.
Inlet and Outlet Connections:
For both the flue gas and the heating medium, designed to optimize flow rates.
Supports and Baffles:
Supports to hold the tubes in place and baffles to promote flow and enhance heat transfer.
Design Considerations
Heat Load Calculation:
Determine the heat recovery potential from the flue gases.
Calculate the required size and number of finned tubes based on the heat load.
Material Selection:
Choose materials that can withstand high temperatures and corrosive flue gas environments.
Flow Arrangement:
Utilize counterflow or crossflow arrangements to maximize heat transfer efficiency.
Pressure Drop:
Design to minimize pressure drop across the heat exchanger to maintain boiler efficiency.
Cleaning and Maintenance:
Ensure easy access for cleaning, as flue gases can lead to fouling on the fins and tubes.
Temperature and Pressure Ratings:
Ensure that the heat exchanger can handle the maximum operating temperature and pressure of the system.
Applications
Boiler Efficiency Enhancement: Recovering heat from flue gases to preheat feedwater, improving boiler efficiency and reducing fuel consumption.
Emissions Control: Lowering the exhaust temperature can help in reducing emissions and improving overall environmental performance.
