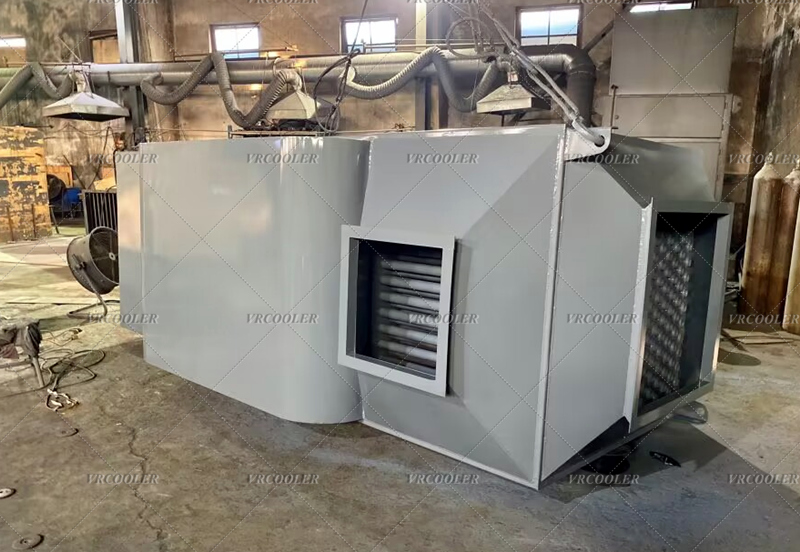

Economizer for Steam Boiler

Economizer for Steam Boiler

An economizer for a steam boiler is a crucial auxiliary component designed to enhance the boiler's thermal efficiency by preheating the feedwater using the heat from the boiler's exhaust gases.

Primary Functions of an Economizer

Heat Recovery: Extracts waste heat from flue gases (which would otherwise be discharged into the atmosphere) to raise the temperature of the feedwater before it enters the boiler drum.

Efficiency Improvement: By reducing the amount of heat required in the boiler to convert water into steam, the economizer lowers fuel consumption and operational costs.

Extended Boiler Life: Preheating the feedwater reduces thermal stress on the boiler tubes, as the water enters at a higher temperature, minimizing sudden temperature changes.

Working Principle

Heat Transfer Mechanism: The economizer consists of a bank of tubes through which feedwater flows inside, while hot flue gases from the boiler pass outside the tubes (in cross-flow or counter-flow configuration).

Counter-Flow Design: Most economizers use a counter-flow arrangement (water flows opposite to the flue gases) to maximize heat transfer efficiency, as this configuration creates the largest temperature difference between the two media.

Temperature Range: The feedwater temperature can be raised to within 10–20°C of the boiler’s saturation temperature, while flue gas temperatures are reduced by 30–100°C, depending on the design.

Key Advantages

Energy Savings: Reduces fuel consumption by 5–15%, depending on the boiler’s size and efficiency.

Emission Reduction: Lower fuel use leads to decreased CO₂, NOₓ, and SOₓ emissions, aligning with environmental regulations.

Increased Steam Output: Preheated feedwater allows the boiler to generate more steam with the same fuel input.

Cost Efficiency: The initial investment in an economizer is typically recovered within 1–3 years through fuel savings.

Design and Operational Considerations

Material Selection: Tubes are often made of carbon steel, but stainless steel or alloy materials may be used if flue gases are corrosive (e.g., due to high sulfur content).

Fouling Prevention: Flue gases can deposit ash or soot on the tubes, reducing heat transfer. Regular cleaning (via soot blowers or mechanical scraping) is essential.

Freezing Protection: In cold climates, economizers must be insulated or drained when the boiler is shut down to prevent water from freezing and damaging the tubes.

Low-Temperature Corrosion: If the feedwater temperature is too low, flue gases may condense (due to moisture and acidic components), causing corrosion. The economizer’s design must ensure the flue gas temperature remains above the dew point.

Applications

Industrial Boilers: Used in manufacturing plants, refineries, and food processing facilities to generate steam for heating or power.

Power Plants: Integral to thermal power stations, where they improve the efficiency of steam turbines.

Marine Boilers: Installed on ships to reduce fuel consumption and meet emission standards.
