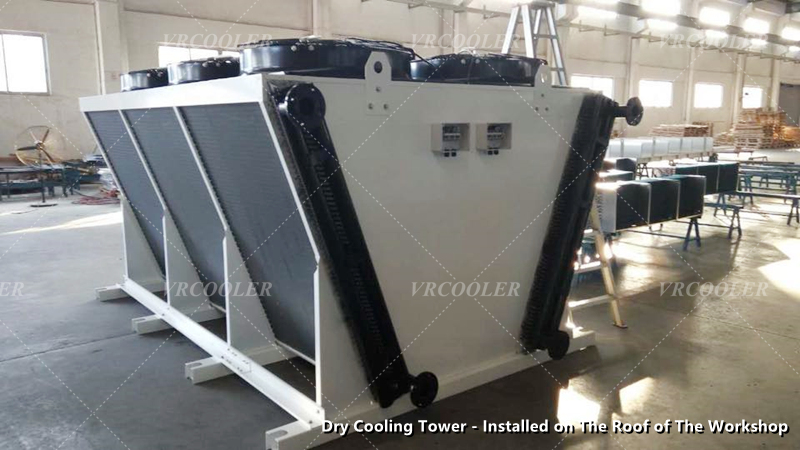

Dry Cooling Tower - Installed on The Roof of The Workshop

Dry Cooling Tower - Installed on The Roof of The Workshop

(Water, Tw1=40°C, Tw2=35°C, T1=25°C)

The flow rate of the water +35% ethylene glycol  is 14.5m3/h,

dry cooling tower - will be installed on the roof of the workshop - depending on the season, the ambient temperature may vary from -25 to +30 degrees Celsius

Dry cooling towers are a common type of cooling equipment that can be installed on the roof of a workshop for heat dissipation. This type of equipment is suitable for environments that require efficient heat dissipation, but do not require water cooling.

Working Principle of Dry Cooling Tower

Dry cooling towers mainly dissipate heat through natural fans and air convection.

Its working principle is as follows:

The hot medium (usually air, gas or other liquids) flows through pipes inside the dry cooling tower.

Inside the dry cooling tower, the heat medium exchanges heat with the outside air. The air is introduced into the tower through natural fans or ventilation equipment, which removes the heat.

The hot medium is cooled in the process and then recycled.

Advantages and Application Scenarios

Efficient Heat Dissipation: Dry cooling tower can realize efficient heat dissipation in a relatively small space, which is suitable for some environments that require a large amount of heat dissipation.

Energy saving and environmental protection: Compared with water cooling systems, dry cooling towers do not require the use of additional water resources, saving water and avoiding water treatment and disposal costs.

Wide range of applications: Suitable for various scenarios that require efficient heat dissipation, such as power plants, factories, petrochemicals and so on.

Application on the roof of workshop

It is a common practice to install the dry cooling tower on the roof of the workshop, especially for some workshops with small space or requiring roof space. The following points need to be considered when installing dry cooling tower on the roof:

Structural strength: Ensure that the structure of the workshop roof can withstand the weight and vibration of the dry cooling tower.

Safety precautions: When installing a dry cooling tower, safety precautions need to be considered to prevent any possible accidents.

Ventilation: When installing a dry cooling tower on a workshop roof, you need to make sure that there is enough ventilation around the tower so that it can get enough air inflow to dissipate heat.

Piping: Ensure that the dry cooling tower is smoothly connected to the internal piping of the workshop and that waterproofing measures are installed to avoid water leakage.

Design and Maintenance

Design Points: When designing the dry cooling tower to be installed on the roof of the workshop, the influence of the surrounding environment should be taken into account to ensure that the tower can get enough air flow to improve the cooling efficiency.

Regular Inspection and Maintenance: Regularly check the operation of the dry cooling tower, clean the filter and fan to ensure good heat dissipation.
