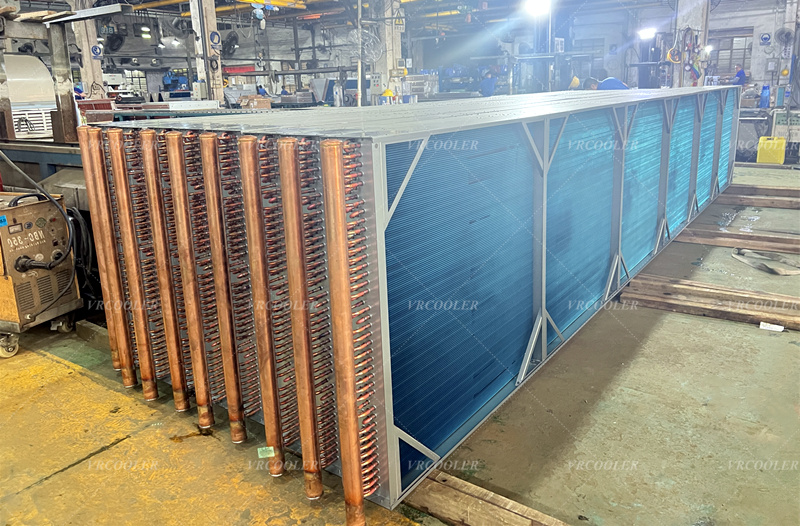

DX Coil for AHU

DX Coil for AHU

Function

Cooling: The DX coil cools the air by passing it over refrigerant-filled coils. As the refrigerant evaporates, it absorbs heat from the air, lowering the air temperature.

Dehumidification: As air cools, its ability to hold moisture decreases, leading to condensation. This process helps in reducing humidity levels in the space.

Design

Coil Construction: Typically made of copper or aluminum tubes with fins to enhance heat exchange efficiency.

Refrigerant Flow: The system operates on a refrigeration cycle, where the refrigerant is compressed, condensed, expanded, and evaporated.

Airflow: Fans in the AHU draw air over the DX coil, ensuring effective heat exchange.

Applications

Commonly used in commercial and industrial HVAC systems, especially in environments requiring precise temperature and humidity control.
