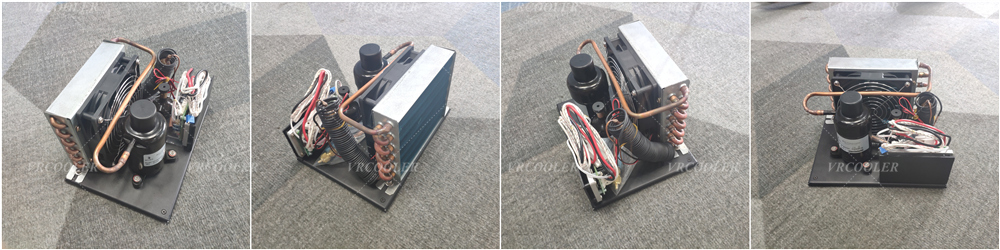

Refrigerant: R404A (for frozen & deep‑freeze transport, reach‑18℃ ~‑20℃)
Power supply: Direct DC power from vehicle battery: DC24V/48V/72V/96V/312V optional
Compressor: DC scroll inverter compressor, brushless permanent magnet synchronous motor
Mounting style: rooftop‑mounted / nose‑front split type for electric van & small electric truck
Cooling capacity: 2000‑7500W; suitable cargo box volume: 3‑16m³ (frozen mode‑18℃)
Function: Digital temperature controller, auto hot‑gas defrost, high/low pressure protection, optional AC standby power supply
Main Application Scenarios
Electric refrigerated vans / EV small cold‑chain trucks
Frozen delivery: meat, seafood, ice‑cream; fresh cargo: dairy, fruit, vegetable for urban last‑mile distribution
New‑energy light commercial EV reefer retrofit
Retrofit original electric cargo van into frozen truck, no engine‑driven mechanical compressor needed
Silent downtown & night delivery
Zero‑idle, low noise; comply with urban anti‑idling regulation, keep cooling even vehicle stops
Special mobile cold box on EV platform
Mobile medical cold storage, vaccine transport, small mobile freezer box mounted on electric vehicles
