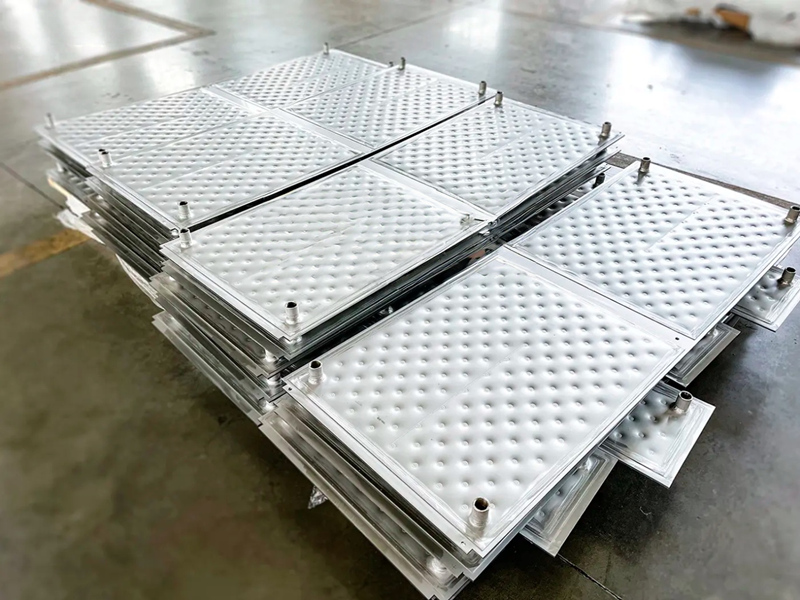

Custom 304 Stainless Steel Laser Welding Pillow Plate Heat Exchanger
Premium 304 Stainless Steel Construction
Built with food-grade 304 stainless steel (316L/duplex steel optional), the exchanger ensures excellent corrosion resistance, hygienic compliance, and long-term durability.
Advanced Laser Welding Technology
Fully automated fiber laser welding delivers leak-tight seals, high pressure resistance (up to 100 bar), and vacuum integrity (leak rate <10⁻⁹ mbar·L/s). No thermal deformation, minimal maintenance.
Pillow Plate Design for Maximum Efficiency
Two plates are laser-welded and inflated to form uniform turbulent flow channels. This “pillow” structure enhances heat transfer by 20–30% vs. traditional plate exchangers, reduces fouling, and enables easy CIP cleaning.
Fully Customizable Dimensions & Configurations
Max size: 12m × 2m
Plate thickness: 0.8–2.0 mm
Design pressure: Vacuum to 3.5 MPa (10 MPa available)
Temperature range: -196°C to 200°C
Flat/curved/jacketed designs available
Application:
Food & beverage: Milk/juice cooling, fermenter jackets, pasteurizers
Pharmaceutical: WFI cooling, reactor temperature control
Chemical: Waste heat recovery, evaporators, condensers
HVAC: Air handling units, pool heating, waste heat recovery
New energy: Battery cooling, energy storage systems
