Cooling coils in vacuum furnaces

Views: 0     Author: Site Editor     Publish Time: 2023-08-11      Origin: Site

Cooling coils in vacuum furnaces are components used to facilitate the cooling of materials that have been treated at high temperatures within the vacuum chamber. Cooling coils are designed to rapidly reduce the temperature of the material being treated by circulating a cooling medium (e.g. water or specialised quench oil) through the coil structure. This process is essential to achieve specific material properties and to ensure the success of a heat treatment or other thermal treatment.

The following are typical operating principles for cooling coils in vacuum furnaces:

1. **High Temperature Treatment:** In a vacuum furnace, the material is subjected to heat treatment processes such as annealing, brazing, sintering or tempering at high temperatures.

2. **Transfer to cooling chamber:** Once the high temperature process is complete, the material is transferred from the high temperature zone to a separate cooling chamber within the vacuum furnace.

3. **Introduction to Cooling Coil:** A cooling coil consists of a series of interconnected tubes or pipes placed inside a cooling chamber. The coil is designed to circulate a cooling medium, such as water or oil, through its channels.

4. **Circulation of the cooling medium:** The cooling medium (water, oil, etc.) is circulated through the cooling coil. When the cooling medium flows through the coils, the cooling medium absorbs the heat from the material to be treated, causing the material to cool rapidly.

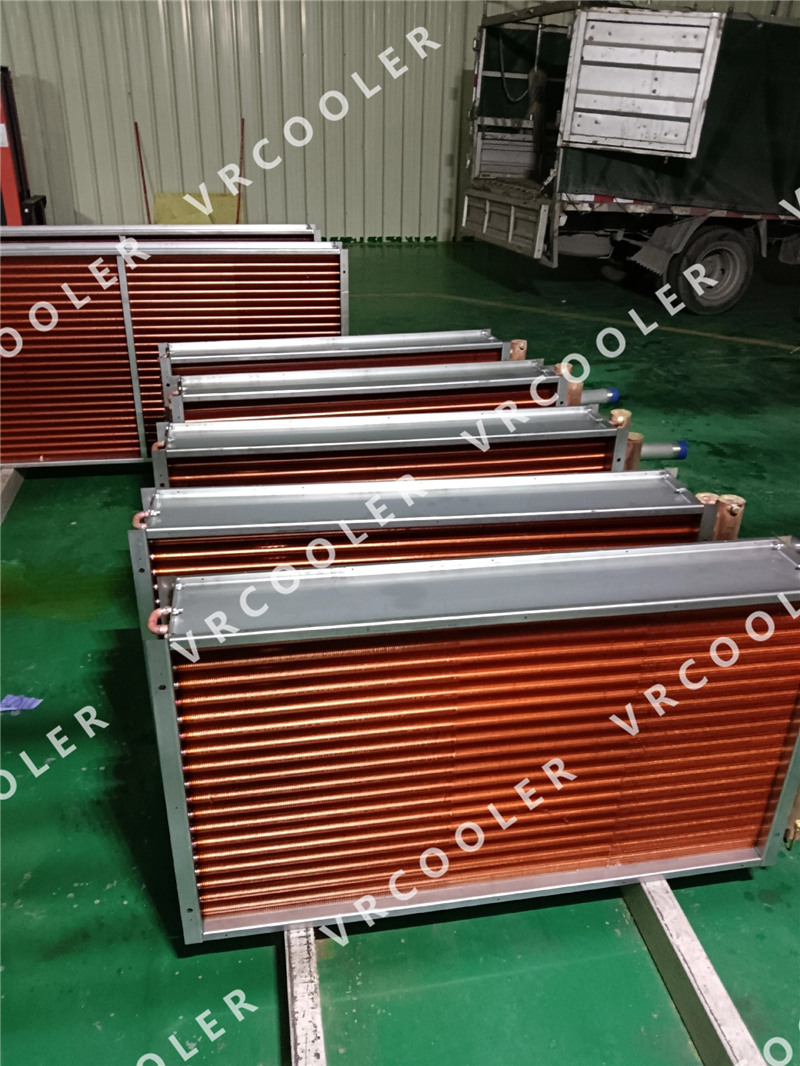

vacuum cooling

5. **Heat Transfer:** Heat is transferred from the material to the cooling medium inside the cooling coil. The cooling medium is heated as it absorbs heat from the material.

6. **Controlled Cooling Rate:** The cooling process is carefully controlled to achieve the desired cooling rate. The flow rate, temperature and composition of the cooling medium are adjusted to ensure controlled and efficient cooling of the material.

7. **Quenching option:** Depending on the specific heat treatment process and material requirements, the cooling process may also include a quenching step. Quenching involves rapidly cooling the material by immersing it in a cooling medium with specific properties to obtain specific material characteristics.

8. **Monitoring and Adjustment:** Throughout the cooling process, the cooling rate is monitored and adjusted as necessary to ensure that the material achieves the desired properties.

The cooling coil is an integral part of the vacuum furnace cooling system and plays a vital role in achieving the desired material properties. By efficiently transferring heat from the material to the cooling medium, cooling coils help control the microstructure, hardness, strength and other important properties of the material. The design and operation of the cooling coil depends on factors such as the material to be processed, the desired properties and the overall heat treatment objectives.
