System Components
1. Primary Loop Inside the Container: Water-cooled mining machine cooling plate, circulating water pump, plate heat exchanger;

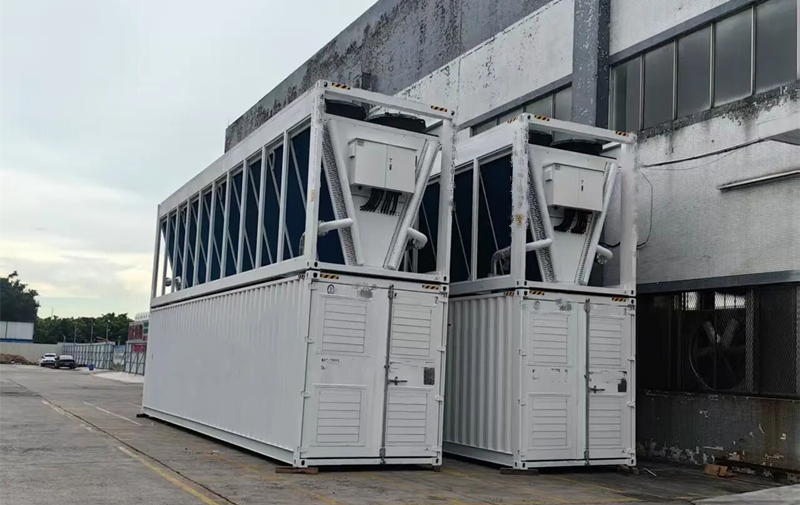

2. Top Heat Dissipation Unit: Dry cooler;
3. Supporting Components: Ethylene glycol antifreeze, expansion tank, water treatment device, leak monitoring, temperature control linkage system.
Heat Exchange Principle: Heat from the mining machine chips is carried away by the antifreeze inside the cooling plate, and then transferred to the secondary circulating water via the plate heat exchanger. The hot water is delivered to the top dry cooler, where it undergoes forced convection cooling with the outside air. After cooling, the water is recycled.
Core Advantages
- Low cooling power consumption, PUE up to 1.08~1.15;
- Dust-free environment, significantly reducing mining machine maintenance rate, stable overclocking by 20%–40%;
- High hashrate, a standard 40-foot container can hold 200–220 water-cooled mining machines;
- Can be equipped with waste heat recovery for heating and industrial hot water supply.
