A condenser radiator is a critical heat rejection component used in air conditioning (A/C) systems and in thermal management of high-power electronics. Its primary function is to transfer heat from a working fluid—typically refrigerant or coolant—to the surrounding air, ensuring stable system operation, high efficiency, and long equipment life. With the rapid growth of data centers, electric vehicles, renewable energy inverters, and industrial automation, condenser radiators are increasingly required to meet higher heat fluxes, compact footprints, and demanding environmental conditions.
In air conditioning systems, the condenser radiator removes heat absorbed from indoor spaces and rejects it to ambient air. High-temperature, high-pressure refrigerant vapor from the compressor enters the condenser, where it releases heat and condenses into a liquid state.
Key functions in A/C applications:
Efficient heat dissipation to maintain optimal condensing pressure
Improved system coefficient of performance (COP)
Stable operation across varying ambient temperatures
Reduced compressor load and energy consumption
Condenser radiators for A/C are widely used in split air conditioners, rooftop units (RTUs), chillers, precision air conditioning systems, and transport refrigeration.
Power electronics—such as IGBT modules, rectifiers, converters, and inverters—generate significant heat during operation. Condenser radiators play a vital role in liquid-cooled or refrigerant-based cooling systems, ensuring electronic components remain within safe operating temperatures.
Typical power electronics applications include:
Data centers and UPS systems
EV traction inverters and onboard chargers
Wind and solar power inverters
Industrial drives and frequency converters
In these systems, the condenser radiator dissipates heat from a liquid coolant or refrigerant circuit, enabling high power density, improved reliability, and longer service life of electronic components.

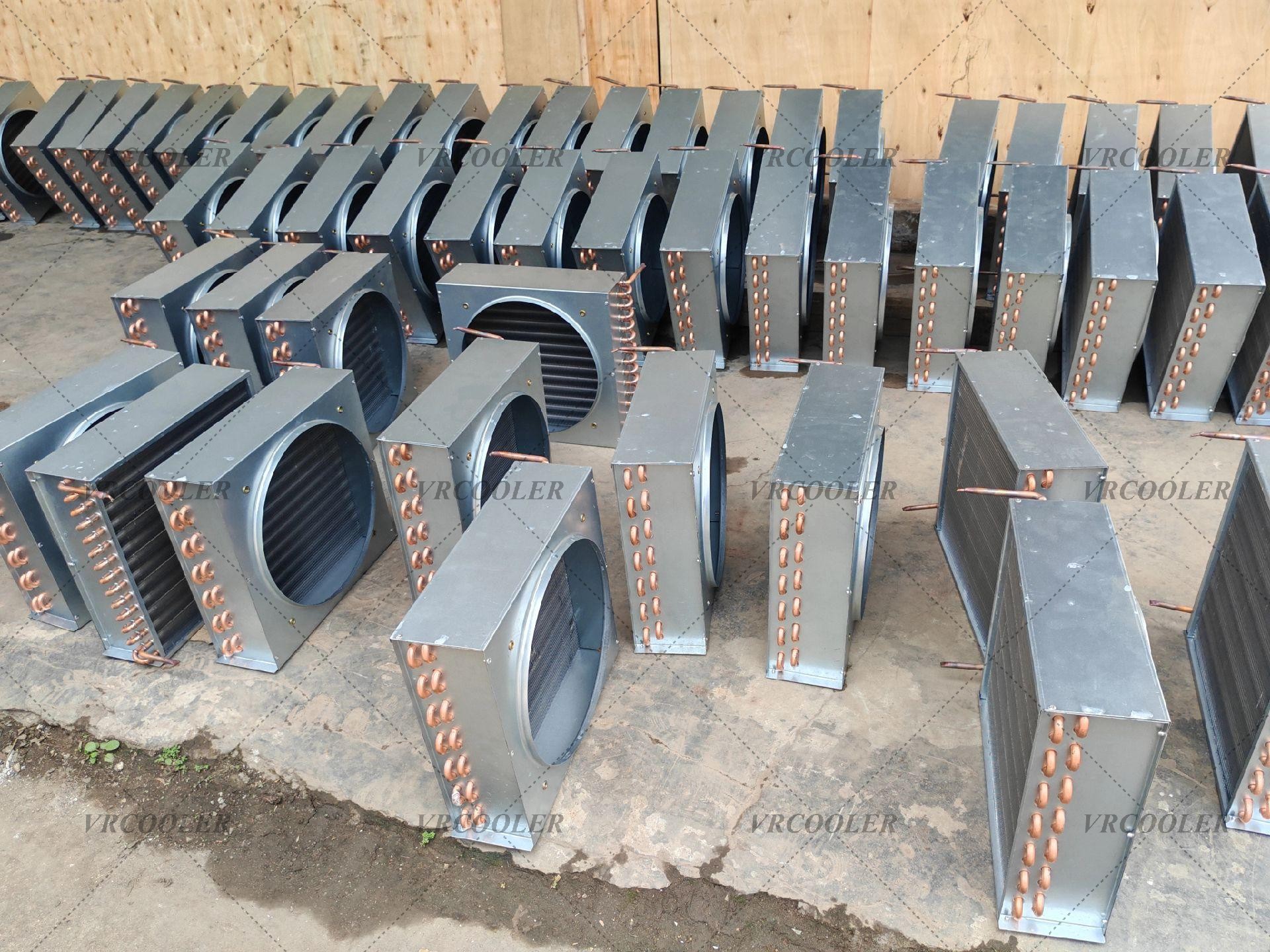

Modern condenser radiators are engineered for high thermal efficiency and mechanical reliability. Common configurations include tube-fin, microchannel, and plate-fin designs.
Typical materials and features:
Copper tubes with aluminum fins for excellent heat transfer
All-aluminum microchannel designs for lightweight and compact systems
Stainless steel or coated aluminum for corrosive environments
Optimized fin geometry to maximize air-side heat transfer
Compatibility with multiple refrigerants and coolants
High heat transfer efficiency: Optimized tube and fin structures enhance thermal performance
Compact and lightweight: Ideal for space-constrained power electronics and HVAC systems
Energy savings: Lower condensing temperatures reduce overall system power consumption
Reliability: Robust construction ensures stable operation under continuous thermal cycling
Customization: Designs can be tailored for airflow, capacity, noise, and environmental conditions
Condenser radiators can be customized to meet specific system requirements, including:
Cooling capacity and heat load
Airflow direction and fan integration
Refrigerant or coolant type
Mounting orientation and envelope size
Operating temperature and ambient conditions
OEM-level customization allows seamless integration into A/C units, power cabinets, outdoor enclosures, and skid-mounted systems.
Condenser radiators are indispensable components for both air conditioning systems and power electronics cooling. By efficiently rejecting heat, they enhance system efficiency, operational stability, and equipment longevity. With advanced materials, optimized designs, and flexible customization options, modern condenser radiators meet the evolving thermal management demands of HVAC, energy, transportation, and industrial electronics applications.
