In a refrigerated dryer, the coil is the key component used to facilitate the cooling and dehumidification of compressed air. Refrigerated air dryers are typically used in industrial and commercial applications to remove moisture from compressed air, ensuring that the air remains dry and suitable for a variety of processes and equipment. Coils are one of the key components in achieving dehumidification.

Here is how coils work in a refrigerated air dryer:

1. **Compressed Air Inlet:** Hot and humid compressed air from the compressor enters the refrigerated air dryer.

2. **Precooling:** The incoming compressed air first passes through the precooling section of the refrigerated air dryer. In this section, the air is cooled using the discharged cold air, which helps to reduce its temperature and initial moisture content.

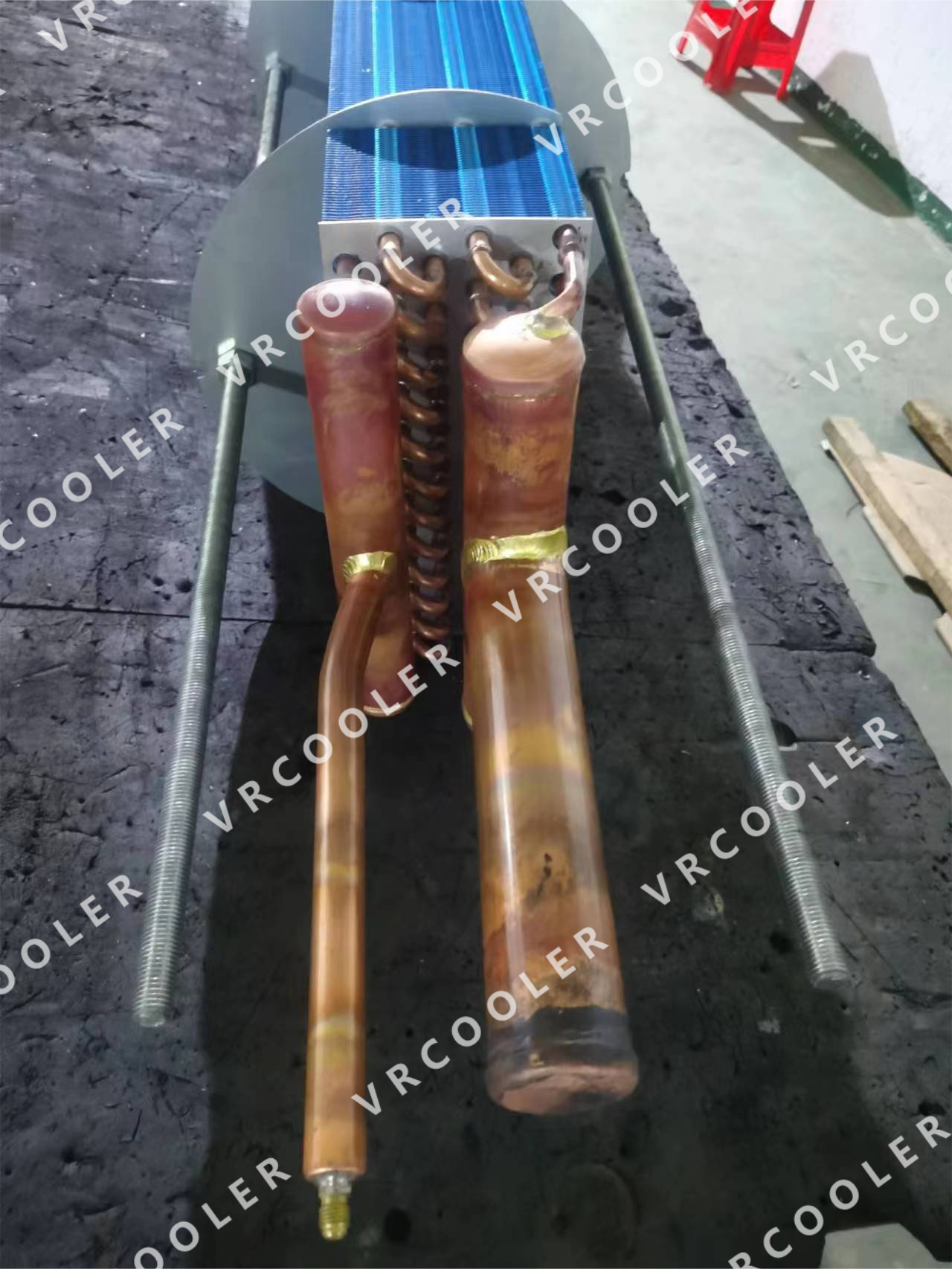

3. **Main Cooling Coil:** The cooled air then enters the main cooling coil, also known as the evaporator coil. This coil is usually made of copper or aluminium and contains a refrigerant that evaporates at low temperatures. As the warm compressed air passes through the coil, its temperature drops significantly.

4. **Condensation:** As the compressed air cools, moisture in the air begins to condense into water droplets on the surface of the coil. This moisture-filled air then separates from the water droplets and is directed out of the dryer.

5. **Drainage:** The condensate droplets collect at the bottom of the air dryer and are discharged through the condensate drain.

6. **Reheat:** After dehumidification, dry, cool compressed air passes through the reheat section of the air dryer. This section uses a small portion of the exhausted dry, cool air to reheat the main air stream, preventing the compressed air from becoming too cold and causing problems downstream.

7. **Outlet:** Dry and slightly reheated compressed air exits the air dryer and can be used in a variety of applications requiring clean, dry air.

The role of the coil in a refrigerated air dryer is critical to achieving efficient dehumidification. As the compressed air cools and moisture condenses on the coil, it is effectively separated from the air stream, ensuring that the discharged air is dry and free of excess humidity. The design of the coil, the refrigeration system and the overall air dryer configuration determines the performance of the dryer and its ability to deliver dry compressed air.
