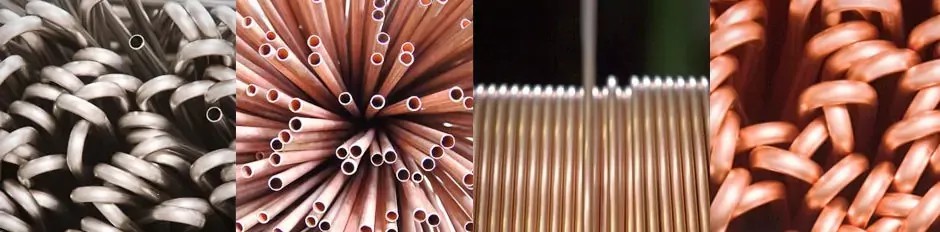

TUBES
Copper, Stainless steel, Aluminum, Hot deep carbon steel, Titanium
7 mm, 5/16“, 3/8“, 12 mm, 1/2“, 5/8“, 20mm, 25mm
Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
Connection to several circuits available

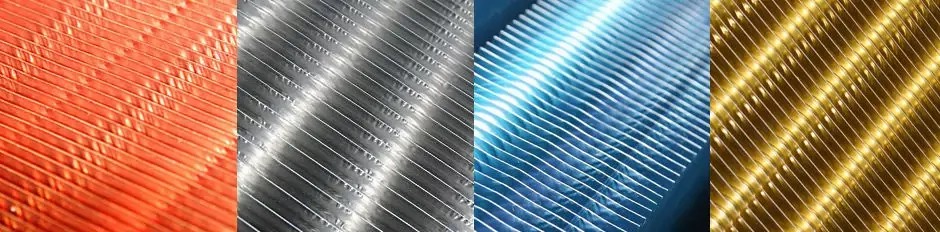

FINS
Aluminum
Copper
Stainless steel
Hot deep carbon steel
Titanium
Hydrophilic, Epoxy coated, gold fin, bare fin, Blygold, E-coating

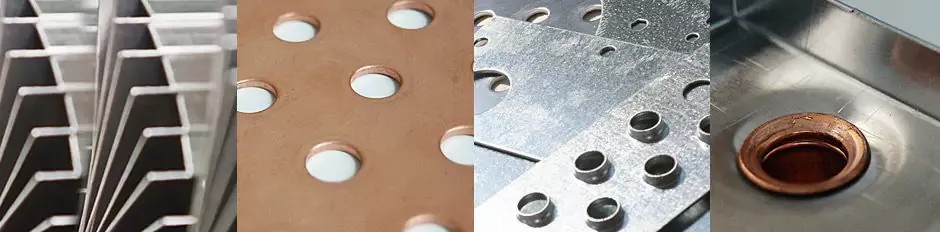

CASING MATERIAL
Thick. 1 – 3 mm
Galvanized steel
Aluminum
Stainless steel
Copper
Brass

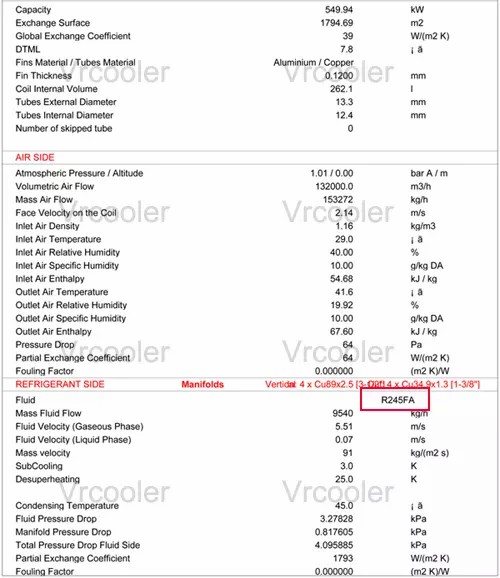

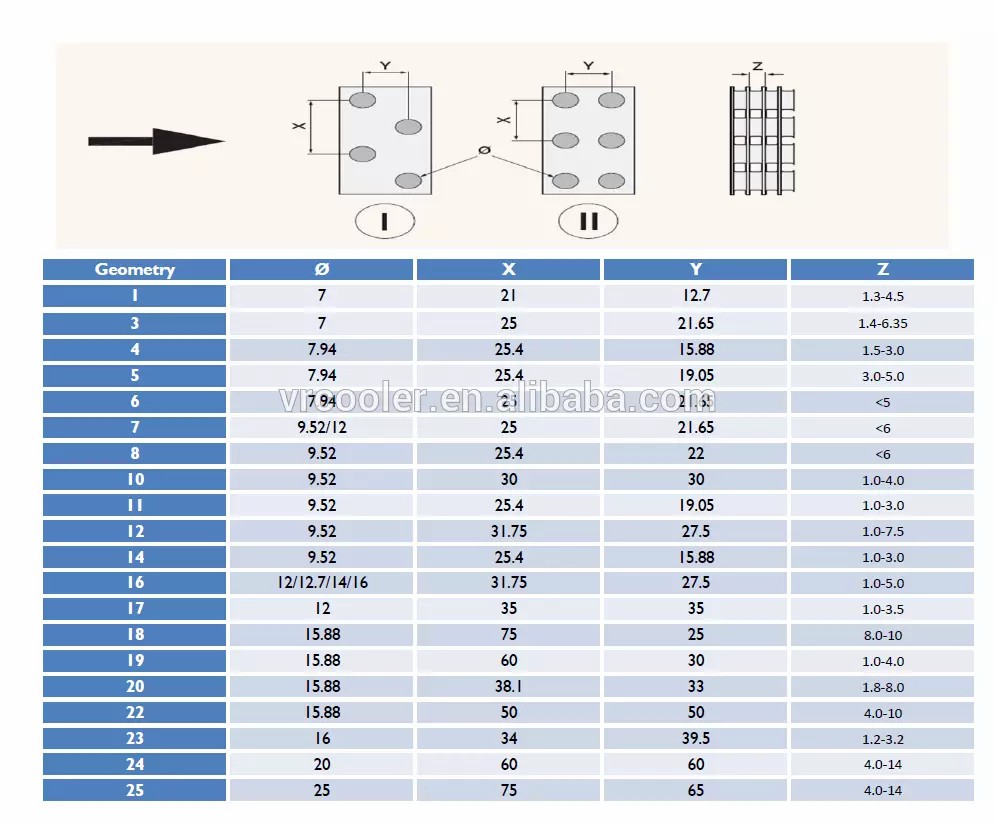

Engineering Data

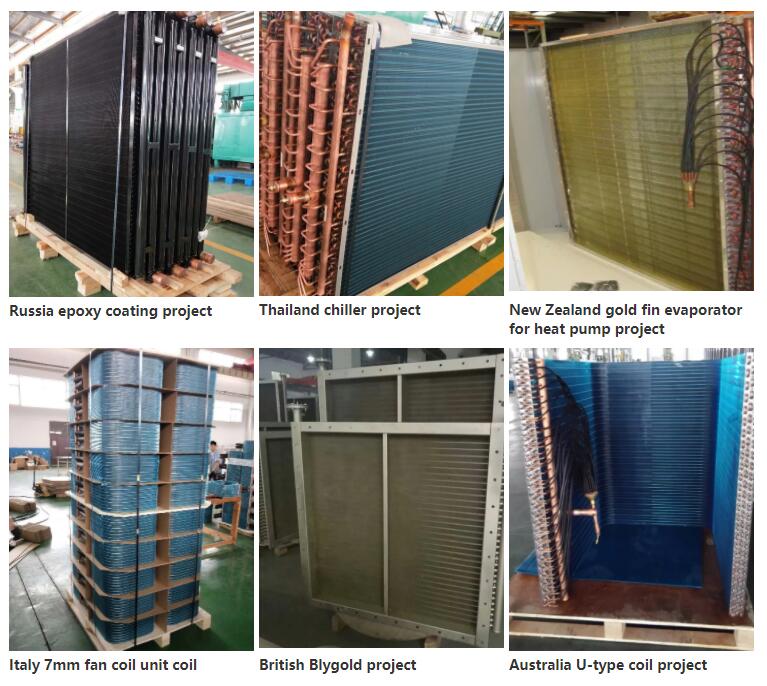

We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Customer feedback photos

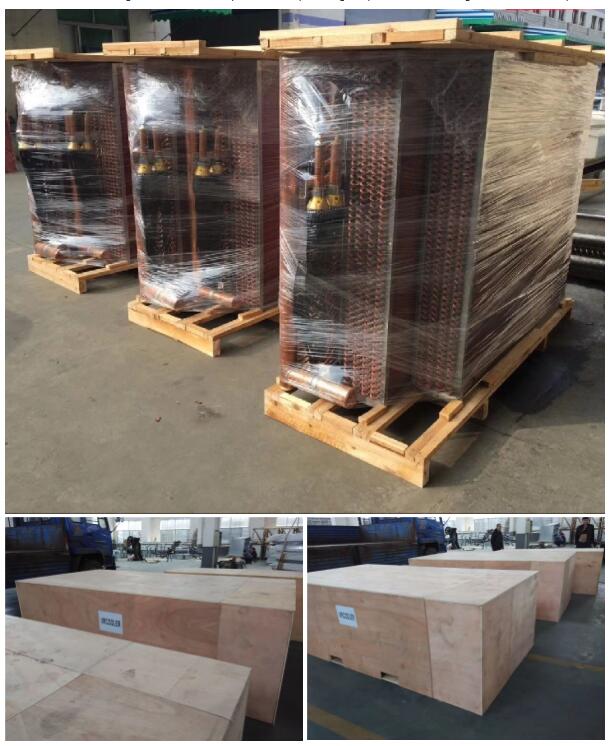

Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tighter,we will use pe film for packing or pack it according to customers special request.
