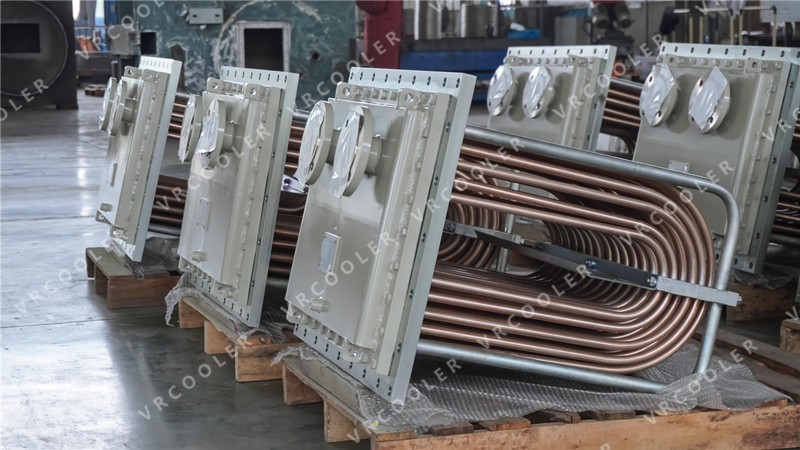

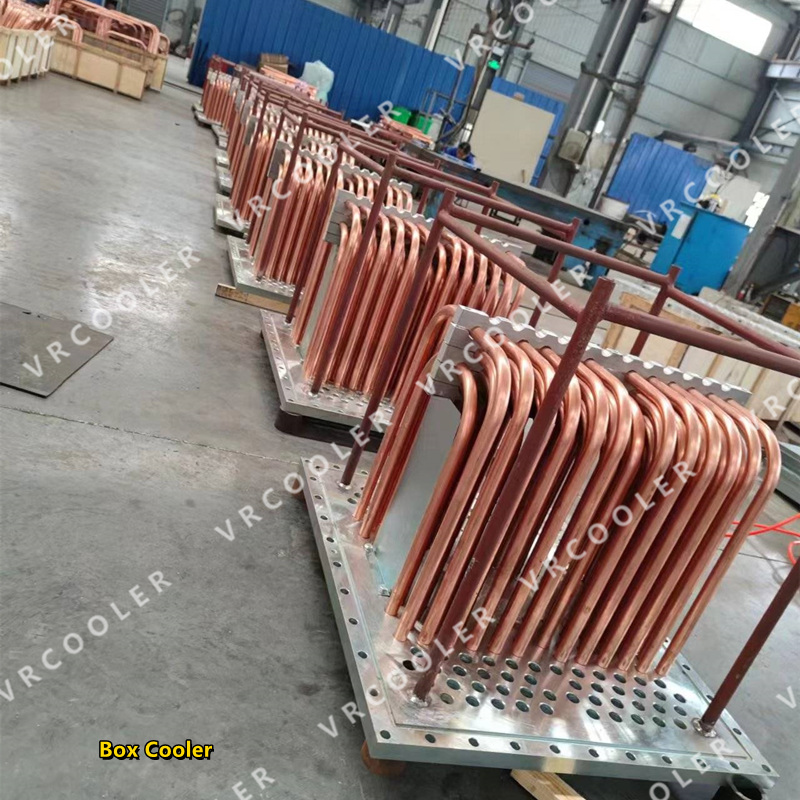

Box Type Air Cooler / Application : Charge Air Cooler

Box Type Air Cooler / Application : Charge Air Cooler

A box-type air cooler, specifically designed for use as a Charge Air Cooler (CAC), is an essential component in internal combustion engines, particularly in automotive and industrial applications. The Charge Air Cooler is positioned after the turbocharger in a forced induction system to cool the hot compressed air before it enters the engine's combustion chamber.

Design and Construction:

Box-Type Configuration: The air cooler is designed in a box-type configuration, providing a compact and enclosed structure.

Material: The cooler is typically constructed from materials with good thermal conductivity, corrosion resistance, and durability, such as aluminum or stainless steel.

Cooling Process:

Function: The primary function is to cool the hot compressed air from the turbocharger before it enters the engine. Cooling the air improves its density, increasing the amount of oxygen available for combustion and enhancing engine performance.

Heat Exchange: The box-type air cooler facilitates heat exchange between the hot compressed air and the surrounding air, dissipating the heat generated during compression.

Installation Location:

After Turbocharger: The Charge Air Cooler is positioned downstream of the turbocharger and upstream of the engine intake manifold.

Airflow and Fins:

Finned Design: The cooling element inside the box typically includes finned tubes or other structures to maximize the surface area for efficient heat exchange.

Airflow Direction: The hot compressed air flows through the finned tubes, and ambient air is directed over the external surface of the tubes.

Coolant or Ambient Air Cooling:

Coolant-Cooled: In some designs, the air cooler may be integrated with the engine's cooling system, using engine coolant as the cooling medium.

Air-Cooled: Other designs rely on ambient air passing over the fins to cool the compressed air directly.

Pressure Drop:

Minimized Pressure Drop: The design aims to minimize pressure drop across the Charge Air Cooler to maintain optimal turbocharger efficiency and overall engine performance.

Performance and Efficiency:

Efficient Cooling: The box-type air cooler is designed for efficient cooling, ensuring that the compressed air temperature is lowered to the desired level for combustion.

Enhanced Engine Efficiency: A cooler charge air temperature contributes to improved engine efficiency, power output, and fuel efficiency.

Durability and Reliability:

Robust Design: The cooler is constructed to withstand the operating conditions of the engine, including temperature and pressure fluctuations.

Reliable Operation: Durability is crucial for the reliable and continuous operation of the Charge Air Cooler in demanding environments.

Applications:

Automotive Engines: Box-type air coolers for Charge Air Cooling are commonly used in automotive engines, especially those with turbocharged or supercharged systems.

Industrial Engines: They may also find application in various industrial engines where forced induction is employed.

Integration with Engine Systems:

Integral Component: The box-type air cooler is integrated seamlessly into the overall engine system, working in conjunction with the turbocharger and other components.

A well-designed box-type air cooler for Charge Air Cooling plays a critical role in optimizing the performance and efficiency of internal combustion engines, contributing to improved power output and fuel economy.
