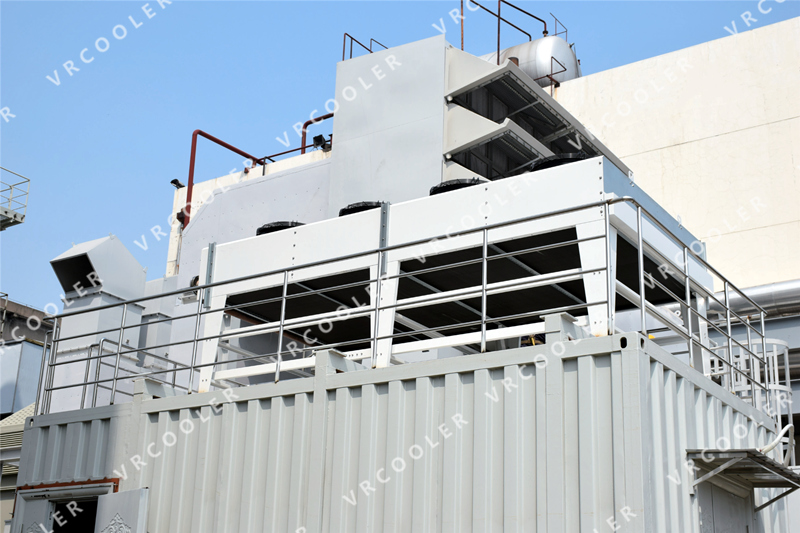

An Drying Cooler for Submersion Use
To further remove the heat from the immersed components, dry coolers can be utilized in tandem with immersion cooling systems. By using a non-conductive liquid, usually a dielectric fluid, to cool electronic components or servers, we refer to this technique as "immersion cooling." The fluid absorbs the heat produced by the components and is then cooled by a dry cooler.
Further information regarding dry coolers for use in immersion cooling is provided below.
In an immersion cooling system, the dielectric fluid absorbs the heat produced by the electronic components before transporting it to the dry cooler. The fluid is cooled by the ambient air in the dry cooler before being recycled back into the immersion tank.
Because they employ surrounding air to chill the fluid, dry coolers can be quite effective in immersion cooling applications. Because of this, they can save money and resources by not installing a refrigeration system.
Factors such as the size and heat load of the immersion tank, the type of dielectric fluid used, and the ambient air temperature and humidity must be taken into account when constructing a dry cooler for immersion cooling.
Dry coolers for immersion cooling, like all cooling systems, need routine maintenance to function properly and last as long as possible. The heat exchanger can be cleaned, the fans and motors inspected, and the controls and sensors checked for accuracy.
Immersion cooling is widely utilized in data centers and other high-density computing environments because it cools servers quickly and effectively. It can also be put to use in oil and gas exploration and other industrial settings where electronics are subjected to hostile conditions and require efficient cooling.
A dry cooler with a plate heat exchanger for use in an immersion cooling system
For effective cooling in immersion cooling applications, dry coolers and plate heat exchangers can be used together. One method of transferring heat between fluids is with the help of a plate heat exchanger. The immersion cooler uses a dry cooler to remove heat from the cooling fluid after it has been transferred from the dielectric fluid via a plate heat exchanger.
The use of a dry cooler in conjunction with a plate heat exchanger for immersion cooling is elaborated upon below.
Plate heat exchangers are used in immersion cooling systems to transfer heat between the dielectric fluid and the cooling fluid. As the two fluids flow past each other, heat is transmitted from the dielectric fluid to the cooling fluid. The fluid is routed to a dry cooler, where it is cooled by air at room temperature.
In immersion cooling applications, dry coolers with plate heat exchangers can be quite effective due to the vast surface area available for heat transmission. As more heat can be exchanged between the fluids, the dry cooler can handle less heat and still be effective.
It is crucial to take into account the flow rate and temperature of the dielectric fluid and cooling fluid, the size and number of plates in the heat exchanger, as well as the ambient air temperature and humidity, while building a dry cooler with a plate heat exchanger for immersion cooling.
Dry coolers with plate heat exchangers, like all cooling systems, need regular maintenance to function properly and last as long as possible. The heat exchanger can be cleaned, the fans and motors inspected, and the controls and sensors checked for accuracy.
Immersion cooling applications, such those found in data centers and industrial operations, frequently use dry coolers with plate heat exchangers due to their high efficiency. When a plate heat exchanger is required to transfer heat between two fluids, they might be employed for various cooling purposes.
For immersion cooling applications, dry coolers with plate heat exchangers might be a practical and economical choice. They are widely used in a wide range of high-performance applications due to their ability to transfer heat between the dielectric and cooling fluids, hence reducing the load on the dry cooler and increasing overall efficiency.
