Air to Water Heat Exchanger Design According to The Working Condition

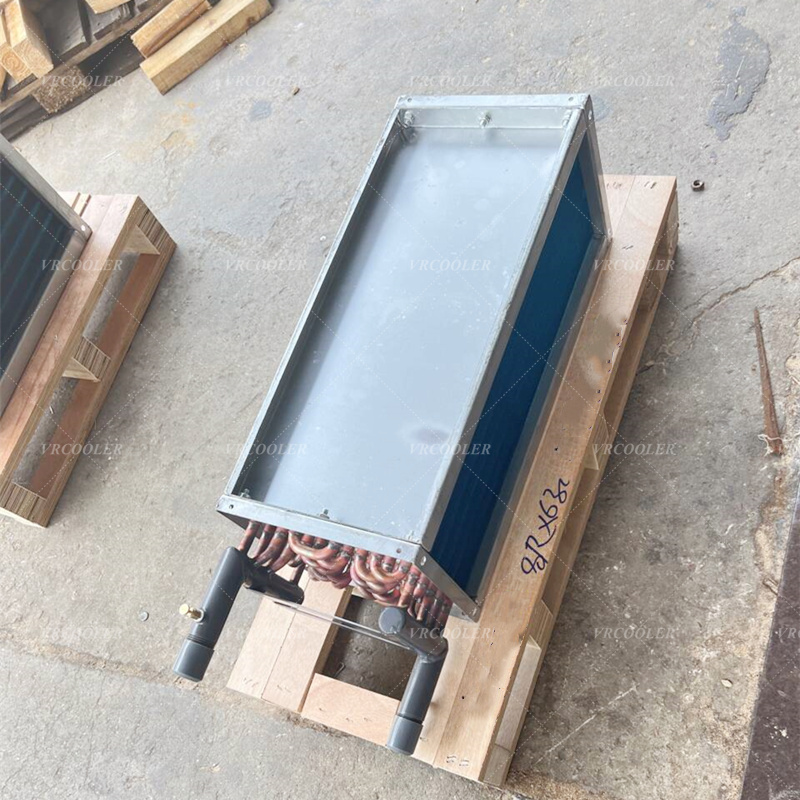

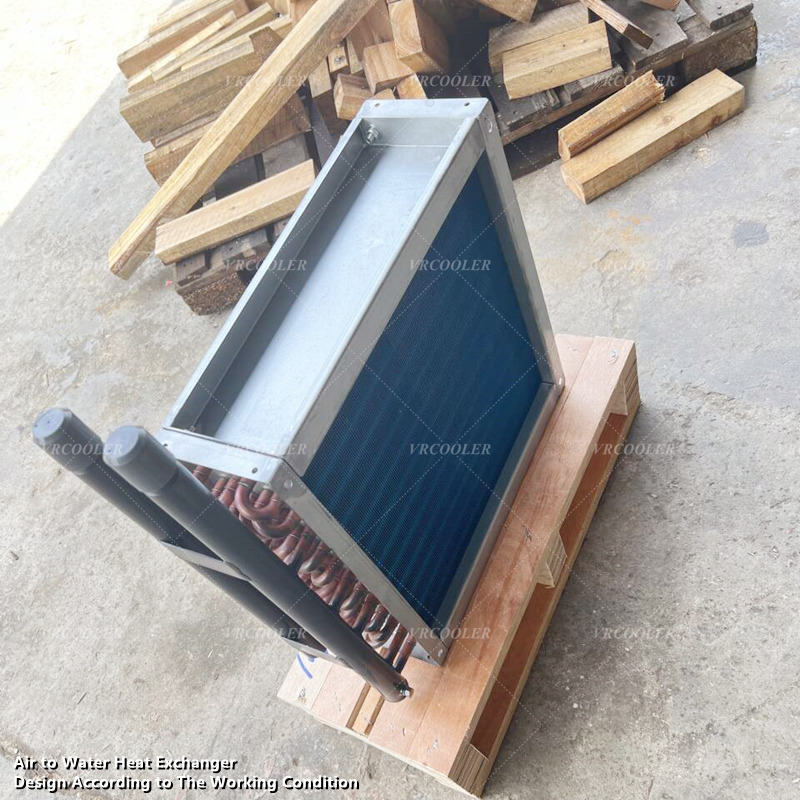

Air to Water Heat Exchanger

Design According to The Working Condition

What is the Heat Transfer Efficiency of an Air-Water Heat Exchanger?

Air-to-water heat exchangers typically have heat transfer efficiencies between 60% and 85%.

There are many factors affecting the air - water heat exchanger heat transfer efficiency, mainly including the following aspects:

Structural design of the heat exchanger

Heat transfer area: larger heat transfer area can usually improve the heat transfer efficiency. For example, the use of more heat transfer tubes or increase the area of the fins can increase the contact area between air and water, thereby improving the efficiency of heat transfer.

Fluid flow: Reasonable fluid flow can enhance the effect of heat transfer. For example, the use of counter-current heat transfer, that is, air and water flow in the opposite direction, can improve the average temperature difference, thereby improving the efficiency of heat transfer.

Fin structure: The shape, height, spacing and other parameters of the fins will affect the heat transfer performance of the air side. Optimising the fin structure can improve the heat transfer coefficient on the air side, thus improving the overall heat transfer efficiency.

Operating conditions

Air and water flow: Appropriate increase in air and water flow can improve heat transfer efficiency. However, too large a flow rate can also lead to an increase in resistance, thus increasing energy consumption. Therefore, it is necessary to balance between heat transfer efficiency and energy consumption.

Temperature difference between air and water: a large temperature difference can improve the heat transfer efficiency. However, in practice, the temperature difference is limited by the heat source and heat load.

Air quality: Dust and impurities in the air will be deposited on the surface of the heat exchanger, reducing the heat exchange efficiency. Regular cleaning of the heat exchanger surface can maintain good heat transfer performance.

Material properties

Thermal conductivity: the better the thermal conductivity of the heat exchanger material, the higher the heat transfer efficiency. For example, the use of copper, aluminium and other thermally conductive materials to manufacture heat exchangers, can improve heat transfer efficiency.

Corrosion resistance: in some special environments, heat exchangers need to have good corrosion resistance. Selection of corrosion-resistant materials can extend the service life of the heat exchanger, while maintaining a stable heat transfer efficiency.

It should be noted that different types and specifications of air - water heat exchanger heat transfer efficiency will vary. In practical applications, the appropriate heat exchanger should be selected according to the specific conditions and requirements, and the heat transfer efficiency should be improved through optimised design and operation management.
