Air Preheaters for Fired Heaters Improve Thermal Efficiency and Fuel Savings

In fired heater systems, a large amount of valuable energy leaves the process through hot flue gas. If that heat is allowed to escape directly to the stack, the heater consumes more fuel than necessary to reach the required process temperature. This is why finned tube air preheaters are widely used in fired heaters. They recover part of that waste heat and transfer it to the incoming combustion air, helping the heater run more efficiently.

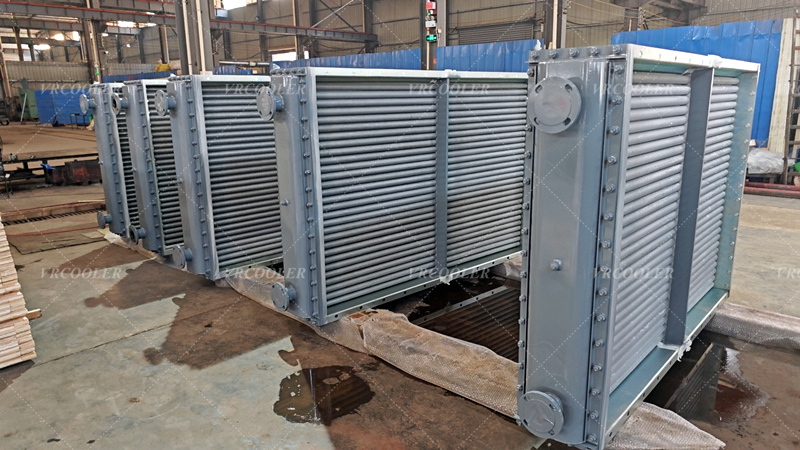

A finned tube air preheater is a heat exchanger installed in the flue gas path of the fired heater. Its job is to warm the combustion air before that air enters the burners. Instead of sending cold ambient air directly into the combustion chamber, the system uses recovered flue gas heat to raise the air temperature first. Once the combustion air is preheated, less fuel is needed to reach the same flame and process duty. That is where the main efficiency gain comes from.

This may sound like a simple improvement, but in real operation it can make a noticeable difference. Fired heaters are used continuously in refineries, petrochemical plants, chemical processing units, and many other industrial heating applications. Even a moderate increase in thermal efficiency can translate into significant fuel savings over time. Lower fuel consumption not only reduces operating cost, but also helps reduce overall emissions from the plant.

The finned tube design is especially effective because it increases the external heat transfer surface area. Flue gas is usually on the outside of the tubes, while combustion air flows inside, or the arrangement may be reversed depending on the design. The fins allow more heat to be captured from the gas stream within a compact exchanger size. This makes the equipment practical for fired heater retrofits as well as new installations where space and pressure drop must be considered carefully.

In fired heater applications, air preheaters must be designed with real operating conditions in mind. Flue gas temperature, combustion air flow, allowable pressure drop, fuel type, fouling tendency, and corrosion risk all affect the design. The heater may burn natural gas, refinery gas, fuel oil, or another fuel, and each service condition can influence material selection and heat exchanger configuration. At higher temperatures, the choice of tube material and fin material becomes especially important for long-term durability.

One of the reasons finned tube air preheaters are attractive is that they improve efficiency without fundamentally changing the core fired heater process. The burners still perform the same function, but the combustion system becomes more energy-efficient because the incoming air already contains recovered heat. This improves the overall thermal balance of the unit. In some plants, it can also support better combustion conditions and more stable burner performance.

For operators, the benefits are practical and measurable. A properly designed air preheater can help lower fuel consumption, improve fired heater efficiency, reduce stack losses, and make better use of the heat already generated by the system. In large process heaters, these advantages become even more valuable because the total energy demand is so high. The recovered heat that would otherwise be wasted becomes a useful part of the combustion process.

At the same time, design must be handled carefully. If flue gas contains sulfur compounds, acidic components, dust, or corrosive contaminants, the cold-end temperature and material selection must be reviewed closely to avoid corrosion problems. Fouling is another important issue, especially in dirtier services. For this reason, industrial air preheaters are usually engineered specifically for the process rather than selected as generic standard coils.

Custom finned tube air preheaters are often preferred for fired heaters because each project has different duty, layout, and operating conditions. Tube spacing, fin pitch, number of rows, casing design, cleaning access, and connection arrangement can all be adjusted to match the installation. This gives plant designers more flexibility and helps ensure that the final unit performs reliably in actual service.

In modern process plants, energy efficiency is no longer just a bonus. It is a key part of equipment selection and plant economics. Finned tube air preheaters offer a practical way to recover waste heat from fired heaters and convert it into useful energy for combustion. By preheating the incoming air, they help reduce fuel use, cut operating costs, and improve the overall thermal efficiency of the heater.

For fired heater systems that run continuously and consume large amounts of fuel, that makes the finned tube air preheater a highly valuable piece of equipment rather than just an optional accessory.
