Air-Cooled Heat Exchangers for CAT 3516 DITA JWAC Systems

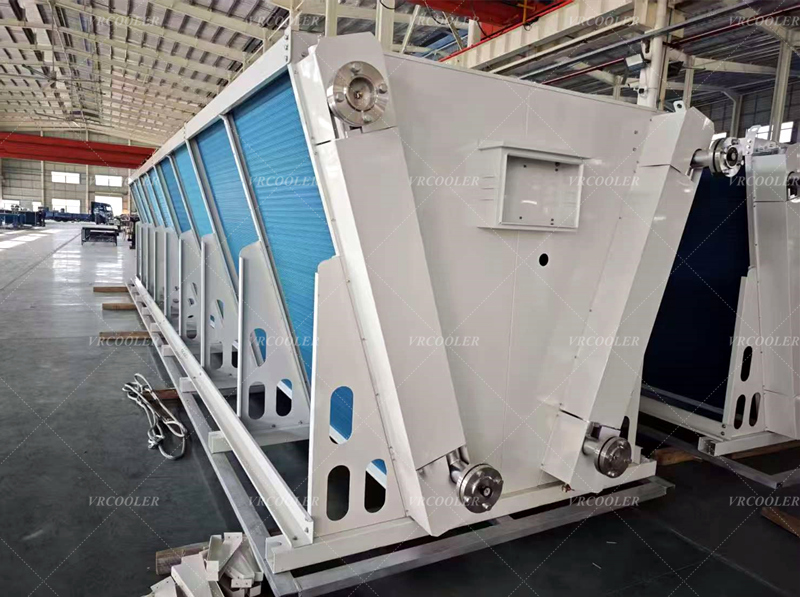

In a CAT 3516 DITA JWAC system, the air-cooled heat exchanger transfers heat from the hot jacket water to ambient air. The system typically consists of:

• Finned tube heat exchanger core

• Axial or centrifugal fans

• Structural frame and mounting base

• Inlet and outlet headers compatible with CAT JWAC piping

Hot jacket water flows through the tubes, while ambient air is forced across the finned surface, dissipating heat without the need for cooling towers or large water consumption.

Heat Exchanger Design Features for CAT 3516 DITA

To meet the thermal and mechanical demands of CAT 3516 DITA engines, JWAC air-cooled heat exchangers are typically designed with:

• Elliptical or round tubes to optimize air-side pressure drop

• Aluminum or steel fins for efficient heat transfer

• Carbon steel or stainless steel headers for durability

• High-efficiency axial fans matched to required heat rejection

• Vibration-resistant tube supports for engine-driven environments

Design parameters are tailored to:

• JWAC flow rate

• Inlet and outlet temperature requirements

• Ambient design temperature

• Site altitude and noise limitations

OEM and Customization Capabilities

Because CAT 3516 DITA installations vary widely by application and environment, air-cooled JWAC heat exchangers are often custom-engineered, including:

• Thermal design verification to CAT specifications

• Customized nozzle sizes and orientations

• Anti-corrosion coatings for marine or coastal environments

• Low-noise fan solutions for urban or sensitive areas

OEM and ODM services ensure full compatibility with CAT engine performance requirements.

Air-cooled heat exchangers provide a robust, efficient, and water-free cooling solution for CAT 3516 DITA JWAC systems. With proven reliability, flexible installation options, and low lifecycle costs, they are an optimal choice for demanding industrial and power generation applications where performance and durability are critical.
