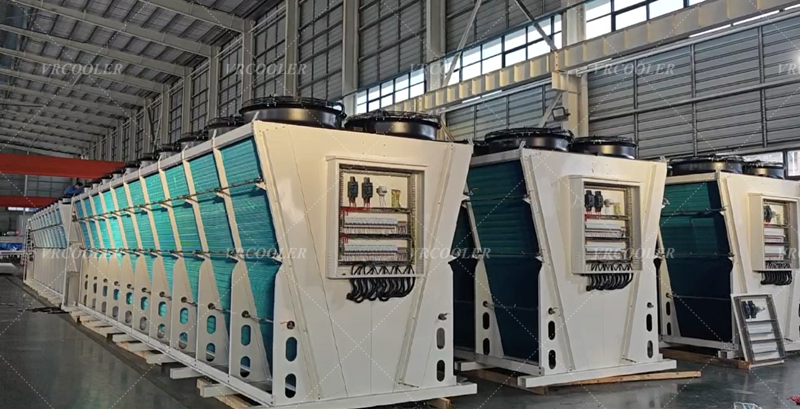

Containerized cogeneration (CHP) units are widely used in industrial parks, commercial complexes, and distributed energy projects, integrating power generation and heat recovery in a compact container for high energy efficiency and space-saving deployment. However, the dual thermal demands of engine jacket water cooling and intercooler cooling, coupled with the limited container space, pose unique challenges to supporting cooling systems. Today, we launch our 2-Circuit LT-HT Dry Cooler specially designed for container cogeneration CHP units—a compact, waterless, and high-efficiency dual-circuit cooling solution that independently handles engine jacket water (HT) and intercooler (LT) cooling, ensuring stable full-load operation and optimal energy efficiency of CHP units.
Containerized CHP units (gas or diesel-fired) integrate engines, generators, heat recovery systems, and control units into a standard 20ft/40ft container, with extremely limited space for cooling equipment. Unlike single-circuit coolers that cannot balance the distinct temperature requirements of engine jacket water and intercoolers, our 2-Circuit LT-HT Dry Cooler solves this core pain point by integrating independent high-temperature (HT) and low-temperature (LT) circuits in a compact structure, realizing:
- Dual Thermal Control: Independent HT circuit for engine jacket water cooling and LT circuit for intercooler cooling, avoiding thermal interference and ensuring each component operates within its optimal temperature range.
- Space-Saving Compact Design: Integrated dual-circuit structure, 30% smaller volume than two separate single-circuit dry coolers, perfectly fitting the top, side, or internal corner of the container without occupying valuable space for heat recovery or other core CHP components.
- Matching CHP Load Demands: Targeted design for container CHP unit load (100kW–2500kW), effectively handling the heat rejection of engine jacket water and intercoolers, preventing overheating and ensuring efficient power generation and heat recovery.
- Seamless Integration: Modular and lightweight design, easy to install on container tops or sidewalls, compatible with standard 20ft/40ft container dimensions, no major modifications to the CHP unit or container required.

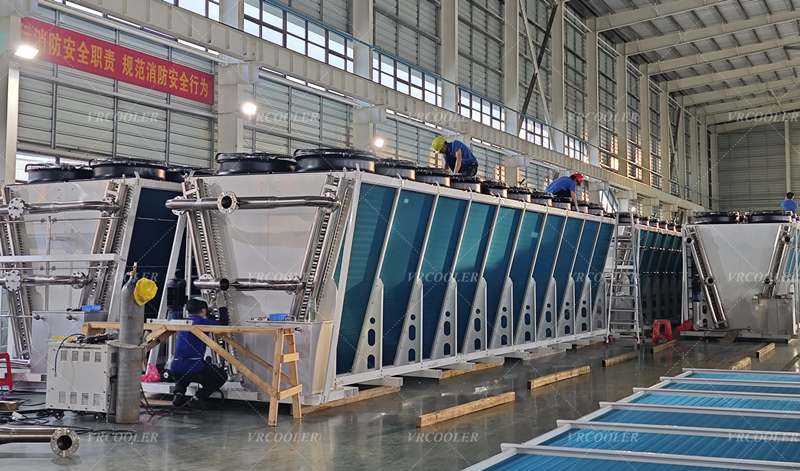

The 2-Circuit LT-HT Dry Cooler adopts a dual closed-loop heat exchange structure, perfectly matching the cooling needs of container CHP unit engine jacket water and intercoolers:
1. HT Circuit (Engine Jacket Water Cooling): Hot jacket water (85–95°C) from the CHP engine circulates inside the dedicated HT finned coils of the dry cooler, transferring heat to ambient air via sensible heat exchange.
2. LT Circuit (Intercooler Cooling): Hot charge air from the engine turbocharger (40–45°C) flows through the dedicated LT finned coils, cooled by ambient air to 35–40°C, optimizing combustion efficiency and reducing fuel consumption.
3. High-efficiency axial fans (optimized for compact space) force ambient air through both HT and LT coil surfaces simultaneously, ensuring efficient heat rejection for both circuits. The cooled jacket water and charge air flow back to the CHP unit, forming two independent closed loops, guaranteeing stable operation of the engine and intercooler.
The integrated compact design does not compromise cooling efficiency, and the fully closed dual loops avoid fluid contamination and scaling, adapting to the continuous operation requirements of container CHP units in various harsh environments.
1. Integrated Dual-Circuit & Ultra-Compact
Integrated HT (jacket water) and LT (intercooler) circuits in one unit, 30% smaller than two separate dry coolers; lightweight structure (20–600kg, depending on cooling capacity) ensures easy installation on container tops without increasing the container’s load-bearing pressure, maximizing the use of limited container space.
2. High-Efficiency Heat Transfer for Dual Circuits
Dedicated HT and LT finned coils (copper tubes + aluminum fins or stainless steel coils for corrosion resistance) with optimized fin density, maximizing heat transfer area in a small space. Heat rejection efficiency reaches 98%+ for both circuits, fully meeting the cooling needs of CHP unit engine jacket water and intercoolers under full load.
3. Vibration-Resistant & Durable
Reinforced frame and anti-vibration mounting brackets, specially designed to withstand the vibration generated by CHP unit operation; galvanized steel or stainless steel frame, with optional anti-corrosion coating, adapting to outdoor, coastal, desert, or industrial harsh environments where container CHP units are often deployed.
4. Energy-Saving & Low Noise
Equipped with low-noise axial fans, optional VFD (Variable Frequency Drive) speed regulation for each circuit independently, adjusting fan speed according to the real-time temperature of jacket water and intercooler fluid, reducing energy consumption by 25–35%; noise level ≤65dB, meeting the noise requirements of residential, industrial, and commercial areas.
5. Plug-and-Play & Low Maintenance
Pre-assembled modular design, factory-tested before delivery, directly connected to the CHP unit’s jacket water and intercooler cooling circuits; no water treatment or makeup water required, no scaling, daily maintenance only requires regular cleaning of fins, reducing on-site maintenance workload and ensuring continuous operation of CHP units.
Parameter | HT Circuit (Jacket Water) | LT Circuit (Intercooler) |
Cooling Capacity | 80–2000 kW | 20–500 kW |
Design Fluid | Water, Water-Glycol (30–50%) | Water, Water-Glycol (30–50%) |
Inlet/Outlet Temperature | 95°C/90°C | 45°C/40°C |
Coil Material | Copper Tubes + Aluminum Fins / Stainless Steel Coils | Copper Tubes + Aluminum Fins / Stainless Steel Coils |
Fan Type | Low-Noise Axial Fan, Optional VFD | Low-Noise Axial Fan, Optional VFD |
Frame Material | Hot-Dip Galvanized Steel / Stainless Steel | Hot-Dip Galvanized Steel / Stainless Steel |
Installation Type | Container Top / Sidewall Mounting | |
Our 2-Circuit LT-HT Dry Cooler is specially designed for container cogeneration (CHP) units and widely applicable to various projects:
- Industrial container CHP units (factory, petrochemical, pharmaceutical plants) for power and heat co-supply
- Commercial container CHP units (shopping malls, office buildings, hotels) for energy conservation and emission reduction
- Distributed energy container CHP units (industrial parks, residential communities) for on-site power generation and heat supply
- Mobile container CHP units (construction sites, remote areas, temporary energy supply) with dual cooling needs
- Gas-fired/diesel-fired container CHP units requiring compact, low-maintenance cooling solutions
We provide fully customized 2-Circuit LT-HT Dry Coolers according to your container CHP unit’s specific parameters: cooling capacity (HT/LT separately), fluid type, container size (20ft/40ft), installation position, ambient operating conditions (high temperature, coastal corrosion, etc.), and CHP unit model. Our engineering team offers professional thermal calculation, 3D drawing design, and one-stop service from production to installation guidance, ensuring perfect compatibility with your container CHP unit and optimal cooling performance.
For container CHP unit manufacturers and project contractors, our 2-Circuit LT-HT Dry Cooler solves the dual challenges of limited space and dual thermal demands, ensuring stable, efficient, and low-maintenance operation of CHP units. It is the ideal supporting cooling solution for compact, energy-saving container cogeneration systems. Contact our team today for a free custom consultation and quote.
