Working Principle of Remote High and Low Temperature Coolers for Generators

A generator remote high and low temperature radiator is a system that exchanges heat between a high temperature cooling medium (usually water or other cooling fluid) in the generator's cooling system and an external low temperature medium (such as atmospheric air). This helps to lower the temperature inside the generator and increase the efficiency of the overall power generation system.

Heat exchanger: The generator's cooling system includes a heat exchanger to transfer heat from the high temperature cooling medium (usually circulating water or coolant) to the external medium.

High Temperature Cooling Media: Generators generate a lot of heat during operation, especially in the coils and magnetic fields inside the generator. These hot components need to be cooled to ensure their proper operation.

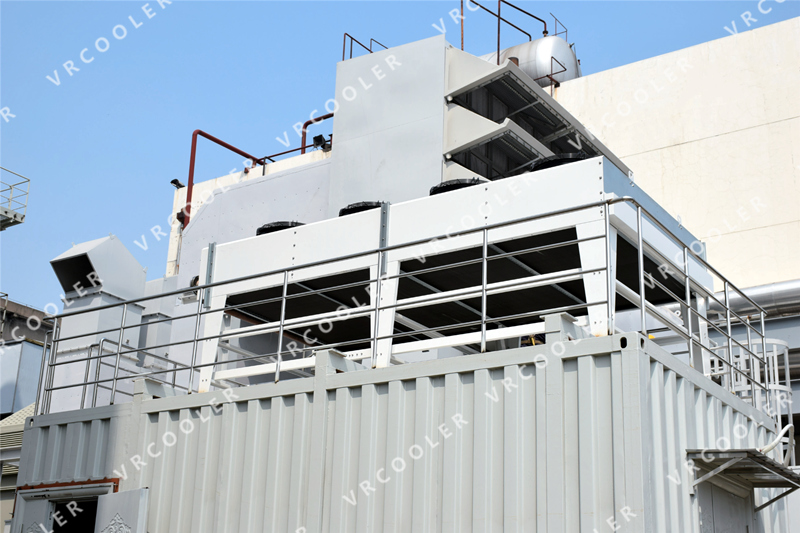

Remote Radiator: The high temperature cooling medium is transferred through a pipework system to a remote radiator. These radiators are usually placed in the area around the generator to take advantage of the surrounding low-temperature environment, such as outside air.

Heat exchange: In a remote heat sink, the high-temperature cooling medium is exchanged with the low-temperature external medium. Through the radiator's cooling surfaces, the high-temperature cooling medium releases heat, causing its temperature to drop, while the external medium absorbs this heat.

Cooling effect: The radiator is designed to maximise the heat exchange surface area to increase the cooling effect. As a result, the temperature inside the generator is reduced, helping to maintain the normal operating temperature range of the generator.

Circulation of the cooling medium: The cooling medium is circulated back into the generator to remove the heat generated again in the generator, completing the cooling process.

By exchanging heat between the high-temperature cooling medium and the external low-temperature medium, the remote high and low-temperature radiators help to improve the cooling efficiency of the generator, reduce the operating temperature of the system, reduce energy waste, and thus improve the reliability and efficiency of the entire power generation system.
