Wide Application of Finned Tube Heat Exchanger in Industry

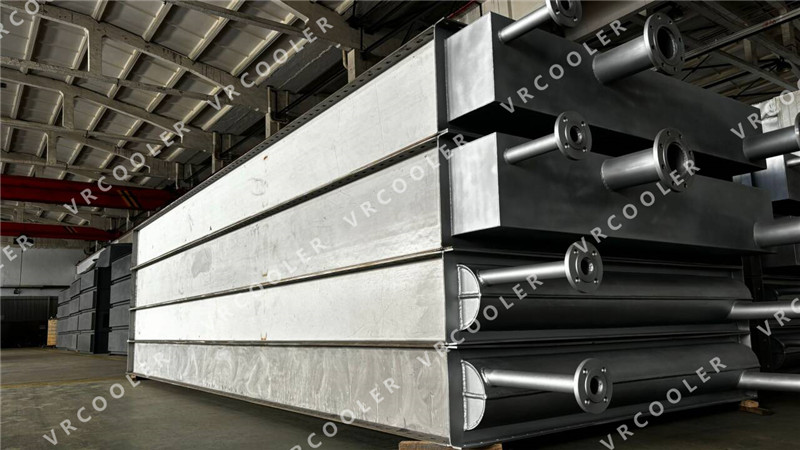

A finned tube heat exchanger consists of one or more inner tubes (usually metal tubes) and fins fixed to the outer walls of the tubes. These fins, which can be straight, spiral or other shapes, are used to increase the heat transfer surface area and to improve the heat transfer efficiency.

The principle of operation is as follows:

Fluid Flow: The fluid to be heated or cooled flows through the inner tube. This fluid can be water, oil, steam, etc.

Increased surface area of fins: The fins are fixed on the outer wall of the inner tube, increasing the effective heat transfer surface area on the outer surface of the inner tube. This increases the efficiency of heat transfer.

Heat transfer: As the fluid passes through the tube, the surface of the finned tube comes into contact with the fluid outside (e.g. air). Heat is transferred from the fluid in the inner tube through the metal tube wall to the fins, and then through the finned surface to the external fluid.

Heat transfer process: This design increases the surface area for heat transfer between the inner tube and the external medium and therefore improves the heat transfer efficiency. The external fluid (e.g. air) can come into contact with the finned tube surface by forced convection or natural convection, absorbing or releasing heat.

Applications

Chemical industry: Used to transfer heat in chemical processes such as heating or cooling fluids in reactors.

Power plants: for transferring heat in power generation processes, e.g. cooling generators or heating boiler water.

Food processing: for transferring heat in food processing, e.g. heating or cooling fluid foodstuffs.

Advantages

Finned tube heat exchangers offer a number of advantages over other types of heat exchangers, including:

Increased Heat Transfer Surface Area: The finned tube design effectively increases the heat transfer surface area and improves heat transfer efficiency.

Adaptable: Finned tube heat exchanger can adapt to a variety of fluid, pressure and temperature conditions.

Overall, finned tube heat exchanger is a common and highly efficient heat exchange equipment widely used in many industrial and commercial applications, providing reliable heat transfer and energy utilisation in the system.
