Modern data centers and high-performance computing environments are increasingly adopting immersion cooling technology to manage extremely high server heat densities. While immersion cooling efficiently removes heat from electronic components, an external system is still required to reject that heat to the environment. Air cooled heat rejection units provide a reliable and efficient solution for this task.
Thermal Challenges in Immersion Cooling
Immersion cooling systems can support rack densities exceeding 100 kW per rack, significantly higher than traditional air-cooled data centers. This creates a large thermal load that must be continuously removed.
Without an effective heat rejection system, the coolant temperature will rise, potentially affecting server performance and reliability.
Air cooled heat rejection units address this challenge by transferring heat from the liquid cooling loop to ambient air.
How Air Cooled Heat Rejection Systems Work
The heat rejection process typically includes the following steps:
Dielectric fluid absorbs heat from servers immersed in the cooling tank
Heat is transferred to a secondary coolant loop via a heat exchanger or CDU

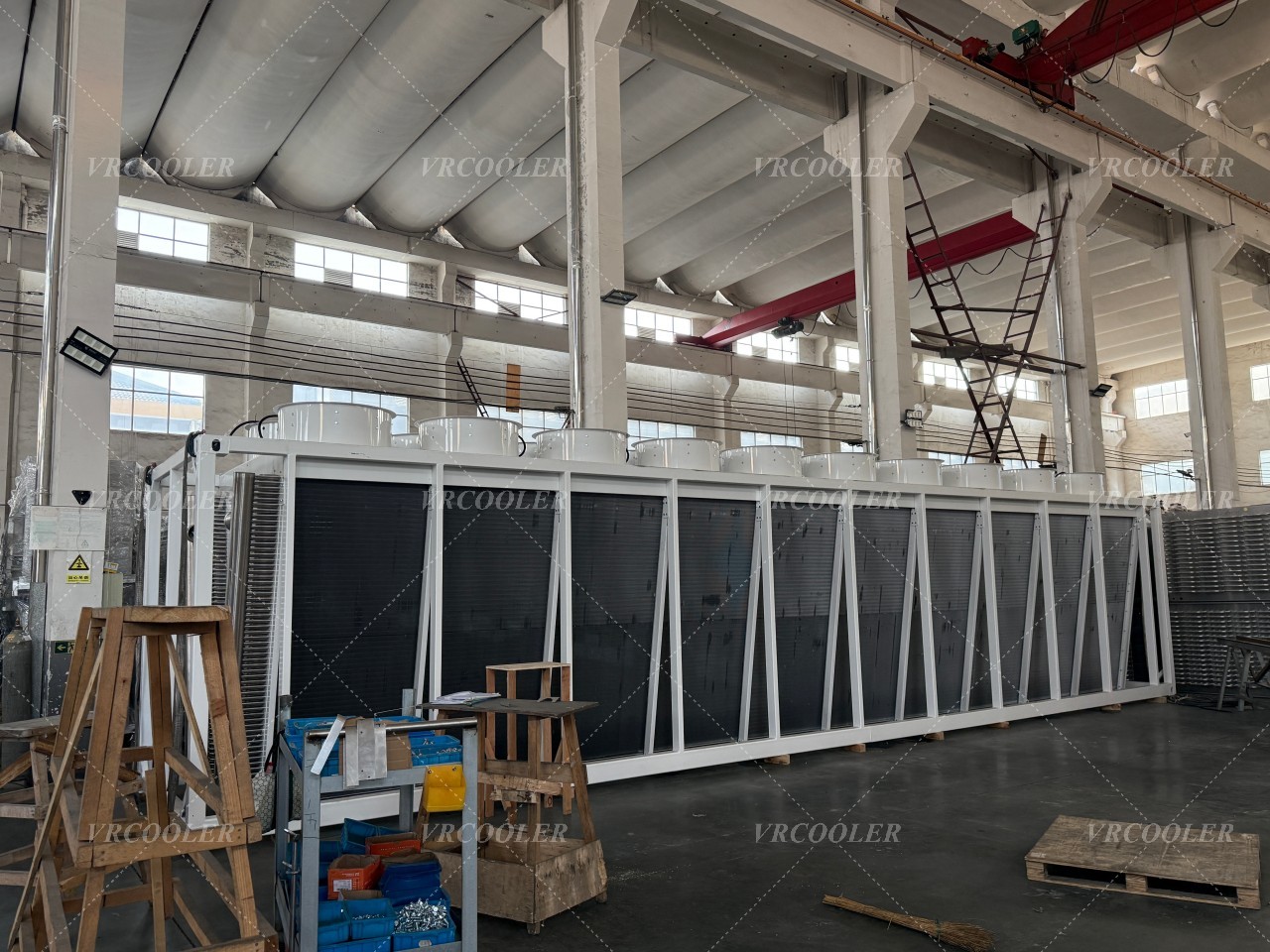

The secondary coolant circulates to an outdoor air cooled heat rejection unit
Ambient air flows across finned heat exchanger coils to remove the heat
Large axial fans generate airflow, enabling efficient heat dissipation even at high heat loads.
Design Considerations for Immersion Cooling Heat Rejection Units
When designing heat rejection equipment for immersion cooling facilities, several factors must be considered:
Cooling Capacity
The unit must be sized according to the total IT load of the data center, which can range from hundreds of kilowatts to multiple megawatts.
Ambient Temperature
Outdoor heat rejection equipment must operate effectively across seasonal temperature variations.
Energy Efficiency
High-efficiency fans and optimized coil design help reduce overall energy consumption.
Noise Control
Because many data centers are located near urban areas, low-noise fan systems are often required.
Corrosion Protection
Outdoor units must withstand rain, dust, and environmental exposure.
Advantages Compared with Cooling Towers
Air cooled heat rejection units offer several benefits compared with traditional evaporative cooling towers:
No water consumption
No risk of legionella bacteria
Lower maintenance requirements
Simplified installation
Reduced chemical water treatment
These benefits make them especially attractive for modular data centers and distributed computing facilities.
Future Trends in Immersion Cooling Heat Rejection
As immersion cooling technology evolves, heat rejection systems are also improving. Emerging developments include:
Hybrid air and adiabatic cooling systems
High-efficiency aluminum heat exchangers
Smart monitoring and remote diagnostics
Integration with renewable energy powered data centers
These innovations help ensure that immersion cooling remains a scalable and sustainable solution for future high-density computing environments.
