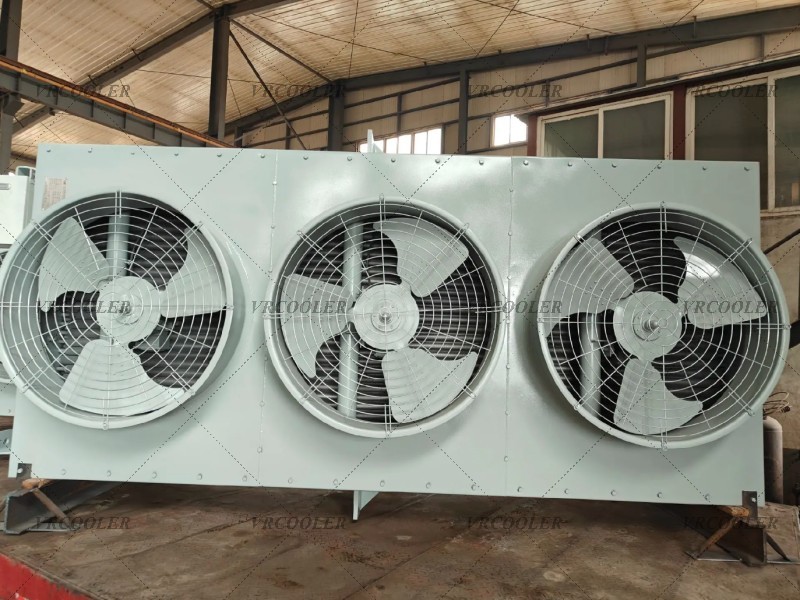

OFAF Transformer Oil Coolers for High Capacity Power Transformer Cooling

OFAF transformer oil coolers are an important part of the cooling system used in large power transformers. OFAF stands for Oil Forced Air Forced, which means the transformer oil is circulated by pumps and cooled by air moved by fans. This cooling method is commonly used in medium- and large-capacity transformers where natural cooling alone is not enough to remove the heat generated during operation.

In a power transformer, electrical losses in the core and windings are converted into heat. If this heat is not removed effectively, the transformer temperature will rise, which can accelerate insulation aging, reduce efficiency, and shorten service life. An OFAF cooling arrangement helps control this temperature by forcing hot insulating oil through an external oil cooler, where the heat is transferred to ambient air.

How an OFAF Transformer Oil Cooler Works

In an OFAF system, hot oil from the transformer flows to the cooler through a forced circulation loop. Pumps move the oil continuously through the cooling unit. Inside the cooler, the oil passes through tubes while fans force ambient air across the external heat transfer surface. The cooled oil then returns to the transformer tank to absorb more heat.

Because both the oil and air sides are forced, the system can remove heat more efficiently than ONAN or ONAF cooling methods under high-load conditions. This makes OFAF suitable for transformers operating at higher ratings or in demanding environments.

Why OFAF Cooling Is Used

OFAF cooling is selected when a transformer requires higher heat dissipation capacity than natural oil circulation or natural air cooling can provide. It is especially useful for:

• large power transformers

• substation transformers

• generator step-up transformers

• furnace transformers

• rectifier transformers

• industrial transformers with high continuous load

By improving heat removal, OFAF cooling helps transformers carry higher loads while maintaining safe oil and winding temperatures.

Main Advantages of OFAF Transformer Oil Coolers

An OFAF transformer oil cooler offers several important benefits:

• high cooling efficiency due to forced oil and forced air circulation

• better temperature control for transformer oil and windings

• support for higher transformer loading

• extended insulation life by reducing thermal stress

• improved operating reliability in continuous-duty service

• more stable performance under fluctuating load conditions

• flexible installation as external cooler banks or integrated cooler units

For high-capacity transformers, these advantages are critical for safe and economical operation.

Common Construction and Materials

OFAF transformer oil coolers are usually built as radiator-type, finned tube, or plate-fin heat exchangers depending on design preference and required performance. Common materials include:

• carbon steel for structural parts

• copper tubes or steel tubes for oil flow passages

• aluminum fins for improved air-side heat transfer

• corrosion-protected casings and fan assemblies

Material selection depends on transformer oil type, ambient conditions, corrosion risk, and expected service life.

Typical Applications

OFAF transformer oil coolers are widely used in:

• electrical substations

• thermal power plants

• hydroelectric stations

• wind farm substations

• solar power plants

• steel mills

• mining operations

• chemical and petrochemical plants

• rail traction power systems

• heavy industrial power distribution networks

In these applications, reliable transformer cooling is essential for grid stability and equipment protection.

Key Design Considerations

When selecting or designing an OFAF transformer oil cooler, engineers usually consider:

• transformer heat loss and cooling duty

• oil flow rate

• oil inlet and outlet temperature

• ambient air temperature

• required cooling capacity

• fan airflow volume

• allowable oil-side pressure drop

• installation space

• noise requirements

• corrosion protection needs

• redundancy of pumps and fans

Proper sizing is important because an undersized cooler may lead to overheating, while an oversized unit may increase cost and operating energy use.

Maintenance of OFAF Transformer Oil Coolers

Like any transformer cooling equipment, OFAF oil coolers require regular maintenance to ensure reliable performance. Typical maintenance includes:

• cleaning air-side fins or heat transfer surfaces

• checking fan operation

• inspecting oil pumps and oil flow

• monitoring oil temperature trends

• checking for oil leakage

• inspecting corrosion and structural condition

• verifying control signals and cooling stage operation

A clean and properly functioning cooler helps maintain transformer efficiency and reduces thermal risk.

Why OFAF Cooling Matters

Transformer insulation life is closely related to operating temperature. Every improvement in cooling performance helps reduce aging of insulation paper and oil. For utilities and industrial users, this means longer transformer life, fewer failures, and better return on investment. In systems with heavy load demand, OFAF cooling is often one of the most practical solutions for maintaining safe transformer operation.

Conclusion

An OFAF transformer oil cooler is a high-efficiency cooling solution for large transformers that require dependable heat removal. By using forced oil circulation and forced air cooling, it helps control transformer temperature, protect insulation, and support long-term reliable service. In substations, power plants, and industrial electrical systems, OFAF coolers play a vital role in keeping transformers operating safely under demanding conditions.
