What is the working principle of a tube and fin heat exchanger?

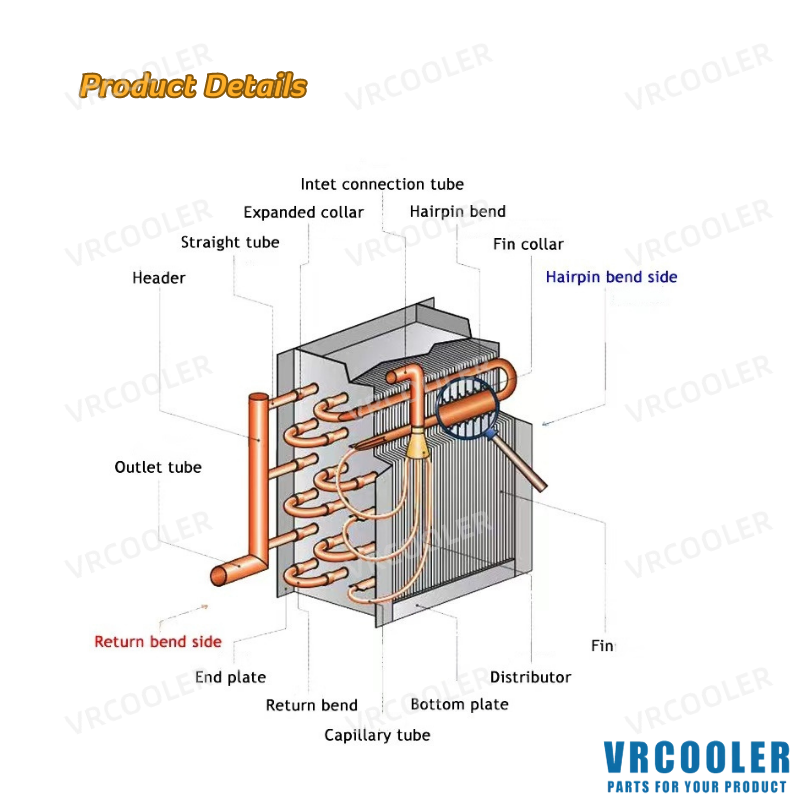

The working principle of a tube and fin heat exchanger is the transfer of heat from one fluid to another through the interaction of the tubes and fins. Specifically, the tube and fin heat exchanger works as follows:

Fluid 1 enters the inside of the tube fin heat exchanger from the inlet of the tube and transfers heat to the fins through the heat transfer from the inner wall of the tube.

The fins transfer the received heat to fluid 2, which warms or cools it down, thus achieving heat exchange. Fluid 2 can enter the tube and fin heat exchanger through another set of tubes or dissipate heat directly through a heat sink outside the heat exchanger.

Fluid 1 cools or warms up after the heat exchange and exits the tube and fin heat exchanger to complete the heat exchange process.

Fluid 2 cools or warms up after heat exchange and exits from the tube and fin heat exchanger to complete the heat exchange process.

In summary, the working principle of the tube and fin heat exchanger is to transfer heat from one fluid to another through the interaction of the tube and fins, thus achieving heat exchange. The presence of fins increases the heat exchange surface area and improves the heat transfer efficiency, making tube and fin heat exchangers widely used in many industrial sectors.
