What is the difference between a chilled water coil and hot water coil?

Views: 4     Author: Site Editor     Publish Time: 2023-04-27      Origin: Site

What is the distinction between chilled and hot water coils?


The fundamental distinction between a chilled water coil and a hot water coil is the heat transfer direction. Heat is transported from the air to the chilled water in a chilled water coil, whereas heat is transmitted from the hot water to the air in a hot water coil.

A hot water coil circulates hot water through a network of copper tubes. The tubes are intended to collect heat from the hot water and transfer it to the air traveling over the coil's outside. This process heats the air and delivers heat to the inside space.

Hot water coils are often used in hydronic heating systems, which heat a building with hot water or steam. They can also be found in air handlers and fan coil systems, where they can be utilized to deliver localized heating in certain regions of a structure.

Chilled water coils, on the other hand, are utilized to cool a structure. They function by circulating cooled water through a series of copper tubes that absorb heat from the air flowing over the coil's outside. This procedure cools the air and supplies cool air to the inside environment.

Chilled water coils are popular in air conditioning systems, especially in big commercial buildings. They can be used with air handlers and ducting to provide a comprehensive cooling system that distributes cool air throughout a building.

In conclusion, while both hot water coils and chilled water coils employ copper tubes to transfer heat, they work in opposing directions and have different purposes. Hot water coils offer heating by transferring heat from hot water to air, whereas chilled water coils provide cooling by transferring heat from air to chilled water.

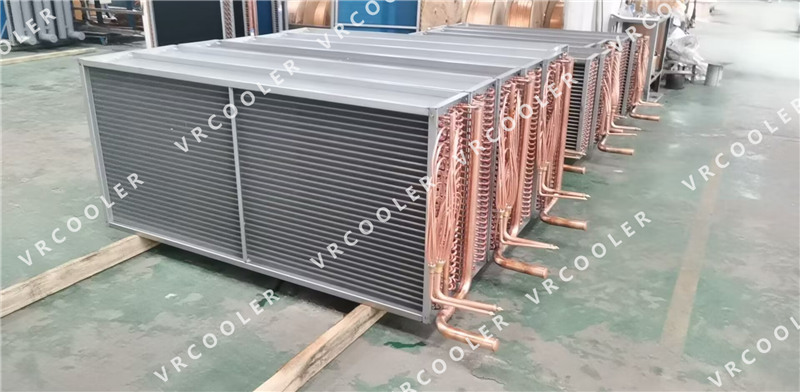

Copper Tube Condenser Coil 2


Another distinction between hot water and chilled water coils is the temperature of the fluid cycled through the coil. Hot water coils normally run between 140 and 180 degrees Fahrenheit (60 and 82 degrees Celsius), while chilled water coils typically work between 40 and 45 degrees Fahrenheit (4 and 7 degrees Celsius).

The temperature of the fluid utilized in the coil is governed by the HVAC system's and the indoor environment's specific needs. In a heating system, for example, the hot water temperature can be adjusted to provide the appropriate amount of warmth, whereas in a cooling system, the chilled water temperature can be adjusted to provide the desired level of cooling.

Hot water coils and chilled water coils may appear identical in appearance because they both consist of a series of copper tubes. However, the coil's construction may differ depending on the application. Hot water coils, for example, may have stronger tubes and fins to tolerate greater temperatures, whereas chilled water coils may have thinner tubes and fins to improve heat transfer.

The primary distinction between a hot water coil and a chilled water coil is their purpose and heat transfer direction. Hot water coils are used to heat the water, whereas chilled water coils are used to cool the water. Both types of coils are critical components of HVAC systems, serving as a source of heat or cold air for indoor environments.


Aside from temperature and purpose, hot water coils and chilled water coils may differ in terms of where they are located within an HVAC system.

Hot water coils are typically found in air handling units, where they can heat the air that is distributed throughout a building. Depending on the heating system, they may also be found in ducts, radiators, or baseboard heaters.

In contrast, chilled water coils are often situated downstream of the cooling equipment, such as a chiller or heat pump. Depending on the cooling system, they may be found in air handling units, fan coil units, or chilled beams.

Another distinction between hot water and chilled water coils is how they are managed. The hot water temperature of a heating system can be controlled by a thermostat, which adjusts the temperature of the water moving through the coil. The chilled water temperature in a cooling system can be controlled by a control valve, which regulates the chilled water flow rate to maintain the desired temperature.

To guarantee optimal functioning, both hot water and chilled water coils must be cleaned and inspected on a regular basis. Dirt and debris on the coil fins can impede heat transfer efficiency, resulting in lower heating or cooling capacity and increased energy consumption.

Overall, hot water coils and chilled water coils are important components of HVAC systems because they provide heating or cooling as needed by the indoor environment. The coil's specific kind and design will be determined by the needs of the building and the HVAC system.
