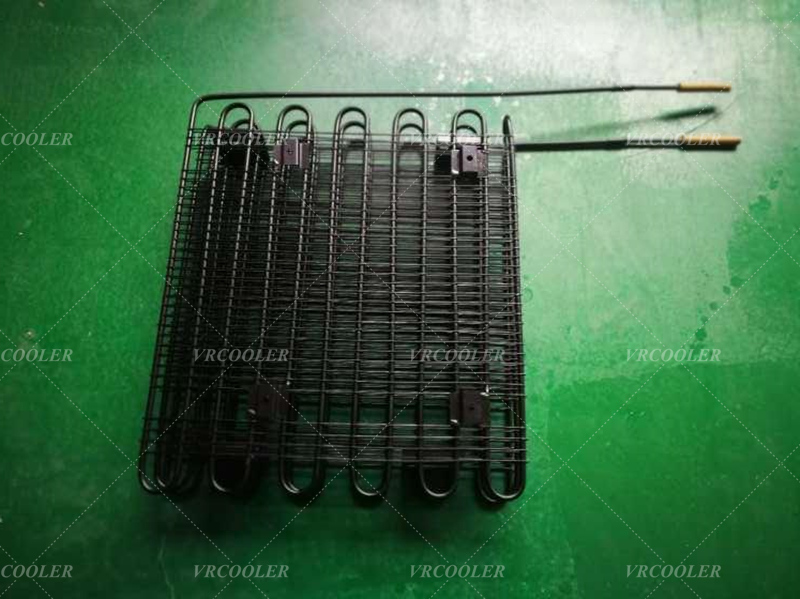

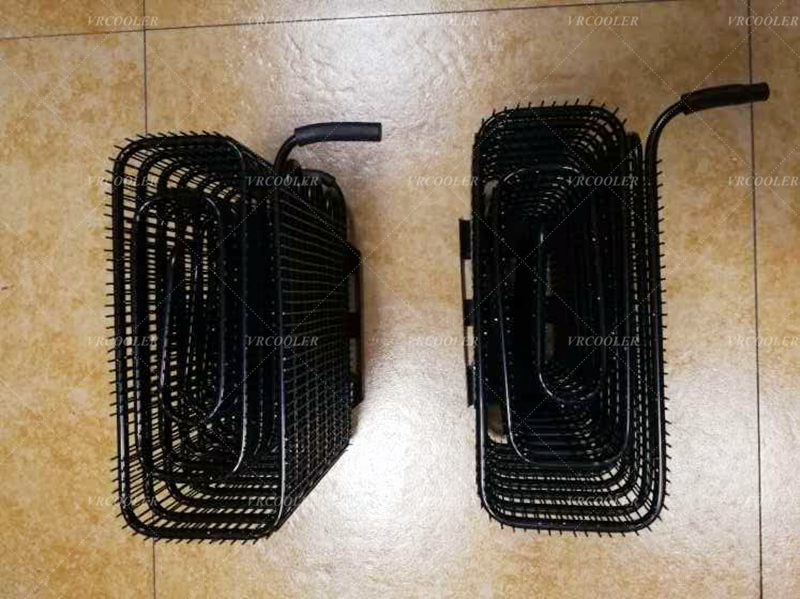

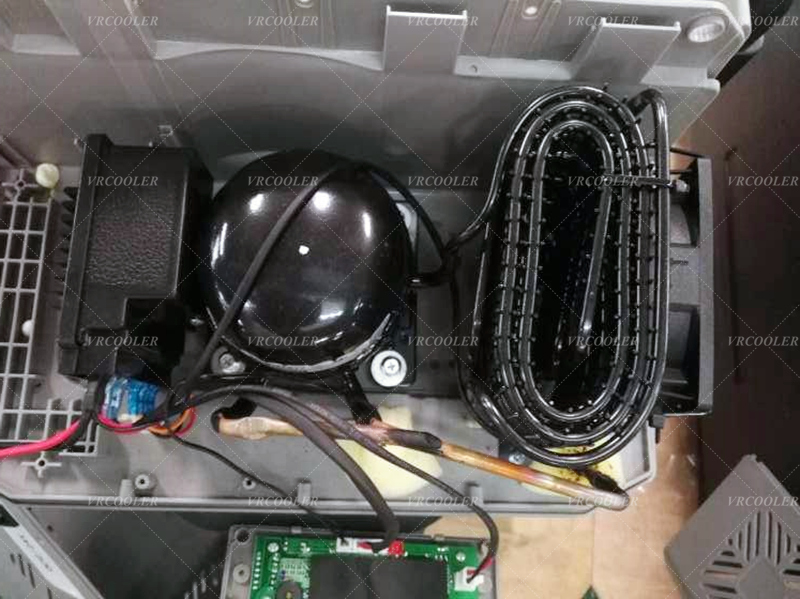

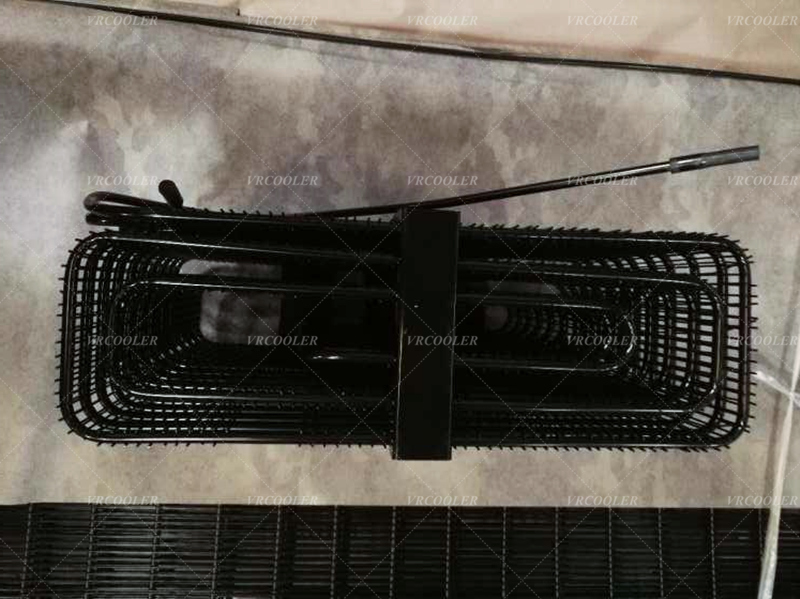

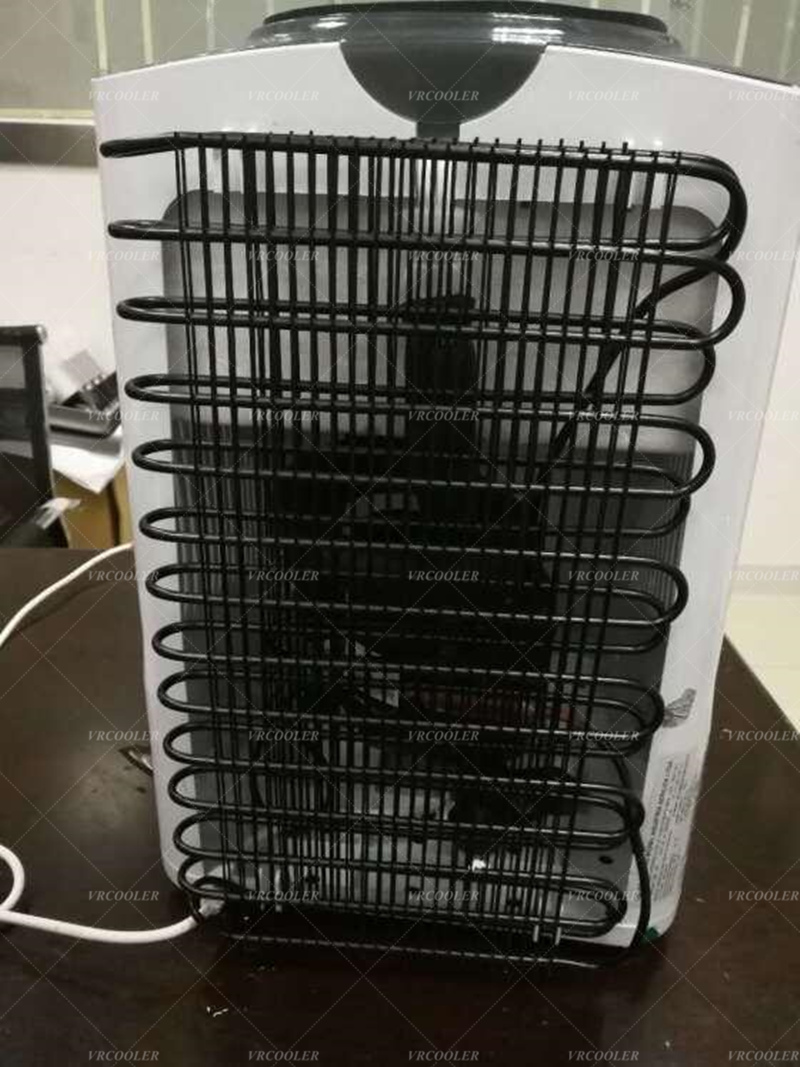

What is a Wire Tube Condenser?

The wire tube condenser is a heat exchange device widely used in refrigeration, air conditioning and industrial processes. It uses long and thin pipes (usually copper or stainless steel) to exchange heat between the cooling medium and the substance to be cooled.

The following is a detailed introduction to the wire tube condenser:

Structural features

Pipeline design: The wire tube condenser consists of many long and thin pipes, which are usually arranged in spiral or straight lines to increase the heat transfer area.

Material: Common materials include copper, stainless steel and aluminum, which have good thermal conductivity and corrosion resistance.

Cooling medium: The cooling medium flowing inside the condenser can be water or other coolants.

Working principle

Heat exchange: The gas or liquid to be cooled flows through the pipes of the condenser and exchanges heat with the cooling medium flowing outside the pipes. The heat released by the substance to be cooled is absorbed by the cooling medium, thereby achieving a cooling effect.

Phase change: In the refrigeration system, the process of condensing steam into liquid releases a lot of heat, and the condenser plays a key role in this process.

Application field

Refrigeration and air conditioning: Widely used in refrigeration cycles to help change the refrigerant from a gas state to a liquid state.

Industrial Cooling: Cooling systems used in various industrial processes, such as chemical, food processing and power generation.

Heat Recovery: Can be used in heat recovery systems to improve energy efficiency.

Advantages

High efficiency: Due to the large surface area, the heat exchange efficiency of the wire tube condenser is high.

Small footprint: The compact design is suitable for applications with limited space.

Strong adaptability: Different numbers and arrangements of pipes can be designed according to different needs.
