What Is Steam Heat Exchanger

A steam heat exchanger is a device designed to transfer heat between steam (or vapor) and another fluid, typically a liquid. These heat exchangers play a crucial role in various industrial processes, power generation, and heating applications. The basic principle involves the exchange of thermal energy between the steam and the fluid to achieve heating or cooling effects. There are different types of steam heat exchangers, and their specific designs vary based on the application requirements.

Here are some common types of steam heat exchangers:

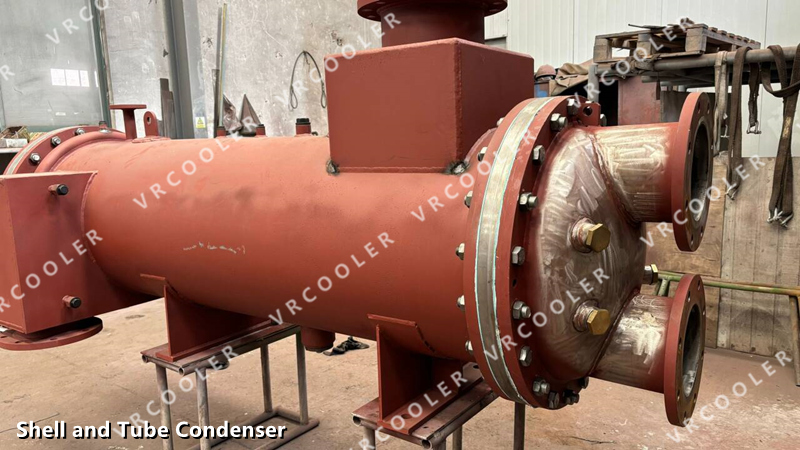

Shell and Tube Heat Exchangers:

This type consists of a shell (casing) that contains a bundle of tubes. Steam flows through the tubes, and the fluid to be heated or cooled circulates around the outside of the tubes. Heat is transferred through the tube walls.

Plate Heat Exchangers:

Plate heat exchangers use a series of plates with small flow channels to facilitate heat transfer between the steam and the fluid. The plates are stacked and alternate between the hot and cold fluids. They are compact and efficient.

Steam Coil Air Heaters:

Steam coils are often used for heating air in HVAC systems or industrial processes. Steam flows through the coil, and air passes over the coil, absorbing heat from the steam.

Steam-to-Water Heat Exchangers:

In these systems, steam is used to heat water directly. This can be seen in applications such as district heating or industrial processes where hot water is required.

The operation of a steam heat exchanger typically involves the following steps:

Steam Inlet:

High-pressure steam enters the heat exchanger from a steam generator or another source.

Heat Transfer Surface:

The steam comes into contact with the heat transfer surface (tubes, plates, or coils), and heat is transferred to or from the steam.

Fluid Circulation:

The fluid to be heated or cooled circulates around the heat transfer surface. The heat exchange occurs through conduction.

Condensation (if applicable):

In certain applications, steam may condense back into liquid form, releasing additional heat.

Steam Outlet:

The now-cooled or heated steam exits the heat exchanger.

Fluid Outlet:

The heated or cooled fluid exits the heat exchanger for further use in the process.

Steam heat exchangers are used in a wide range of industries, including power generation, chemical processing, oil and gas, food and beverage, and HVAC. Their versatility and efficiency make them essential components in various heating and cooling systems.
