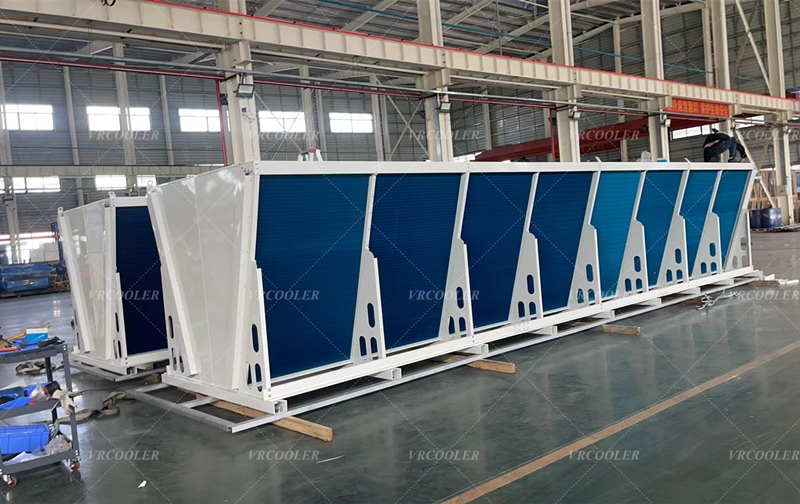

What Engine Circuits Are Typically Connected To A Dry Cooler for Natural Gas Generator Engine

In a natural gas generator engine, a dry cooler is typically used as a remote radiator to reject heat from one or more liquid cooling circuits. Because gas engines operate continuously and at high thermal loads, the cooling system is often divided into multiple circuits, each with different temperature levels and control requirements.

1. Jacket Water (HT / LT Engine Cooling Circuit)

Function:
Removes heat from the engine block, cylinder liners, and cylinder heads.

Typical characteristics:

• Cooling medium: Water or water–glycol mixture

• Supply temperature to dry cooler:

• HT circuit: ~80–90 °C

• LT circuit (if separated): ~60–70 °C

• Return temperature to engine: 5–10 °C lower

• Heat load: Largest portion of engine waste heat

Connection to dry cooler:

• Always connected

• Often uses 2-way or 3-way control valves to maintain stable engine temperature under varying ambient conditions

2. Charge Air Cooler (CAC / Intercooler) Circuit

Function:
Cools the turbocharged intake air to increase air density and improve combustion efficiency.

Typical characteristics:

• Cooling medium: Water or water–glycol

• Inlet temperature to CAC: ~30–40 °C

• Outlet temperature: ~40–55 °C

• Heat load: High and variable with engine load

Connection to dry cooler:

• Very commonly connected

• May use a separate low-temperature (LT) dry cooler section or a dedicated cooler

• Temperature control is critical for engine efficiency and emissions compliance

3. Lube Oil Cooling Circuit

Function:
Removes heat from engine lubricating oil to maintain viscosity and protect bearings.

Typical characteristics:

• Cooling medium: Water or water–glycol (via oil-to-water heat exchanger)

• Oil operating temperature: ~85–95 °C

• Water side temperature: Similar to jacket water or LT circuit

Connection to dry cooler:

• Indirectly connected

• Lube oil is cooled via a plate or shell-and-tube oil cooler, which then rejects heat to the dry cooler circuit

4. Gas Cooler / Fuel Gas Conditioning Circuit (When Applicable)

Function:
Cools natural gas after compression or pressure reduction to maintain stable fuel properties.

Typical characteristics:

• Cooling medium: Water or glycol

• Gas inlet temperature: Can exceed 60–80 °C

• Required outlet temperature: Application-specific

Connection to dry cooler:

• Common in large gas engine power plants

• Often integrated into the LT cooling circuit

5. Generator (Alternator) Cooling Circuit (Optional)

Function:
Removes heat from stator windings and bearings.

Typical characteristics:

• Cooling medium: Water or water–glycol (for water-cooled generators)

• Temperature level: Typically LT range

Connection to dry cooler:

• Optional, depending on generator design

• Often combined with the CAC cooling loop

6. Typical Dry Cooler Configuration

In practice, dry cooler systems are designed as:

• Single-circuit dry cooler:

• Jacket water + lube oil heat combined

• Dual-circuit dry cooler:

• HT circuit (jacket water)

• LT circuit (CAC, gas cooler, generator)

• Multi-fan, multi-row configuration:

• Independent temperature control for each circuit

Free cooling operation and variable-speed EC fans are frequently used to reduce parasitic power consumption.

7. Summary Table

8. Conclusion

A dry cooler for a natural gas generator engine typically serves multiple cooling circuits, with jacket water and charge air cooler circuits being the primary loads. Lube oil, fuel gas, and generator cooling are commonly integrated depending on engine size and plant design.
