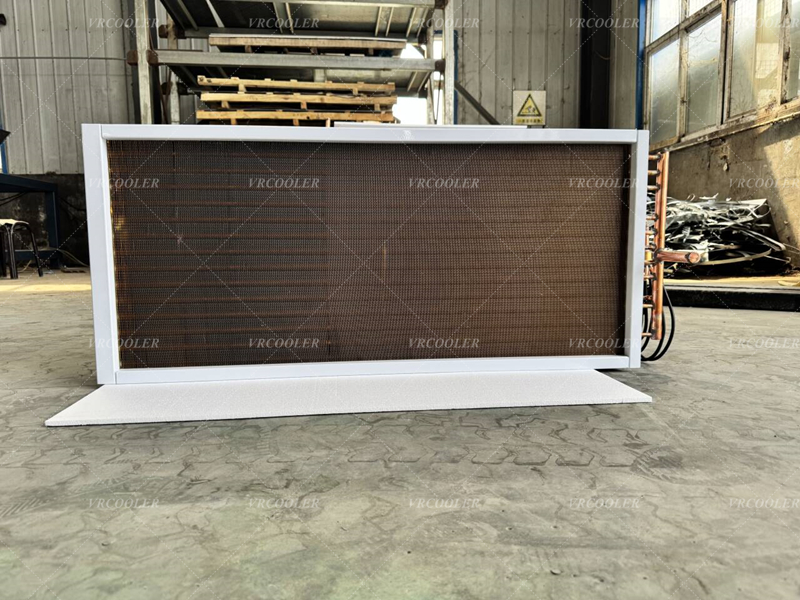

What Causes Condenser Coil Failure & Heat Exchanger Fouling Meaning

Condenser coils and other tube‑fin heat exchangers gradually lose performance or suffer permanent failure in field operation. Fouling is one of the most frequent trigger factors. Many system operators overlook early fouling signs until high pressure, capacity drop or coil breakdown appears.

What is Heat Exchanger Fouling (Meaning)

Fouling is the accumulation of unwanted substances on heat‑transfer surfaces (fin surface, outer tube wall, inner tube bore). These deposits build a thermal insulation layer, blocking heat transfer between refrigerant and air.

Main fouling categories for air‑cooled condenser coils:

1. Particulate fouling: Dust, pollen, industrial lint, sand, insect debris stuck on fin gaps. Most common for outdoor units.

2. Bio‑fouling: Mold, algae growing in humid, damp coil environments.

3. Corrosive fouling: Salt spray (coastal area), chemical fumes react with metal, forming corrosion deposits.

4. Scale fouling: Mainly for liquid‑side coils; mineral scale from cooling water on inner tube walls.

Core impact of fouling: Heat transfer efficiency drops, system running pressure rises, power consumption increases, and premature coil failure may occur if left untreated.

Common Causes of Condenser Coil Failure

1. Fouling & blockage (top reason)

Dust and debris clog fin passages. Airflow reduces dramatically. Condenser cannot reject designed heat. High discharge pressure happens. Long‑term overpressure accelerates tube fatigue, fin collapse.

2. Corrosion damage

• Coastal salt‑air, chemical plant exhaust, industrial polluted atmosphere attack aluminum fins and copper tubes.

• Fin corrosion spreads to tube joints, leading to micro‑leaks of refrigerant. Once refrigerant leaks, the whole system loses cooling function.

3. Physical mechanical damage

Transport vibration, installation impact, improper cleaning (high‑pressure jet bending fins). Crushed fins distort airflow path and create local stress points on tubes.

4. Thermal stress & cyclic fatigue

Repeated large temperature swings during on‑off cycles create continuous expansion‑contraction stress. Micro‑cracks may appear at tube‑expansion joints after long‑time cycling.

5. Improper system operation

Over‑charging refrigerant, wrong fan speed, insufficient ventilation space around condenser unit. The coil runs continuously above design pressure and temperature, speeding up aging.

6. Manufacturing or material defects

Poor tube‑fin expansion, weak welding joints, unspecified material selection for harsh working environment. Will trigger early‑stage leakage under normal operating conditions.

Typical Symptoms You Should Watch

• Higher‑than‑normal condensing pressure

• Unit high‑pressure alarm triggered frequently

• Reduced cooling / heating capacity

• Higher power draw

• Visible dirt, discoloration, rust on coil surface

• Refrigerant leakage detected

Practical Prevention & Mitigation Tips

1. Regular cleaning schedule to remove dust and particulate fouling. Avoid excessive high‑pressure water jet that bends fins.

2. Select anti‑corrosion coating (epoxy, hydrophilic coating) for coastal or heavy‑industrial sites; upgrade to stainless‑steel tubes for aggressive environments.

3. Keep clear ventilation space around condenser coil; maintain correct fan performance.

4. System commissioning: confirm correct refrigerant charge and operating parameters.

5. When existing coil is beyond repair: VRCOOLER provides direct replacement condenser coils, manufactured per your drawing or old‑coil dimensions.
