U Shaped Or C Shaped Residential Heat Pump Coil for Heat Pump Systems

Residential heat pump systems can utilize both U-shaped and C-shaped coils in their heat pump coils.

Here's a brief comparison of the two coil shapes:

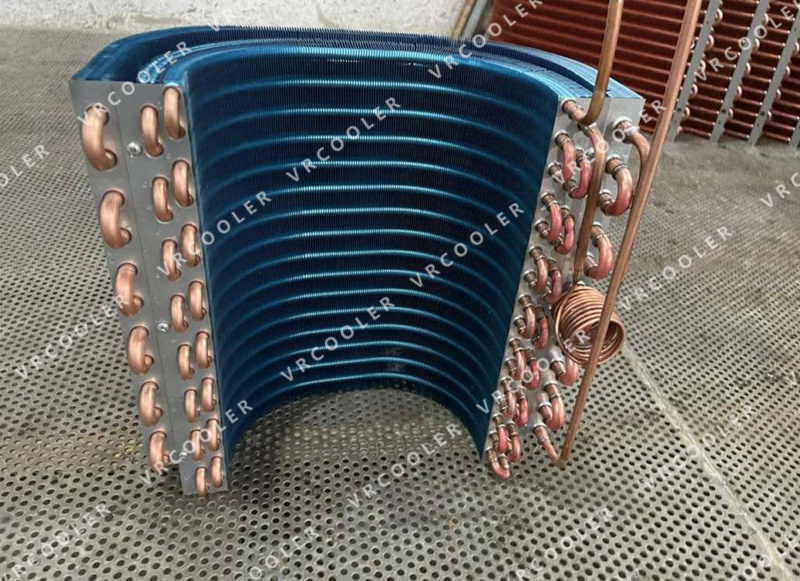

U-Shaped Coil:

Design: U-shaped coils have a U-shaped configuration, where the refrigerant flows through the coil in a serpentine pattern.

Heat Transfer Efficiency: U-shaped coils typically provide better heat transfer efficiency due to their larger surface area and longer refrigerant flow path. The extended length allows for more contact between the refrigerant and the coil surface, enhancing heat exchange.

Compactness: U-shaped coils tend to be more compact compared to C-shaped coils, allowing for easier installation in space-limited residential applications.

Airflow: The U-shaped design can facilitate better airflow around the coil, aiding in heat exchange and ensuring efficient cooling or heating performance.

Durability: U-shaped coils are generally more robust and resistant to damage or deformation, making them suitable for long-term use in residential heat pump systems.

C-Shaped Coil:

Design: C-shaped coils have a C-shaped configuration with a single pass for the refrigerant flow.

Cost: C-shaped coils are often less expensive to manufacture compared to U-shaped coils, which may translate to a more affordable option for residential heat pump systems.

Size Flexibility: C-shaped coils can be designed with varying sizes and dimensions to accommodate different space requirements and installation constraints.

Maintenance: C-shaped coils may be easier to clean and maintain due to their simpler design and accessibility.

Performance: While C-shaped coils may not provide the same heat transfer efficiency as U-shaped coils, they can still deliver effective heating and cooling performance in residential applications.

The choice between U-shaped and C-shaped coils for a residential heat pump system depends on various factors, including the specific requirements of the application, available space, budget, and desired performance.
