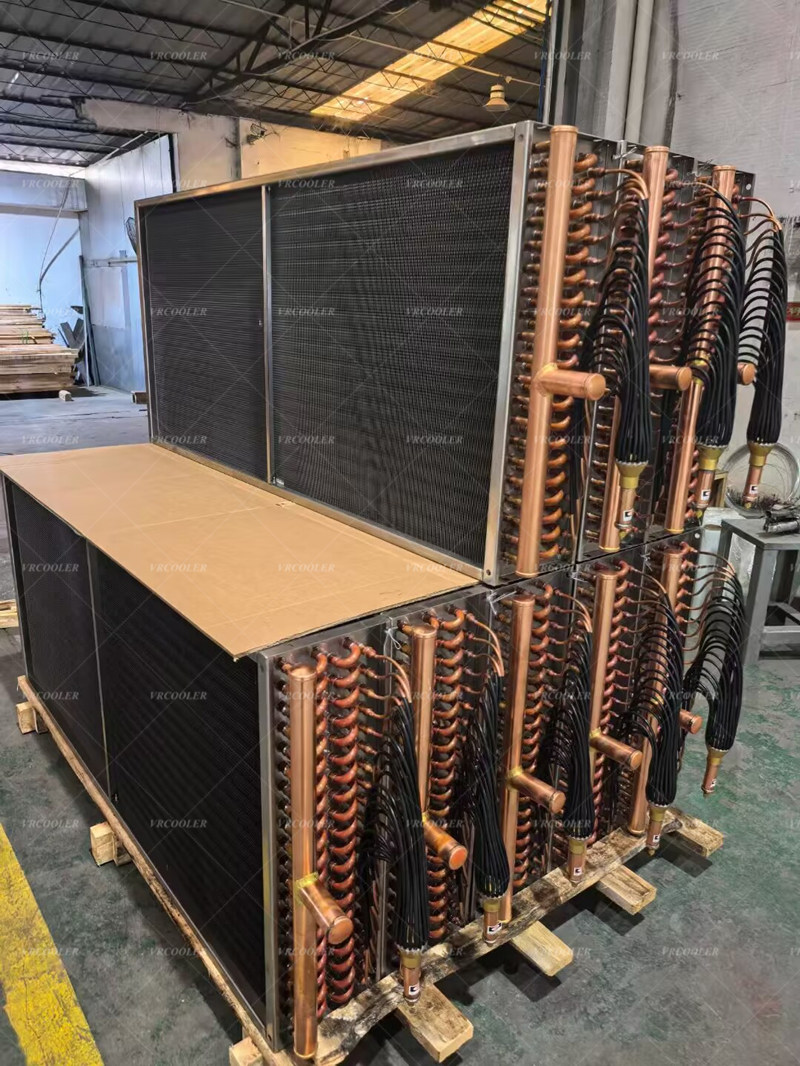

Tube-fin Heat Exchangers | Applications Include Underwater Compressed Air Energy Storage / Various Gas Energy Storage Systems

High-efficiency tube-fin heat exchangers are specifically designed for underwater compressed air energy storage (UW-CAES), onshore compressed air energy storage, and advanced gas energy storage projects. They undertake core heat exchange tasks such as cooling after air compression, preheating before expansion, interstage heat exchange, and waste heat recovery, and are suitable for large-scale power plant-level gas energy storage conditions.

Applicable Scenarios:

Underwater Compressed Air Energy Storage Systems (UW-CAES)

Onshore Traditional Compressed Air Energy Storage (CAES)

Adiabatic Compressed Air Energy Storage (AACAES)

Salt Cavern/Mine/Tank Gas Energy Storage Power Stations

Other Novel Gas Expansion, Compression, and Thermal Energy Storage Projects

Its core role in gas energy storage: The air compressor's interstage cooling system generates significant heat during multi-stage compression of the air. This heat is rapidly cooled via a heat exchanger, reducing compression power consumption and improving overall system efficiency.

Final cooling after compression brings the high-temperature, high-pressure compressed air to a set temperature before it is sent to an underwater gas storage chamber/high-pressure tank, stabilizing storage pressure and volumetric efficiency.

Expander inlet preheating/regenerative heating utilizes recovered waste heat to preheat the inlet air, improving expansion power generation output and cycle efficiency, achieving cascaded utilization of waste heat in the energy storage system.

The system's closed-loop temperature control system stabilizes the operating temperature of the gas medium, protecting the compressor, expander, and pipeline seals, making it suitable for high-pressure, high-humidity, and corrosive underwater environments.

Heat exchange medium: Compressed air, water, ethylene glycol aqueous solution, heat transfer oil

Operating characteristics: High pressure, high flow rate, wide temperature range, 24-hour continuous steady-state operation

Environmental conditions: Outdoor open-air, seaside salt spray, high humidity and corrosive environment around underwater hulls
