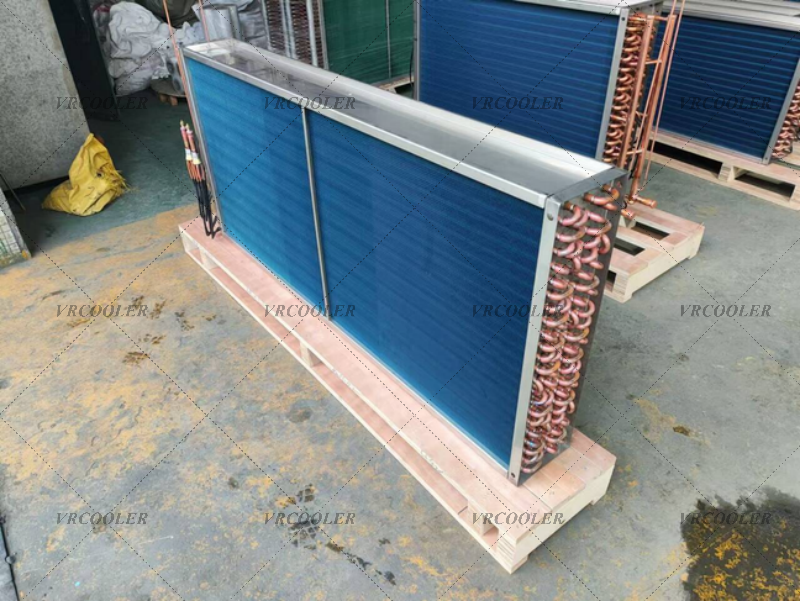

Tube Fin Radiator for Liquid Cooling Loops for Battery Containers

As battery energy storage systems continue to grow in size and power density, thermal management is becoming one of the most important parts of container design. Inside a battery container, temperature stability directly affects battery life, charging performance, safety, and system reliability. That is why tube fin radiators are widely used in liquid cooling loops for battery containers, where they help remove heat from the circulating coolant and reject it to the surrounding air.

In a typical battery container cooling system, heat generated by the battery packs, power conversion equipment, or other electronics is absorbed by a liquid loop, usually water or a water-glycol mixture. That heated coolant then flows through a tube fin radiator, where the heat is transferred from the liquid inside the tubes to the air flowing across the fins. This allows the cooling loop to reduce the fluid temperature before it returns to the battery system, creating a stable and repeatable heat rejection cycle.

The tube fin radiator is a practical solution for this kind of application because it combines high heat transfer efficiency with a relatively compact structure. The tubes carry the coolant, while the fins greatly increase the external surface area exposed to air. This design makes it possible to reject a large amount of heat without requiring an oversized unit. For containerized battery systems, where equipment space is always limited, that compactness is a major advantage.

One of the main reasons tube fin radiators are suitable for battery containers is their flexibility in design. Different projects may require different cooling capacities, airflow arrangements, mounting positions, and environmental protection levels. Some systems are installed in utility-scale outdoor BESS containers exposed to dust, rain, and high summer temperatures. Others are used in smaller industrial or commercial battery enclosures where low noise and compact footprint matter more. A custom radiator can be designed to match the actual coolant flow, inlet and outlet temperatures, fan configuration, and available installation space.

In most battery cooling loops, the radiator works together with EC fans or axial fans to maintain the desired coolant temperature. Fan speed can be controlled according to battery load and ambient conditions, which helps the system operate more efficiently. During periods of lower heat load, fan speed can be reduced to save power and lower noise. When the container is charging or discharging heavily, the radiator and fan assembly can increase heat rejection capacity to keep the batteries within the required operating range.

Material selection also matters. Copper tube with aluminum fins is a common choice for efficient thermal performance, especially in standard environments. In more demanding outdoor conditions, coatings or alternative materials may be considered to improve durability. The radiator frame, casing, and fasteners should also be selected with long-term service conditions in mind, especially for battery containers installed in coastal, humid, or high-pollution areas.

For battery energy storage applications, maintaining a consistent temperature is not only about efficiency. It is also about protecting the value of the battery system. When temperatures become too high or uneven across the container, battery degradation can accelerate and system performance may become unstable. A well-designed tube fin radiator helps the liquid cooling loop remove heat effectively, improve temperature uniformity, and support safer operation over the life of the system.

Another benefit of this type of radiator is ease of integration. It can be installed as part of an outdoor cooling skid, a side-mounted container module, or an internal thermal management assembly depending on the project layout. Connection size, header orientation, fin spacing, face area, and row depth can all be customized. This makes the tube fin radiator suitable for both new battery container designs and retrofit projects where the available space is already fixed.

For manufacturers and integrators of battery containers, the radiator is more than a standard heat exchanger. It is a critical part of the liquid cooling loop that affects overall system reliability, energy efficiency, and operating stability. A properly engineered tube fin radiator can help reduce coolant temperature, improve heat rejection performance, and support long-term battery protection in harsh outdoor conditions.

In modern battery containers, thermal control is no longer optional. It is part of the core system design. A tube fin radiator for liquid cooling loops offers a simple, effective, and scalable way to manage that heat, making it an important component in BESS and other containerized energy storage solutions.
