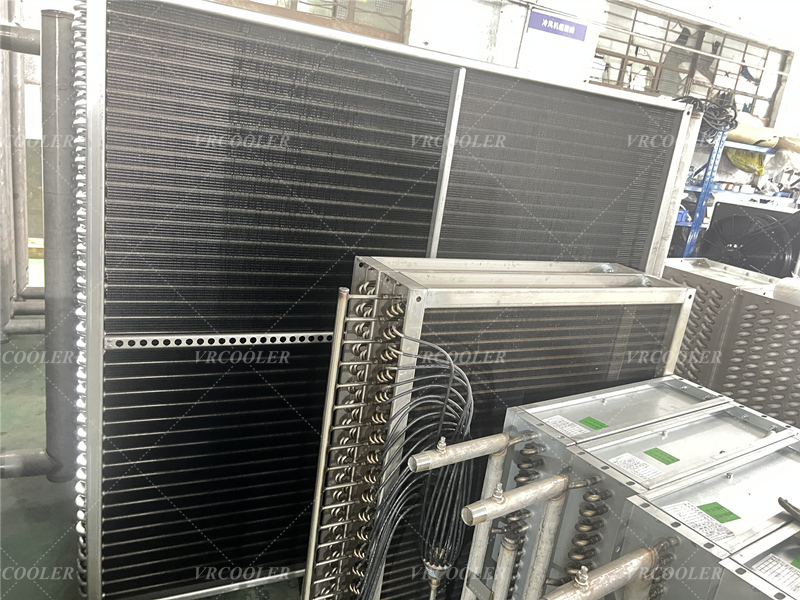

Tube Fin Heat Exchanger for Sludge Drying | CSTHEATEXCHANGER

With stricter environmental emission standards and energy-saving requirements for solid waste treatment, sludge drying enterprises are seeking high-efficiency, low-operation-cost heat recovery equipment to cut gas and power consumption. VRCOOLER releases customized tube fin heat exchangers specially matched with belt-type low-temperature sludge dryers, solving energy waste, exhaust corrosion and frequent fouling pain points in sludge drying production lines.

VRCOOLER tube fin heat exchanger acts as core waste heat recovery equipment for 40–80°C low-temperature sludge drying systems:

1. High-humidity exhaust gas discharged from sludge dryers flows across the fin outer surface;

2. Clean fresh air circulates inside stainless steel tubes, absorbing residual heat from waste exhaust through dense fin structures;

3. Preheated fresh air is sent back to the drying chamber to heat sludge, drastically reducing auxiliary heating energy input;

4. The fin structure expands heat exchange area 3–8 times compared with bare tubes, realizing 75%–85% waste heat recovery efficiency.

Two mainstream application modes:

1. Exhaust gas heat recovery (primary energy-saving scheme for most belt dryers);

2. Steam/hot water heating coil, supplying stable heat source to maintain constant drying temperature.

Sludge drying exhaust carries moisture, acid vapor, dust and corrosive volatile substances. VRCOOLER upgrades core structures targeting severe fouling and corrosion:

1. Full anti-corrosion stainless steel core

Optional SS304 / SS316L / duplex steel tube-fin assembly. Resist acid condensate, sulfide and chloride corrosion generated by hazardous waste sludge, extending service life under long-term high-humidity working conditions.

2. Fouling-resistant fin spacing & easy-clean structure

Adjustable wide fin gaps to slow dust and sludge particle adhesion. The drawer pull-out integral core allows quick high-pressure water flushing without pipeline disassembly, greatly lowering downtime for cleaning.

3. Reinforced sealed cabinet

Fully welded airtight housing with anti-leak flanges, preventing hot exhaust leakage and odor overflow to meet factory environmental protection standards.

4. Compact modular layout

Small footprint design fits narrow drying workshop space; vertical and horizontal installation forms customizable to match all sizes of belt sludge dryers.

5. Precise temperature control

Uniform air heating avoids local overheating of sludge, reduces harmful gas volatilization during low-temperature drying, and stabilizes final sludge moisture content within 10%–40% adjustable range.

Application Scenarios

- Municipal wastewater treatment plant belt sludge low-temperature dryers

- Hazardous waste disposal center industrial sludge drying systems

- Chemical, textile, electroplating factory sludge reduction treatment lines

- Printing, mining, food processing organic waste sludge drying equipment

- New dryer manufacturing supporting & old sludge drying line energy-saving retrofit projects
