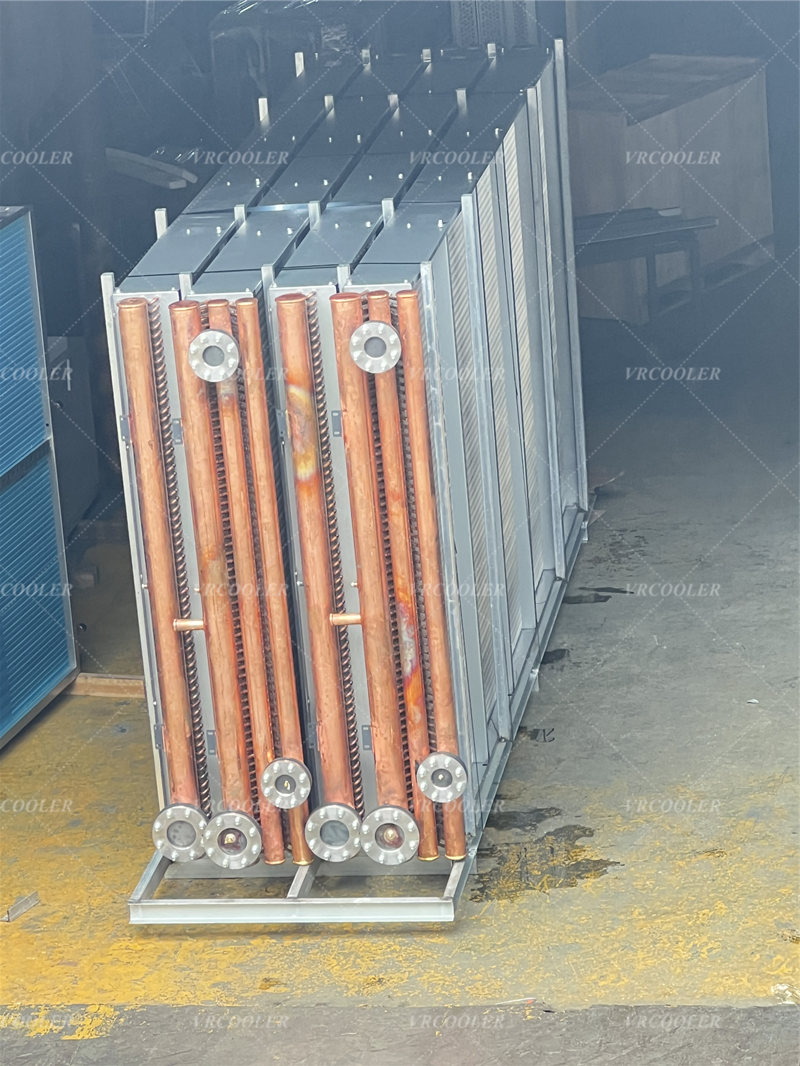

Tube Fin Heat Exchanger For Air Cooled Chiller

Tube Fin Heat Exchanger For Air Cooled Chiller

A tube fin heat exchanger is a crucial component in air-cooled chillers, designed to maximize heat transfer efficiency between the refrigerant and ambient air.

Benefits

High Efficiency: The combination of tubes and fins allows for a larger surface area, improving heat transfer efficiency.

Compact Design: Tube fin heat exchangers are relatively compact, making them suitable for various applications where space is limited.

Cost-Effective: They are generally less expensive to manufacture than other types of heat exchangers due to their simpler design and materials.

Versatility: Can be used in various cooling applications beyond chillers, such as air conditioning systems and industrial cooling processes.

Design Considerations

Fins Configuration

The type, height, and spacing of fins significantly impact performance. More fins increase surface area but may restrict airflow if too densely packed.

Material Selection

Materials must balance thermal conductivity, corrosion resistance, and cost. Aluminum is commonly used for fins, while copper or stainless steel is typically used for tubes.

Airflow Management

Proper placement and orientation of the heat exchanger are crucial to optimize airflow. Fans may be used to enhance air movement over the fins.

Maintenance

Regular cleaning is necessary to remove dust and debris from the fins, which can obstruct airflow and reduce efficiency.

Thermal Load Calculation

Accurate calculations of the expected thermal load are essential for sizing the heat exchanger appropriately to ensure efficiency and performance.
