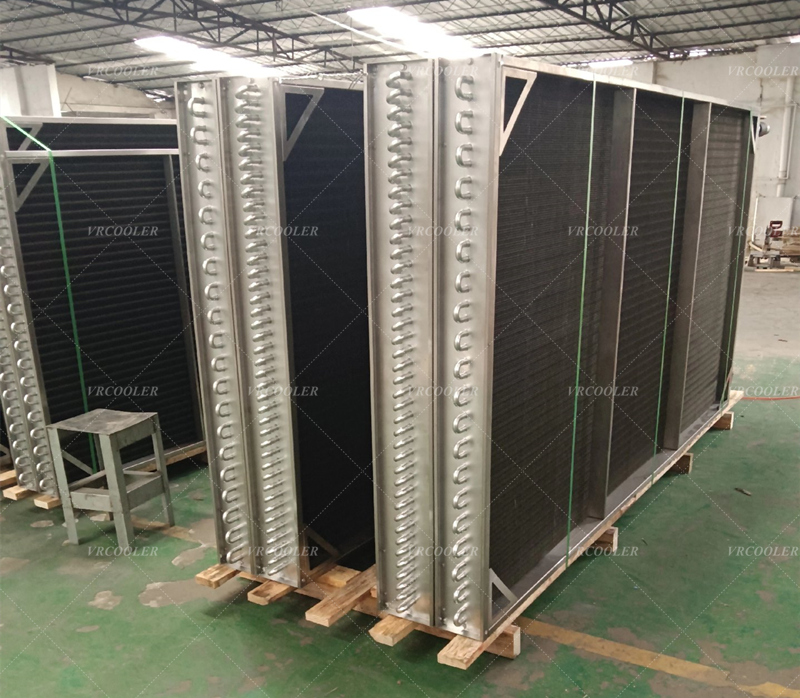

Stainless Steel Evaporator Coil Replace Copper in Ducted Air Conditioning Unit

This is a drop-in replacement evaporator coil designed for ducted AHU / ducted split air conditioning systems. It adopts full stainless steel (SUS304/SUS316) tube-fin structure to replace conventional copper tube + aluminum fin coils.

Main use: ducted AC units operating in corrosive, high humidity, coastal, industrial or food processing environments where copper coils suffer rapid corrosion, pinhole leakage and short service life.

Working Principle

Low-pressure liquid refrigerant flows inside stainless steel tubes, absorbs sensible & latent heat from passing air, vaporizes completely.

Ducted fan forces indoor air across coil fins to achieve cooling & dehumidification.

Fully compatible with original refrigeration circuit, expansion device, fan and ductwork for direct retrofit.

Core Advantages of Stainless Steel Coil (Replacing Copper)

Superior corrosion resistance

Resist salt spray, moisture, chemical vapor, acid & alkali mist. Ideal for coastal areas, factory workshops, kitchen exhaust adjacent areas and food plants. Effectively avoid copper tube pinhole leakage.

Long service life

Service life 3~5 times longer than copper coils in harsh environments, reduce frequent replacement cost and system downtime.

Good mechanical strength

Higher rigidity, anti-vibration, not easy to deform during transportation, installation and coil cleaning.

Food & hygiene compliant

Smooth SS surface, less dirt & bacteria accumulation, easy to clean; suitable for food factory, pharmaceutical ducted AC.

Drop-in installation

Same overall dimension, interface position and connection size as original copper coil, no modification on duct, piping or mounting structure.
