Stainless Steel Dry Cooler: 316L Coil & Epoxy‑Coated Coil Solutions for Seaside Coastal Projects

Coastal and seaside installations expose dry coolers to heavy salt‑spray, high chloride humidity and salty sea‑breeze atmosphere, which easily causes pitting corrosion on ordinary copper‑aluminum coils. For these harsh site conditions, two mainstream anti‑corrosion solutions are widely adopted: 316L stainless steel dry cooler coils</strong> and <strong>epoxy‑protected heat exchanger coils. CST Heat Exchanger supplies both options for global seaside industrial, power‑generation, data‑center and CHP projects.

316L stainless steel dry cooler coil features low‑carbon 316L material with molybdenum additive, delivering strong resistance against chloride‑induced pitting and crevice corrosion typical for coastal and mild offshore environments. Welded joints keep good anti‑corrosion performance without inter‑granular corrosion risk. Tubes, headers and fins can all adopt 316L stainless steel construction. This coil suits sites with long‑term heavy salt‑fog exposure, requiring long service life and good chemical tolerance. Its trade‑off is higher material cost and relatively lower thermal conductivity compared with copper‑tube coils. Whole unit frame, fasteners and fan housings can also be upgraded to 316L stainless steel for full‑unit marine‑grade protection.

Epoxy coated coil (for seaside) is a cost‑effective anti‑corrosion alternative. Base coil can be copper‑aluminum or all‑aluminum, then factory‑applied with uniform epoxy coating covering tubes and fins. The epoxy barrier blocks salt particles and moisture from attacking base metal, passing long‑hour salt‑spray test standards for C5‑M coastal atmosphere. Thermal performance drop is minimal with proper coating thickness. Important note: epoxy coating works as surface barrier; once coating suffers scratch or mechanical damage, local corrosion may start at damaged spots, so transportation, installation and on‑site handling need extra care.

Selection guidance for seaside projects: Choose full 316L stainless steel dry coolers for highly corrosive coastal / near‑offshore sites, long‑lifetime requirements or process fluid with chemical aggressiveness.

Select epoxy‑coated coils for general coastal projects to balance corrosion performance and project budget.

For maximum durability, customers can combine solutions: epoxy‑coated coil plus hot‑dip‑galvanized or 316L unit frames, 316L fasteners and marine‑grade EC fans.

These corrosion‑resistant dry coolers serve multiple applications: coastal power plants, seaside CHP & gas‑engine facilities, shore‑side data centers, transformer cooling, oil‑gas on‑shore sites and desalination supporting cooling loops.

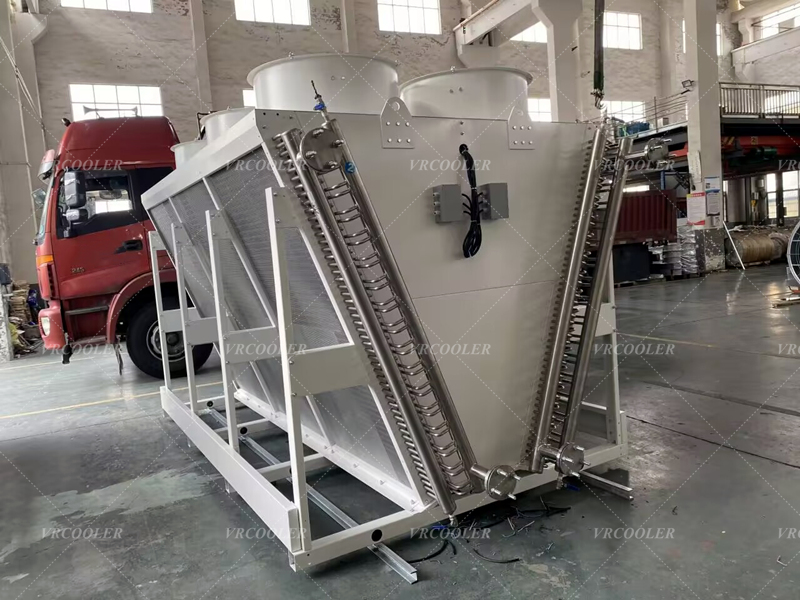

V‑type, horizontal and vertical layouts are available, adiabatic spray modules can be added for high‑ambient seaside regions.

CST supports custom capacity, anti‑corrosion upgrade packages and 1:1 dimension replacement according to existing unit drawings for retrofit projects worldwide.
