CST Heat exchanger is a Chinese manufacturing of heat exchanger coils that are used in cooking, chilling, and freezing applications. Our unique offering of tube and fin patterns coupled with our wide range of tube and fin materials allows us to meet the needs of virtually any food processing application.
Rational Design
·Experienced engineers use Italian advanced design software to design, meeting the demand accurately
·Product suitable to the latest refrigerant such as R410A, CO2, ammonia, glycol and other special refrigerants are available
·Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat

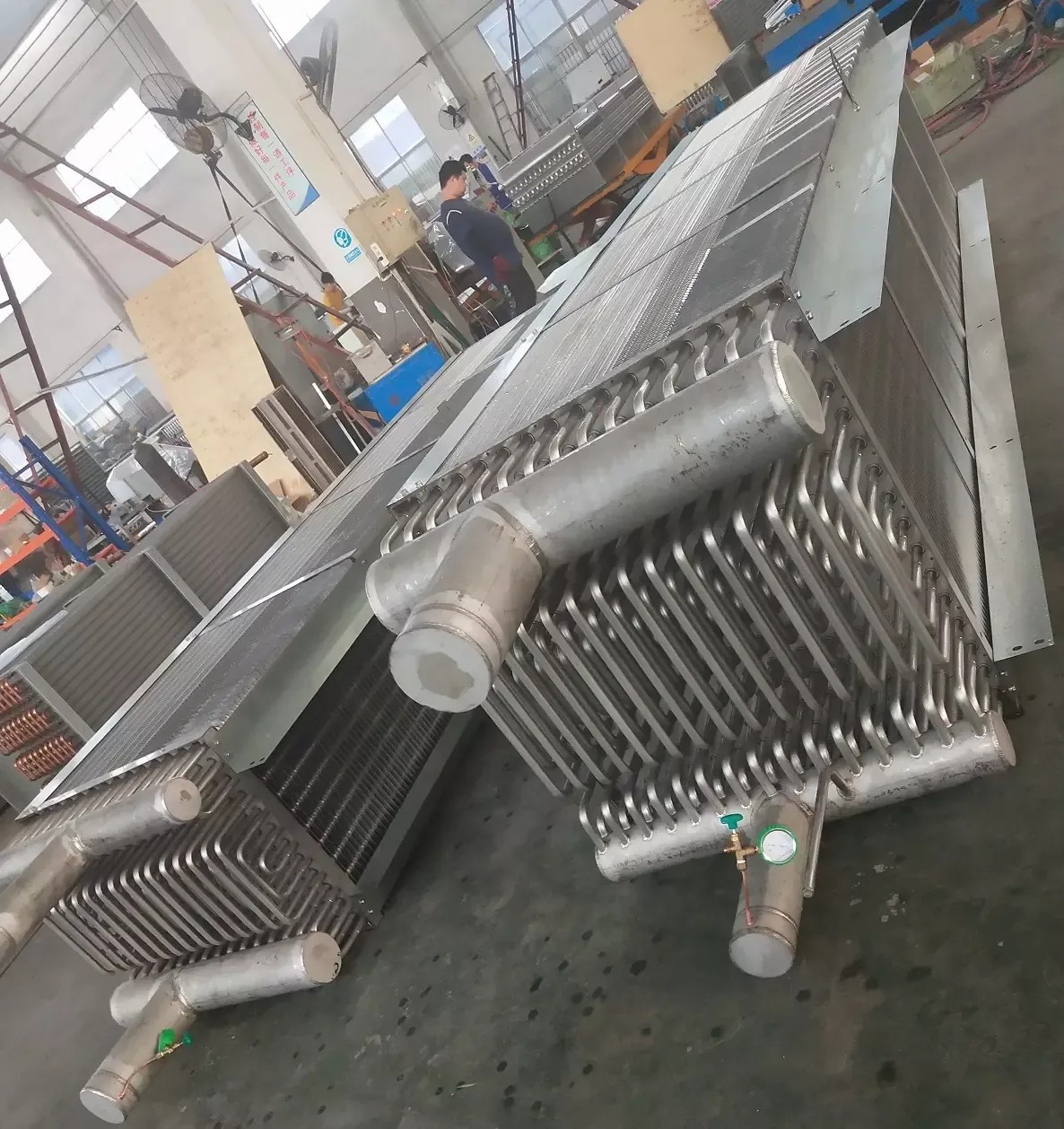

Features of Ammonia evaporator
·Designed with energy efficiency, food safety and reliability in mind, CST Ammonia evaporator are engineered for most extreme applications, such as blast freezers and coolers and processing facilities.
·Each unit is constructed with galvanized steel cabinet, copper tube aluminum fin evaporator coils, premium efficient totally enclosed fan motors and a double wall insulated drain pan.
Reliable raw materials
·The fans of air cooler are famous brand ZIEHL-ABEGG and EMB, reasonably match with the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect.
·Copper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency.
·Shell material of air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.
Options :
• Material: stainless steel, copper, aluminum, Cu-Ni, brass, titanium
• Diameter: 5mm, 7 mm, 7.94mm, 9.52mm, 11.5mm, 12mm, 12.7mm, 15mm, 15.8mm 20mm, 25mm
• Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
• Connection to several circuits available
• Material:Aluminum, Copper Stainless steel, TitaniumHot deep carbon steel, golded
•Coating: E-coating> Al epoxy>hydrophilic
• Thickness:0.1-2mm
• Type:wave fin, flat fin , window fin
How we design for you?
•We promise we use the design software sold by a well-known European HAVC software company.
•Through 8 years of cooperation with them, we have designed, processed and exported coils and unit coolers to various countries all around the world.
•All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Professional software
•We will design and calculate by professonial software to meet with all your requirements on products.
•All datas we send to you will be actually.
Packing
•The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
•If container is too tigher,we will use PE film for packing or pack it according to customers special request.
