Rear-Door Heat Exchanger for High-density Data Center

As AI training and GPU‑based compute workloads keep growing, many data center operators are facing real‑world cooling challenges at rack level. Traditional room‑wide air conditioning often hits limits when rack power goes up, bringing hot‑spot risks and higher running costs. Our rear‑door heat exchanger (RDHx) offers a practical, rack‑level cooling option for both new‑build and retrofitted high‑density data centers.

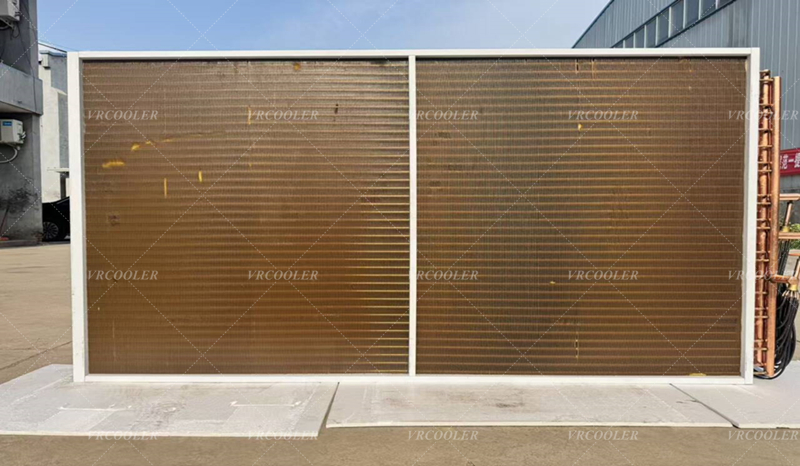

The rear‑door heat exchanger replaces standard rack rear doors with fin‑and‑tube liquid‑to‑air coils. Hot exhaust air from GPU servers and IT hardware passes through the coil, and heat transfers to circulating chilled water or water‑glycol fluid. Air is cooled before flowing back into the data hall, cutting down heat load for central CRAC / CRAH units significantly.

We supply both passive and active rear‑door heat exchanger versions. Passive models use server‑side fans, fit for medium‑density racks. Active units add built‑in EC fans to handle higher airflow, suitable for heavy‑load AI and HPC racks with high heat output.

One practical advantage is flexible installation. It fits most standard 19‑inch server racks. Operators can deploy RDHx only on high‑heat GPU racks, while keeping existing cooling for regular cabinets. No large‑scale facility reconstruction is required, which helps control project budget and shorten site implementation time.

This rack‑close cooling solution helps reduce hot‑air recirculation inside the data hall, stabilizes server inlet temperature, and supports higher per‑rack power density. It also works well with free‑cooling dry‑cooler systems, allowing higher chilled‑water supply temperatures and lowering overall PUE and long‑term energy expenses.

At cstheatexchanger.com, we build rear‑door heat exchangers with customizable coil size, frame dimension, connection layout and material options. Each unit goes through pressure and leak tests before shipment to fit data center continuous‑run requirements.

If you are evaluating rack‑level liquid‑air cooling for high‑density GPU data centers, feel free to contact us for dimension check, capacity matching and project quotation.
