O-coil Vs A-coil Efficiency

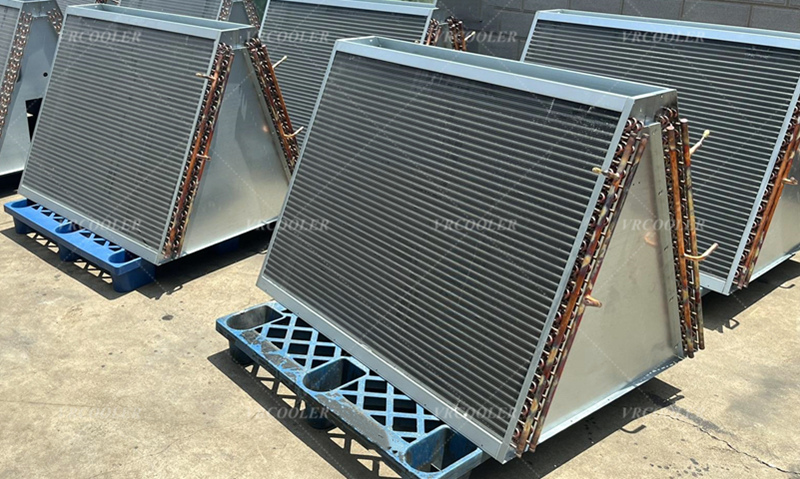

A-coil: Most commonly used in residential HVAC systems; features two finned panels arranged in an “A” shape, with air flowing through them in a crisscross pattern.

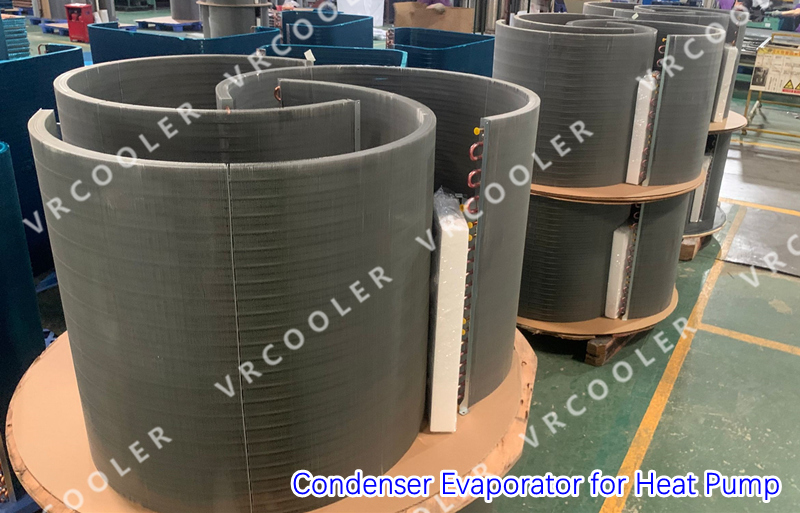

O-coil: Commonly used in industrial applications and heat pumps; features a circular shape or is formed by two C-shaped sections joined to create a 360° ring, with air flowing around it.

1. Heat Transfer Efficiency

A-coil:

Air enters from both sides, ensuring even distribution;

High fin density and large surface area;

Low airflow velocity in the center, prone to condensation/icing, resulting in a 5–10% long-term efficiency drop.

O-coil:

360° all-around heat exchange with no dead zones, increasing utilization by 10–15%;

Longer flow path and stronger turbulence, resulting in a 15–20% higher heat transfer coefficient;

Less prone to frosting, with uniform defrosting, and long-term efficiency loss <5%.

2. Airflow Resistance and Fan Power Consumption

A-coil: Moderate resistance (approx. 0.3–0.5 in.wg), fan power consumption at 100% of standard.

O-coil: Smoother circular flow path, 10–20% lower resistance, fan power consumption reduced to 80–90%.

3. Dehumidification Capacity

A-coil: Short contact time; condensate is easily carried away, resulting in average dehumidification (RH 50–55%).

O-coil: Longer path and larger temperature gradient, resulting in stronger dehumidification (RH 45–50%); significant advantages in humid regions.

4. Dimensions and Space

A-coil: Slim and tall design, suitable for vertical air handling units; small footprint.

O-coil: Flat, ring-shaped design; suitable for horizontal or ceiling-mounted units; 20–30% smaller volume for the same area.

5. Maintenance and Lifespan

A-coil: Prone to dust accumulation; soft fins; difficult to clean; lifespan of 8–12 years.

O-coil: Sturdy construction; good self-cleaning properties; lifespan of 15–20 years; low maintenance costs.
