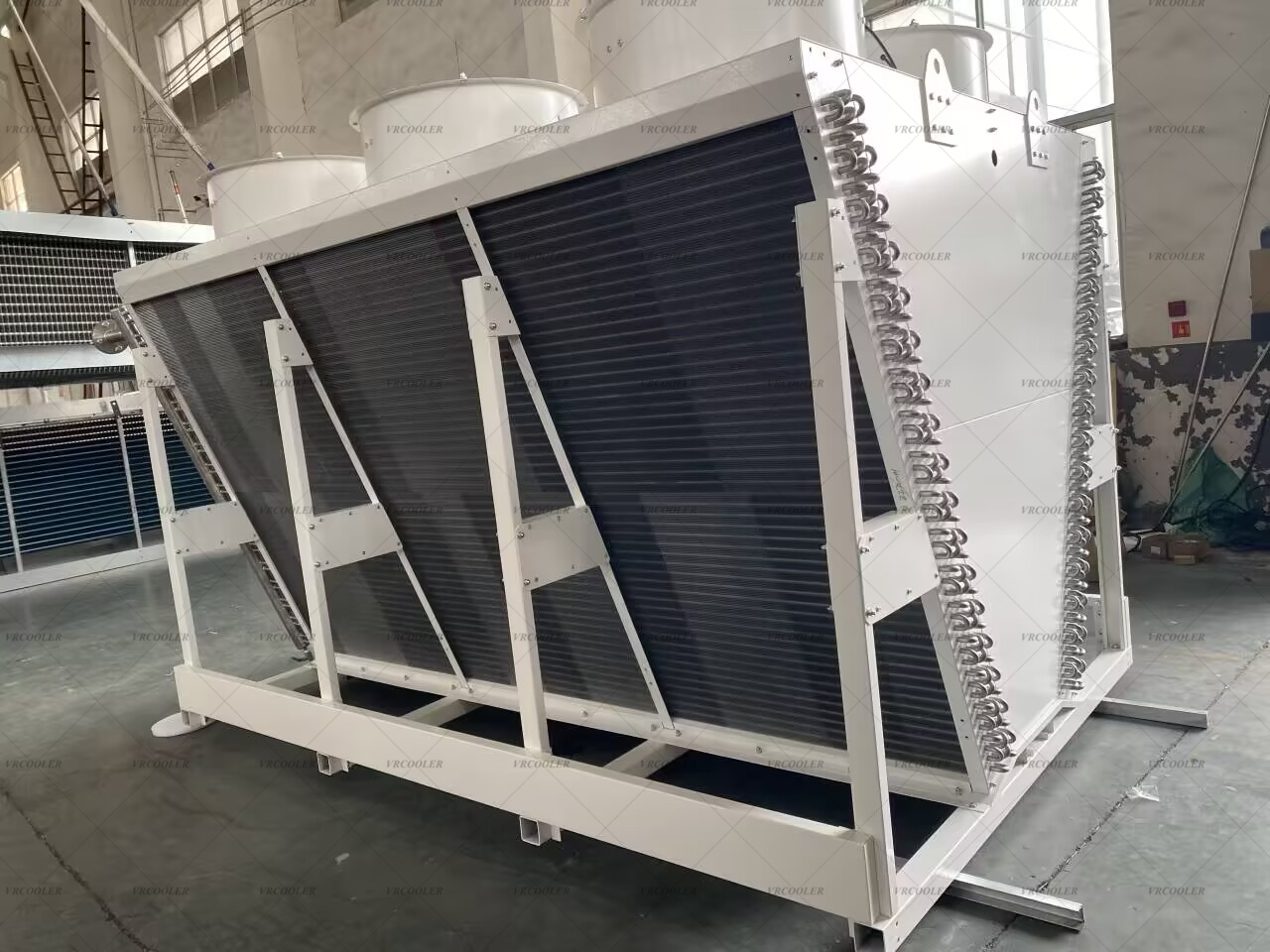

Marine Diesel Generator Set - Dry Cooler Cooling Circuit (cylinder Liner Water / Lubricating Oil / Fuel Oil)

1. Cylinder Liner Water (Main Cooling Circuit, Core)

Cooling Components: High-temperature components such as diesel engine cylinders, cylinder heads, and turbochargers; the largest heat source for the generator set.

Medium: Fresh water + ethylene glycol closed-loop antifreeze; prevents freezing at low temperatures and corrosion.

Working Logic: Generator operation absorbs heat → high-temperature cylinder liner water enters the dry cooler tube bundle → air convection dissipates heat, cooling the cylinders → low-temperature water returns to the engine block for circulation.

Function: Controls the overall engine operating temperature, prevents cylinder scoring and thermal deformation, and ensures the generator set's rated power output.

2. Lubricating Oil (Lubricating Oil Cooling Circuit)

Cooling Components: Crankshaft, bearings, gears, and other moving parts; also provides lubrication, cooling, and impurity removal.

Form: Mostly an independent small heat exchange circuit, or integrated into the main dry cooler tube bundle.

Characteristics: Strict oil temperature control (typically 40~60℃); excessively high oil temperature will lead to decreased lubricating oil viscosity, lubrication failure, and accelerated oil deterioration.

3. Fuel (Fuel Cooling Circuit)

Cooling Components: High-pressure fuel pump, injectors, and fuel supply lines; commonly found in high-power ocean-going diesel engine sets.

Functions: Reduces fuel temperature, stabilizes fuel viscosity, improves atomization, prevents vapor lock and injection abnormalities, ensures complete combustion, and reduces fuel consumption and carbon buildup.

Applicable Scenarios: High-temperature engine rooms in ocean-going environments, tropical routes; this circuit's role is particularly prominent in high ambient temperatures.

Overall System Flow (Mainstream Integrated Dry Cooler Solution):

Diesel generator set operation: cylinder liner water, lubricating oil, and fuel absorb heat from the equipment;

High-temperature media are pumped through pipelines and circulating pumps into the integrated dry cooler (multiple independent tube bundles, no cross-contamination);

Marine axial flow fans provide forced convection, and finned tubes dissipate the heat from the media to the outside atmosphere;

The cooled media return to their respective equipment, forming a closed-loop circulation;

Matching temperature control valves/variable frequency fans: Automatically adjust airflow according to media temperature, ensuring constant temperature control and energy-saving operation.

Marine-Specific Design (Suitable for Marine Environments)

Tube Bundle Zoning: Employs multi-flow independent tube bundles, with separate chambers for cylinder liner water, lubricating oil, and fuel oil, ensuring complete media isolation and eliminating the risk of mixed fluids.

Corrosion-Resistant Materials (Essential for Salt Spray Environments):

Heat Exchange Tubes: 316L stainless steel/copper tubes, resistant to marine salt spray corrosion;

Fingers: Aluminum fins + full epoxy coating, preventing salt spray scaling and electrochemical corrosion;

Shell/Support: Hot-dip galvanized + marine weather-resistant paint.

Protection and Vibration Resistance: Fan and motor protection rating IP54/IP56, waterproof and salt spray resistant; the entire unit is equipped with a vibration-resistant base, suitable for the turbulence and vibration conditions encountered during marine navigation.

Control Logic:

Temperature Interlock Protection: Automatic alarm for over-temperature media, automatic fan full-load operation, and unit load reduction/shutdown in extreme conditions.
