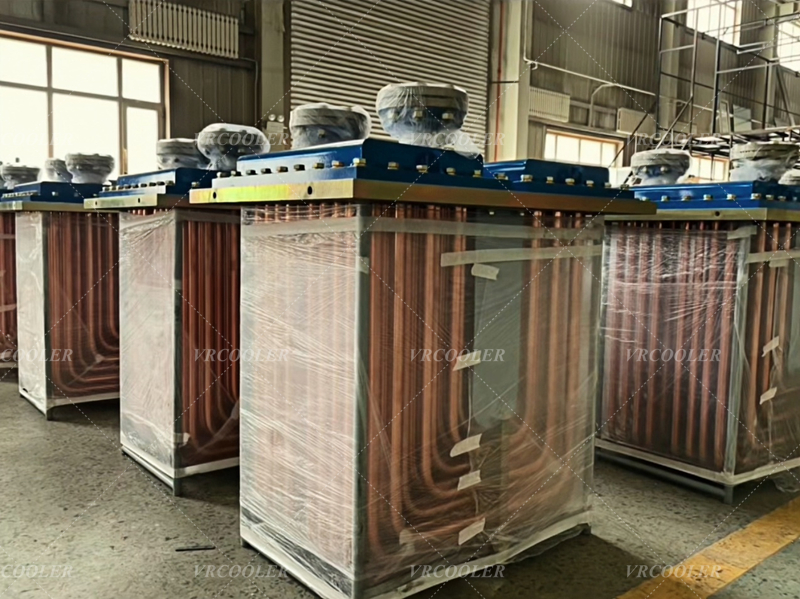

Marine Box Coolers | Space‑Saving, Low‑Maintenance Cooling for Vessels

Shipyards and vessel operators worldwide constantly face two major pain points in engine room cooling systems: limited onboard space and high recurring maintenance costs. Traditional shell-and-tube seawater coolers require large seawater pumps, extra piping and frequent servicing, driving up power consumption and drydock expenses. To address these challenges, VRCOOLER’s full lineup of marine box coolers delivers compact, pump-free, low-upkeep sea chest cooling built to withstand harsh marine environments.

What Is a Marine Box Cooler & How It Works

Our box cooler is a dedicated U-tube heat exchanger fully installed inside the vessel’s sea chest, removing the need for standalone seawater pumping units.

1. Hot freshwater, lube oil or hydraulic fluid circulates within alloy U-tubes;

2. Seawater washes over the exterior of the tube bundle: forced flow when sailing, natural thermal siphon convection during anchorage;

3. Heat transfers across tube walls into surrounding seawater to stabilize operating temperatures for main engines, generators and auxiliary machinery.

This passive cooling architecture cuts auxiliary power draw and eliminates vulnerable moving pump parts, drastically reducing long-term breakdown risks. Clients can select two core tube materials to match their sailing waters: aluminum brass for clean coastal routes, and 90/10 copper-nickel for silty estuaries, dredging zones and heavily polluted harbors.

VRCOOLER box coolers serve cooling demands across nearly all commercial marine craft:

- Main engine fresh water & lubricating oil cooling

- Auxiliary generators, bow thrusters and hydraulic circuit cooling

- Vessel types: bulk carriers, container ships, general cargo vessels, tugboats, dredgers, fishing boats, offshore workboats

- Suitable for new ship construction and energy-saving retrofitting of in-service fleets
