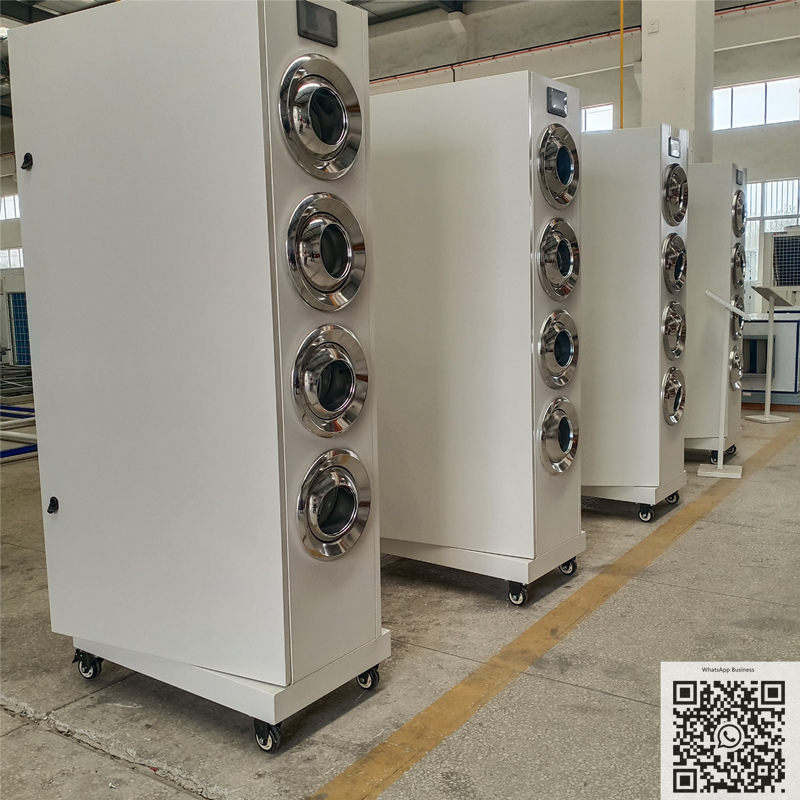

Low Noise AHU for Hotel

Low-noise Air Handling Units (AHUs) for hotels are designed to operate quietly (typically ≤35–40 dB(A)) while providing comfort, fresh air, and indoor air quality for guest rooms, lobbies, and public areas.

Core Requirements for Hotel AHUs

Noise: Guest rooms ≤32–35 dB(A); corridors/lobbies ≤40–45 dB(A)

Airflow: Guest rooms 30–50 m³/h per person; public areas per design code

Pressure: Medium-high static (150–300 Pa) for long duct runs

Filtration: G4+F8 (PM2.5) or higher for clean air

Heat recovery: Plate/enthalpy wheel to save energy

Key Low-noise Design Features

Fan & Motor:

EC/outer-rotor direct-drive (no belts, lower noise 3–5 dB)

Dynamic/static balancing + spring rubber isolators

Low-speed, high-efficiency centrifugal fans

Unit Construction:

Double-skin PU insulation (25–50 mm) for sound absorption

Air-tight, rigid cabinet to reduce vibration noise

Internal acoustic lining (polyester/foam)

Duct & System:

Low air velocity (main ≤6–8 m/s, branch ≤3.5 m/s)

Silencers at supply/return; flexible duct connectors

Vibration-isolated hangers and base rails
