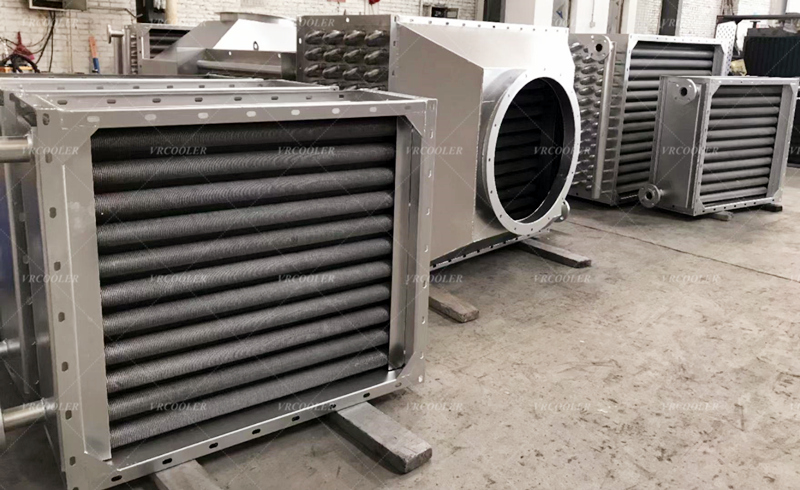

Key Points about Compact Finned Tube Heat Exchangers

A "compact finned tube heat exchanger" is a type of heat exchanger that utilizes numerous closely spaced fins attached to the surface of tubes, significantly increasing the heat transfer surface area within a small volume, making it very efficient for compact applications where maximizing heat exchange in a limited space is crucial.

Key points about compact finned tube heat exchangers:

High surface area to volume ratio:

The added fins greatly increase the heat transfer surface area compared to a plain tube, allowing for more efficient heat exchange in a smaller footprint.

Applications:

Commonly used in situations where space is limited, such as in automotive cooling systems, air conditioning units, industrial process cooling, and waste heat recovery systems.

Design considerations:

Fin geometry: The shape, size, and spacing of the fins significantly impact heat transfer efficiency.

Material selection: The tube and fin material are chosen based on the fluids involved and desired thermal performance (e.g., copper for high conductivity, stainless steel for corrosion resistance).

Flow arrangement: The flow of fluids through the tubes and across the fins is carefully designed to optimize heat transfer.
