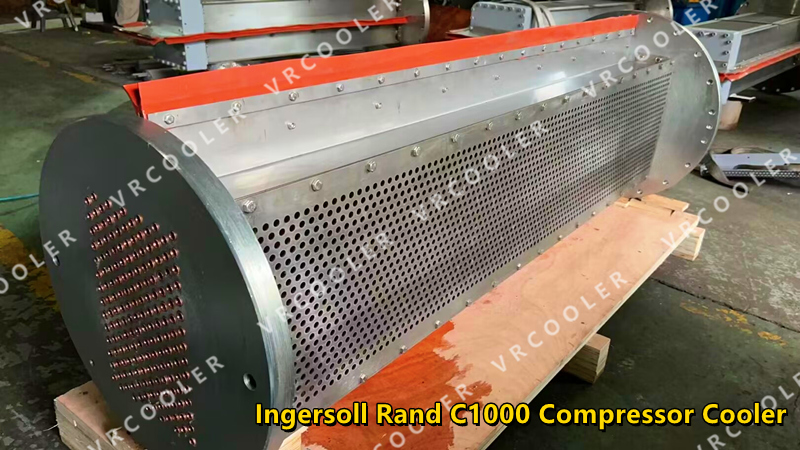

Ingersoll Rand C1000 Centac Cooler Stage 1,2,3
This compressor cooler is 100% same with original one.
| 0C1 Stages 1-3, 7X12626 / 8X1148 / 22420186 / 8X486 / 67889261 / 22420186 / C1737 |
| 1C1 Stages 1-4, 7X2622 / 8X1122 / 8X520 / 67885681 / 42917476 / 42917476 / 22420202 / C1764 |
| 2C1 Stages 1-4, 7X12624 / 8X1174 / 22245633 / 67889303 / 8X10986 / 8X538 / C1736 |
| 3C1 Stages 1-4, 7X12726 / 8X5070 / 22205520 / 8X1339 / 67895441 / 2322632 / C1686 |
| 4C1 C110 / C125 Stages 1-4, 7X12728 / 67895524 / 8X1341 / 8X542 /23996267 / 22377006 / C1759 |
| 4C1 C150 Stages 1-4, 7X12730/1.500.295-12 / 8X1403 / 8X298 / 67896894 / 8X1520 / C1778 |
| CENTAC II Frame |
| CV0 / 0CV Stage-1 7X12151 / 67814145 /22460620 / 141127 /C1746 |
| CV0 / 0CV Stage-2 7X12251 / 67814806 / 22463475 / 141101/ C1747 |
| CV1 / 1CV / CV1B / 1BCV Stage-1 7X14691 / 7X12982 / 8X11439 / 22444301 / 22480016 / 68132844 / Z17103 |
| CV1 / 1CV / CV1B / 1BCV Stage-2 7X14694 / 7X12929 / 8X11440 / 22429690 / 22459937 / 22480255 / 68132703 / 23976434 / 20029895Z17102 |
| CV1A / 1ACV Stage-1 7X13019 / 7X11956 22429690 / 67949537 / 000978940 / C1664 |
| CV1A / 1ACV Stage-2 7X13005 / 7X11957 / 7X2939 / 22420002 / 67949529 / 000978957 / 4.506.290 / 43118702 / C1665 |
| 1CII Stage-1 7X12775 / 7X2445 / 67897389 / C1632 |
| 1CII Stage-2 7X12792 / 7X2389 / 67906453 / C1633 |
| 2CII Stage-1 7X12818 / 7X2444 / C1756 / C1756 |
| 2CII Stage-2 7X12775 / 7X2445 / 67897389 / C1632 |
| CV2 / 2CV / C700 Stage-1 7X11845 / 7X14889 / 68149954 / 232218126 / 67767632 / C1748 |
| CV2 / 2CV / C700 Stage-2 7X11846 / 7X14902 / 68149921 / 23969462 / 23218164 / 2221880 / 67767624 / C1749 |
| CV2 / 2CV / C700 Stage-3 7X11847 / 7X14905 / 68149897 / 8X10632 / 23937261 / 23218142 / 68149897 / C1750 |
| 2ACII / C950 Stage-1 7X12113 / 7X14883 (SS Heads, Tube & Shroud) / 68150010 / 8X10632 / 23866387 / 68165513 / 7X14948 / 67791947 / C1752 |
| 2ACII / C950 Stage-1 (SPECIAL OVER 1250HP) 68150010 |
| 2ACII / C950 Stage-2 7X12114 / 7X14886 (SS Heads, Tube & Shroud) / 68149988 / 7X13220 / 68165505 / 67791954 / C1753 |
| 2ACII / C950 Stage-3 7X15035 / 68183144 |
| 3ACII / 3CII Stage-1 (Old Style-Long & Narrow O.D. Center Tube Size Dia. 8.858'') 7X14236 / 8X4705 |
| 3ACII / 3CII Stage-1 (STD New Style-Short & Larger O.D. Center Tube Size Dia. 11.750'') 7X12811 / 8X10764 / 8X2979 / 22212144 / 7X15260 / 8X101521 / 67906511 / 22212144 / 94528478 / C1705 |
| 3ACII / 3CII Stage-2 7X12834 / 8X2395 / 22218093 / 7X15261 / 67909572 / 8X3545 / 22218093 / C1706 |
| 3ACII / 3CII Stage-3 7X12836 / 8X2396 / 7X15262 / 22222269 / 8X3546 / 67909465 / 8X10153 / C1707 |
| 5CII Stage-1 7X12858 / 7X4298 / 7X15408 / 94975406 / 68214576 / Z1780 |
| 5CII Stage-2 7X12860 / 7X4141 / 7X15413 / 94975463 / 68214519 / Z1781 |
| 5CII Stage-3 7X12862 / 7X15418 / 8X4607 / 94973914 / Z1782 |
