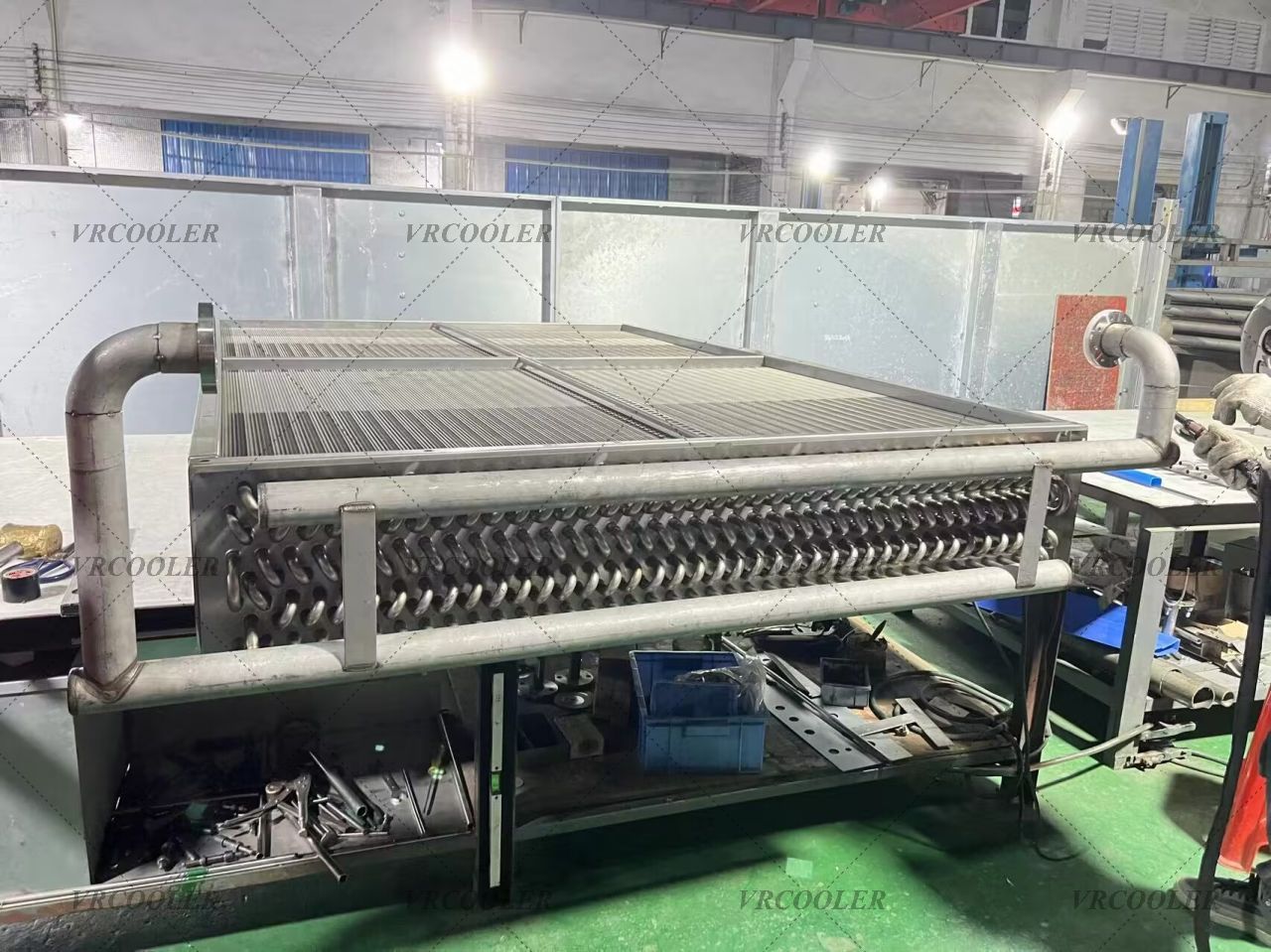

Industrial Steam Coil for High Volume Air Heating Systems

When a large volume of air needs to be heated quickly and evenly, a steam coil is often one of the most practical choices. In this case, the requirement is to heat 260,000 m³/h of air from 25°C up to 40°C. That means the system needs to provide a 15°C temperature rise across a very high airflow, so the coil must be designed for both strong heating capacity and stable operation.

Steam works well for this kind of duty because it can transfer a large amount of heat in a compact coil section. Whether the available steam is saturated steam or superheated steam, the coil can be designed to match the actual plant conditions. In most industrial projects, saturated steam is simpler to control and is commonly used for air heating, but superheated steam can also be applied when the coil is selected correctly.

For an airflow of 260,000 cubic meters per hour, the required heating capacity is roughly 1.3 to 1.4 MW, depending on the actual air density, site conditions, and coil configuration. This is not a small standard heater. It is usually a custom-built steam heating coil installed in a duct, air handling unit, or process air system.

Several design points are important in this type of project. The first is the coil face area, which must be large enough to keep air velocity at a reasonable level. If the air moves too fast through the coil, pressure drop increases and heating can become uneven. The second is the steam condition, because steam pressure and temperature directly affect the heat output. The third is condensate drainage. A steam coil must be arranged so condensate can leave the tubes easily, otherwise performance problems or water hammer may occur.

Material selection also matters. Depending on the operating environment, the coil may use steel tubes, stainless steel tubes, or other combinations with aluminum fins or galvanized steel casing. The final choice depends on corrosion conditions, steam pressure, and service life expectations.

This kind of steam coil is commonly used in make-up air units, drying systems, industrial ventilation lines, paper mills, textile plants, spray booths, and process heating systems. In these applications, the goal is not only to reach the target air temperature, but also to keep the system reliable during long operating hours.

For a project requiring air heating from 25°C to 40°C at 260,000 m³/h, the best solution is usually a coil designed according to the actual installation size, steam source, allowable pressure drop, and operating conditions. A properly designed steam coil can deliver stable air temperature, efficient heat transfer, and dependable long-term performance.
