How To Prevent Bearing Oil Cooler Leakage

Bearing oil cooler leakage falls into three core categories: tube-side seawater leakage into lube oil, oil-side lubricant external seepage, and flange/weld joint seepage. For marine copper-nickel bearing coolers serving stern tube, thrust and guide bearings, leakage will cause oil emulsification, bearing babbitt tile burning, unplanned vessel shutdown, power unit outage and huge economic losses. Leakage prevention must cover full lifecycle control: design & material matching, factory manufacturing inspection, standardized installation, daily operation management and regular maintenance.

Most seawater-side tube leakage originates from electrochemical corrosion caused by mismatched metal potentials. This step is the primary defense for marine Cu-Ni coolers.

### 1.1 Unified compatible alloy system for heat transfer tubes and tube sheets

- Standard marine configuration: CuNi 90/10 U-tube matched with naval brass tube sheet; heavy-duty offshore units adopt CuNi 70/30 tube + solid CuNi tube sheet. The electrode potential difference between paired metals is controlled within a tiny range to avoid galvanic cell formation.

- Forbidden collocation: 316L stainless steel tube sheet paired with copper-nickel tubes, carbon steel direct contact with Cu-Ni bundles; potential gap triggers rapid pitting corrosion, tube wall thinning and micro-perforation within 1–3 years.

- Isolation measure: Add insulating PTFE gaskets between cooler support frames and vessel carbon steel hull to block stray current circulation paths, preventing hull-induced corrosion of submerged circular internal coolers.

### 1.2 Select anti-corrosion tubes matching navigation water quality

- Ocean-going general vessels: CuNi 90/10 tubes with standard wall thickness (1.25mm / 1.5mm), natural anti-biofouling, slow corrosion rate.

- Estuary, sediment-laden, sulfur-polluted sea areas, high-speed vessels: Upgrade to CuNi 70/30 thicker-wall tubes (1.5–2.0mm), stronger resistance to erosion and cavitation corrosion.

- Chemical tankers with polluted seawater: Grade 2 titanium tubes to completely avoid pitting perforation.

- Ban thin-wall low-grade aluminum brass tubes for main bearing coolers; dezincification corrosion easily creates pinhole leakage.

### 1.3 Anti-rust coating and sacrificial anode for carbon steel shells & water bonnets

All carbon steel water headers and cooler shells apply 2–3 layers of marine heavy anti-corrosion epoxy coating with total thickness ≥250μm; perform coating adhesion test before delivery to avoid peeling caused by seawater soaking. Install replaceable zinc sacrificial anodes inside every seawater bonnet and sea chest box cooler, the anode preferentially corrodes to protect tube sheets and tube roots from local corrosion leakage.

Long-term vibration from turbine rotation, marine propeller shock and hull bumping is the second major cause of tube bundle cracking leakage. Targeted structural optimization eliminates hidden structural risks in advance.

### 2.1 Multi-point anti-vibration limit for U-tube bundles

- Install layered stainless steel baffles and segmented limit supports along the full length of tube bundles, fix every row of tubes to eliminate flow-induced resonance and tube-to-tube friction abrasion.

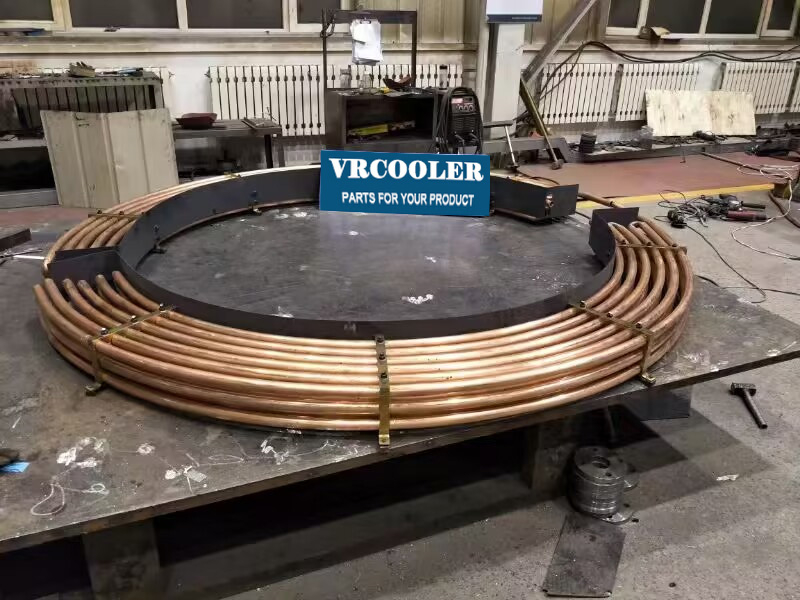

- Add damping rubber sleeves at contact points between tubes and baffles to reduce vibration fatigue stress on tube walls, especially critical for large circular submerged thrust bearing coolers inside oil tanks.

- Reinforce U-bend transition sections (stress concentration zone): control uniform bending radius without tube wall thinning, wrinkling or micro-cracks during tube processing.

### 2.2 Anti-erosion flow guide design for seawater inlet

Add stainless steel flow guide plates at the seawater inlet bonnet to prevent high-speed sediment-laden seawater from directly impacting tube sheet and tube root expansion joints. Strictly limit seawater flow velocity inside Cu-Ni tubes to 1.0–2.5m/s: excessive velocity scours tube wall to form erosion pits; low velocity causes marine organism fouling and local concentration corrosion. Equip a coarse filter at seawater intake to intercept seaweed, gravel and plastic debris that scratch tube inner walls.

### 2.3 Reasonable thermal expansion compensation design

Adopt floating tube bundle structure for horizontal shell-and-tube coolers; the tube bundle can freely stretch with temperature change, avoiding thermal stress pulling tube expansion/welding joints to produce micro-seams. For large segmented submerged circular coolers, reserve assembly expansion gaps to prevent extrusion deformation and joint cracking when oil temperature rises.

Hidden defects in tube expansion, welding and raw materials will lead to early leakage after commissioning; complete multi-stage inspection before shipment is mandatory.

### 3.1 Raw material incoming inspection

Conduct spectral analysis for all Cu-Ni tubes and tube sheets to verify alloy composition meets marine standards; reject tubes with surface scratches, pits, wall thickness deviation and internal micro-cracks. Each batch of tubes carries original material test certificate for classification society survey.

### 3.2 Precision tube expansion and welding process control

- Tube-to-tube sheet connection adopts dual sealing process: hydraulic expansion + full penetration argon arc welding, eliminate tiny gaps between tube outer wall and tube sheet hole where seawater accumulates to induce crevice corrosion.

- Welding workers hold marine pressure vessel welding certificates; all welds are visually inspected, key positions accept penetrant testing (PT) to detect invisible micro-cracks.

- Remove sharp welding spatter and burrs inside water bonnets to avoid local turbulence erosion of tube roots.

### 3.3 Two-stage tightness test (non-negotiable standard)

1. Hydrostatic pressure test: Test pressure on seawater side = 1.5 times design working pressure, hold pressure for minimum 30 minutes. No pressure drop, no seepage, sweating or water trace on all tubes, welds and tube sheets is required to pass. Oil side also undergoes pressure test to check shell and flange oil leakage risk.

2. Air tightness micro-leak test (for ocean-going main bearing coolers): Fill tube side with compressed air under 0.8MPa, immerse bundle in clean water; no tiny air bubbles escaping from tube walls or joints indicates zero micro-leakage, which eliminates invisible pinhole defects missed by hydraulic testing.

### 3.4 Finished product pre-assembly inspection

Test matching of all flange surfaces, check flatness to avoid uneven gasket compression leading to external oil/water seepage after installation. All threaded pipe connectors apply anti-seize marine thread sealant during factory pre-assembly.

Improper hoisting, positioning, gasket replacement and bolt tightening during on-site replacement (aftermarket swap of turbine/marine bearing coolers) accounts for over 30% of post-installation leakage failures.

### 4.1 Damage-free hoisting and positioning

Use soft synthetic fiber slings instead of steel wire ropes to lift coolers; steel ropes scratch Cu-Ni tube surfaces and carbon steel coating, creating corrosion starting points. Avoid violent collision between tube bundle and bearing tank wall, turbine base or hull structure during hoisting, which causes tube bending and hidden cracks. After placement, ensure full horizontal/vertical level to prevent unilateral extrusion of tube bundle supports.

### 4.2 Standard gasket selection and installation

- Match medium-specific sealing materials: Marine EPDM for general vessel flanges; Viton FKM fluororubber for high-temperature steam/gas turbine bearing oil coolers resistant to high-temp lube oil aging. Discard aged, deformed, cracked gaskets; never reuse old gaskets during overhaul replacement.

- Clean flange sealing surfaces completely before assembly: remove residual old gasket fragments, rust, oil sludge and welding spatter; uneven surfaces lead to partial gasket compression and seepage. Install gaskets concentrically without offset or extrusion.

### 4.3 Symmetrical graded bolt tightening

Tighten flange bolts crosswise in 3–4 graded steps (low torque → medium torque → rated torque), instead of one-time full tightening. Uniform pressure distribution eliminates local gasket gaps causing oil or seawater seepage. Record torque values for future overhaul reference. All exposed carbon steel bolts are hot-dip galvanized or 316L stainless steel to avoid bolt rust expansion loosening over time.

### 4.4 Complete insulation isolation construction

Lay insulating gaskets between cooler mounting brackets and steel hull/base to cut stray current galvanic corrosion. After installation, repair any scratched anti-corrosion coating on shell and headers with supplementary epoxy paint to block salt fog corrosion.

Unreasonable daily navigation/unit operation accelerates tube wall corrosion and fouling, gradually developing into leakage points. Standardized operation stabilizes long-term cooler integrity.

### 5.1 Control seawater system operating parameters strictly

- Maintain seawater flow velocity within design range 1.0–2.5m/s; forbid long-term over-speed operation causing tube erosion pits, and low-speed operation leading to barnacle accumulation and crevice corrosion.

- Regularly backwash seawater pipelines and cooler tube side; avoid long-term shutdown of seawater circulation when vessel anchors or turbine stands idle. Stagnant seawater breeds massive marine organisms and local corrosion. If shutdown exceeds 72 hours, drain all seawater inside tube bundles completely.

### 5.2 Stabilize lubricating oil quality and temperature

Install high-precision filters on oil circulation loops to intercept metal abrasive particles from bearings; hard particles scratch tube outer wall surfaces and create corrosion initiation points. Control bearing oil operating temperature within design range (40–58°C); long-term over-temperature accelerates oil oxidation to generate acidic sludge, which corrodes tube outer walls and shell inner surfaces, causing oil-side pitting leakage. Regularly test oil acid value and moisture content, replace deteriorated lube oil timely.

### 5.3 Timely open seawater inlet filter

Clean seawater strainer every daily watch to remove seaweed, sediment and floating debris; blockage reduces flow rate, raises seawater temperature and worsens biofouling corrosion risk.

Track real-time data of bearing oil temperature, oil moisture content and oil water separation tank drainage:

1. If bearing oil temperature rises continuously without load increase → severe tube fouling, risk of local corrosion perforation; arrange cleaning immediately.

2. If oil tank accumulates abnormal water, water separation tank drainage volume surges → existing micro seawater leakage inside tube bundles, shut down unit/vessel for inspection without delay.

3. Observe flange, bonnet and shell joints for oil sweat, water seepage marks every shift, tighten loose bolts slightly in time.

### 6.2 Scheduled disassembly cleaning & internal inspection

- Normal sea route: Disassemble water bonnet to clean tube side fouling every 10–12 months; estuary high-fouling waters clean every 6–8 months. Adopt high-pressure fresh water flushing + soft plastic tube brushes, forbid metal wire brushes scratching Cu-Ni tube inner walls.

- Dry dock overhaul (marine vessels) / unit major maintenance (turbines): Carry out air tightness test again for tube bundles, use endoscope to inspect tube inner wall pitting, erosion and crack conditions; replace tubes with wall thickness loss over 30% of original standard to prevent perforation during next operation.

- Remove oil-side sludge and sediment inside submerged circular coolers when emptying bearing oil tanks, eliminate acidic sludge corrosion on tube outer walls.

### 6.3 Regular anti-corrosion component replacement

Check zinc sacrificial anodes inside water bonnets quarterly; replace anodes when corrosion consumption exceeds 50% volume loss. Re-spray damaged shell anti-corrosion coating during each overhaul to prevent external rust penetration leakage of carbon steel shells.

### 6.4 Timely replacement of aging vulnerable parts

Replace all gaskets during every cooler disassembly overhaul; aging rubber loses elasticity and becomes brittle, prone to seepage under temperature and pressure fluctuation. Replace severely loosened, corroded support baffles to restore tube bundle anti-vibration protection.
