How Does A Wire-on-tube Condenser Work in A Refrigerator?

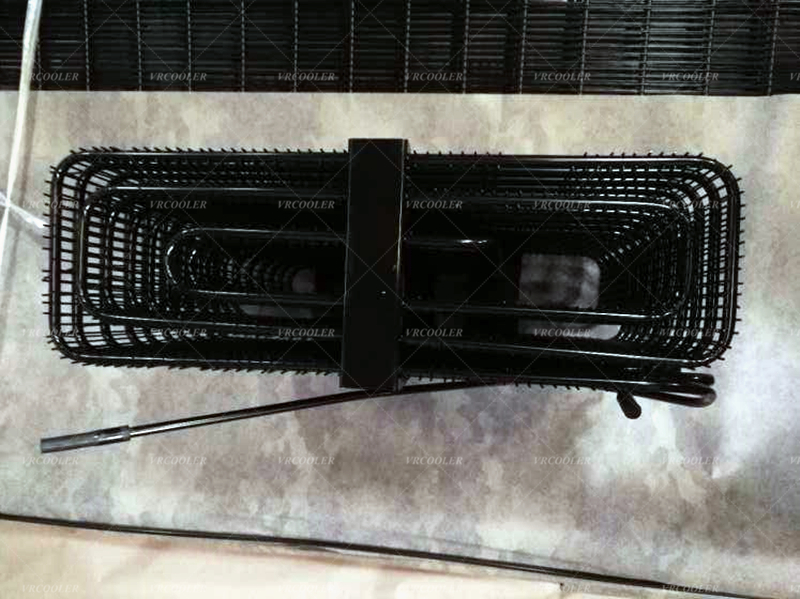

A wire‑on‑tube condenser is the rear‑mounted heat‑rejection component widely used on household refrigerators.

Working principle

1. High‑pressure hot refrigerant inflow

Hot, high‑pressure gaseous refrigerant flows out of the compressor and enters the serpentine refrigerant tube of the wire‑on‑tube condenser. The tube is usually steel.

2. Heat transfer from tube to spot‑welded steel wires

Many thin steel wires are resistance‑spot welded perpendicularly onto both sides of the refrigerant tube. These wires act as extended heat‑dissipating fins, greatly enlarging the total heat‑exchange surface area. Heat conducts from the hot tube wall to all attached wires.

3. Natural air convection dissipates heat

No fan is required for most wire‑on‑tube condensers. Surrounding ambient air flows by natural convection: warm air rises and moves away from the hot tube‑and‑wire assembly, while cooler room air takes its place. Heat is released into the kitchen air.

4. Refrigerant phase change: gas condenses to liquid

As heat continuously escapes, the high‑pressure refrigerant inside the tube cools down and condenses from superheated vapor into high‑pressure sub‑cooled liquid refrigerant.

5. Liquid refrigerant flows onward

The condensed liquid refrigerant leaves the condenser and travels toward the capillary tube / expansion device, to continue the refrigeration cycle.

Key characteristics

- Cooling mode: natural convection (passive cooling), no fan noise

- Structure: steel serpentine tube + spot‑welded steel wire fins, low‑cost, robust, easy to manufacture

- Mounting: usually fitted on the back outer wall of fridge cabinets

- Drawback: performance drops if dust, grease or cobwebs cover the wire surfaces (heat dissipation worsens, compressor runs longer)
