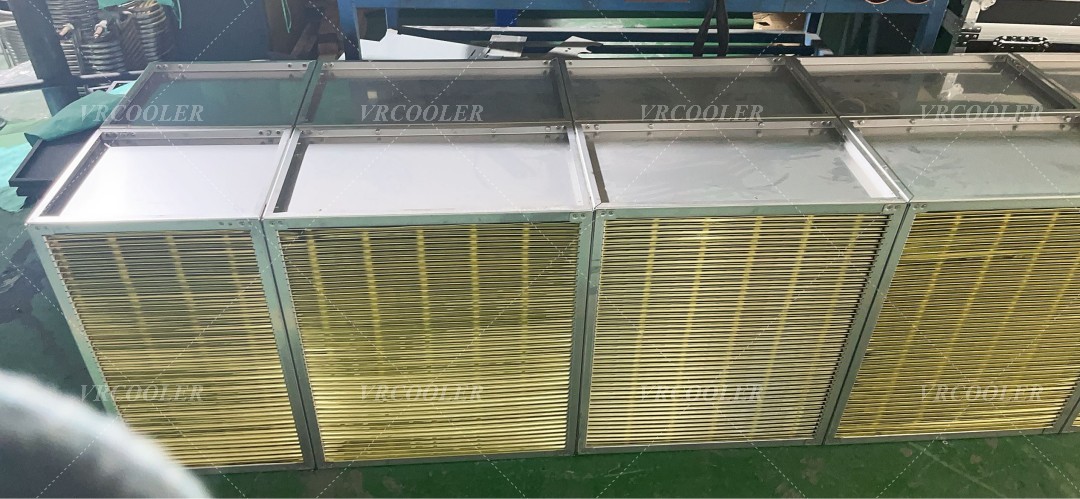

Hexagonal Counterflow Heat Exchanger for Fish Farms

A hexagonal counterflow heat exchanger is a compact heat-exchange unit in which the hot and cold fluids flow in opposite directions (counterflow configuration) through a hexagonally arranged channel or plate structure.

This geometry maximizes the effective heat-transfer area while maintaining uniform flow distribution, resulting in higher thermal efficiency compared with traditional parallel-flow or round-tube designs.

In fish farm applications, the exchanger is typically used to transfer heat between:

• Process water and heating water (boilers, heat pumps, waste heat)

• Warm discharge water and incoming cold makeup water

• Geothermal or solar thermal loops and culture tanks

Why Counterflow Design Matters in Aquaculture

The counterflow arrangement is particularly advantageous for fish farming because it allows:

• Closer approach temperatures, enabling precise water temperature control

• Higher logarithmic mean temperature difference (LMTD), improving heat recovery efficiency

• Lower energy consumption, reducing operational costs

This is essential in aquaculture environments where even small temperature deviations can stress fish and affect productivity.

Advantages of Hexagonal Geometry for Fish Farms

1. High Heat Transfer Efficiency

The hexagonal structure increases surface-to-volume ratio and promotes controlled turbulence, enhancing convective heat transfer without excessive pressure drop.

2. Compact and Modular Design

Compared with conventional shell-and-tube heat exchangers, the hexagonal counterflow design occupies significantly less footprint—ideal for space-constrained pump rooms or containerized RAS systems.

3. Uniform Flow Distribution

The symmetrical hexagonal channels reduce dead zones and temperature stratification, ensuring consistent water temperature across multiple culture tanks.

4. Corrosion and Biofouling Resistance

Manufactured using materials such as:

• Stainless steel (AISI 316L)

• Titanium

• Duplex stainless steel

These exchangers are well-suited for:

• Seawater fish farms

• Brackish water systems

• High-salinity or biologically active environments

Smooth internal surfaces also reduce biofouling and simplify cleaning.

Typical Applications in Fish Farming

• RAS temperature control for hatcheries and grow-out facilities

• Heat recovery from discharged culture water

• Integration with heat pumps for energy-efficient heating and cooling

• Geothermal or waste-heat utilization

• Seasonal temperature stabilization in cold or extreme climates

Operational Benefits

• Improved fish growth consistency

• Lower mortality and disease risk

• Reduced fuel or electricity consumption

• Stable water temperature year-round

• Long service life with minimal maintenance

Maintenance and Hygiene Considerations

Hexagonal counterflow heat exchangers are designed for aquaculture hygiene standards:

• Easy access for inspection and CIP (Clean-in-Place)

• Minimal crevices that harbor bacteria

• Compatible with standard disinfection protocols

This is especially important for hatcheries and high-density farming systems where water quality is tightly regulated.

Conclusion

The hexagonal counterflow heat exchanger represents a modern, energy-efficient solution for thermal management in fish farms. Its superior heat-transfer performance, compact footprint, and corrosion resistance make it particularly well-suited for both freshwater and marine aquaculture operations.

As fish farming continues to evolve toward higher efficiency and sustainability, adopting advanced heat-exchange technologies such as hexagonal counterflow designs can provide a measurable competitive advantage in operational cost control, fish health, and production stability.
