In steam heat-related machines, heat exchangers play a crucial role in transferring heat between different fluids, typically between steam and another fluid, to achieve specific temperature control or energy transfer. The choice of heat exchanger depends on the application, the temperature requirements, and the specific characteristics of the fluids involved.

Here are some common types of heat exchangers used in steam-related machines:

Shell and Tube Heat Exchanger:

Design: Consists of a bundle of tubes enclosed within a shell. Steam flows through the tubes, while the fluid to be heated or cooled surrounds the tubes in the shell.

Applications: Widely used in various industries due to their versatility. Common in power plants and industrial processes involving steam.

Plate Heat Exchanger:

Design: Composed of multiple thin plates with channels for fluid flow. Steam and the other fluid flow on opposite sides of the plates, facilitating efficient heat transfer.

Applications: Compact and efficient, often used in HVAC systems, industrial processes, and applications requiring heat recovery.

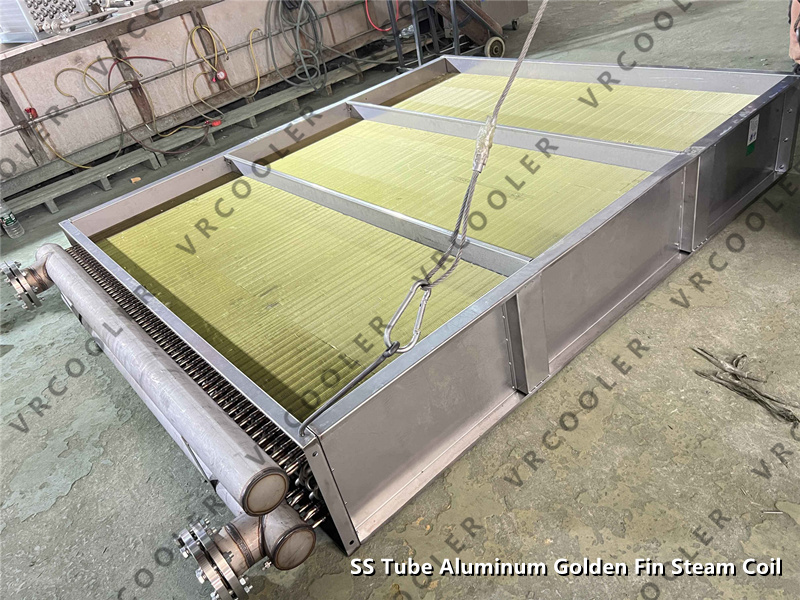

Finned Tube Heat Exchanger:

Design: Tubes with extended surfaces (fins) to increase the heat transfer area. Steam passes through the tubes, and the finned surface enhances heat exchange with the surrounding fluid.

Applications: Commonly used in air heating or cooling applications, such as steam radiators or air-cooled condensers.

Shell and Coil Heat Exchanger:

Design: Consists of a helical coil of tubes enclosed within a shell. Steam flows through the coil, and the fluid to be heated or cooled surrounds the coil.

Applications: Suitable for applications with space constraints or when a coiled design is preferable.

Steam-to-Water Heat Exchanger:

Design: Specifically designed to transfer heat between steam and water. Steam condenses on one side, releasing heat to the water on the other side.

Applications: Commonly used in residential and commercial heating systems, such as steam boilers providing heat to radiators or underfloor heating systems.

Feedwater Heater:

Design: Specifically used in power plants to preheat water before it enters the boiler using extracted steam from the turbine.

Applications: Increases the overall efficiency of power plants by utilizing waste heat to preheat the feedwater.

Economizer:

Design: Typically installed in the flue gas stack of a boiler to recover heat from the hot flue gases and preheat the feedwater.

Applications: Improves the overall efficiency of the boiler system by utilizing waste heat before it is released to the atmosphere.

The selection of a heat exchanger for a steam-related machine depends on factors such as the type of application, the temperature and pressure requirements, space constraints, and efficiency considerations. Each type of heat exchanger has its advantages and is chosen based on the specific needs of the steam system.
